G Type 90 Degree

G Type 90 Degree
G Type 90 Degree
PreviousNext
123
Item No. Conductor

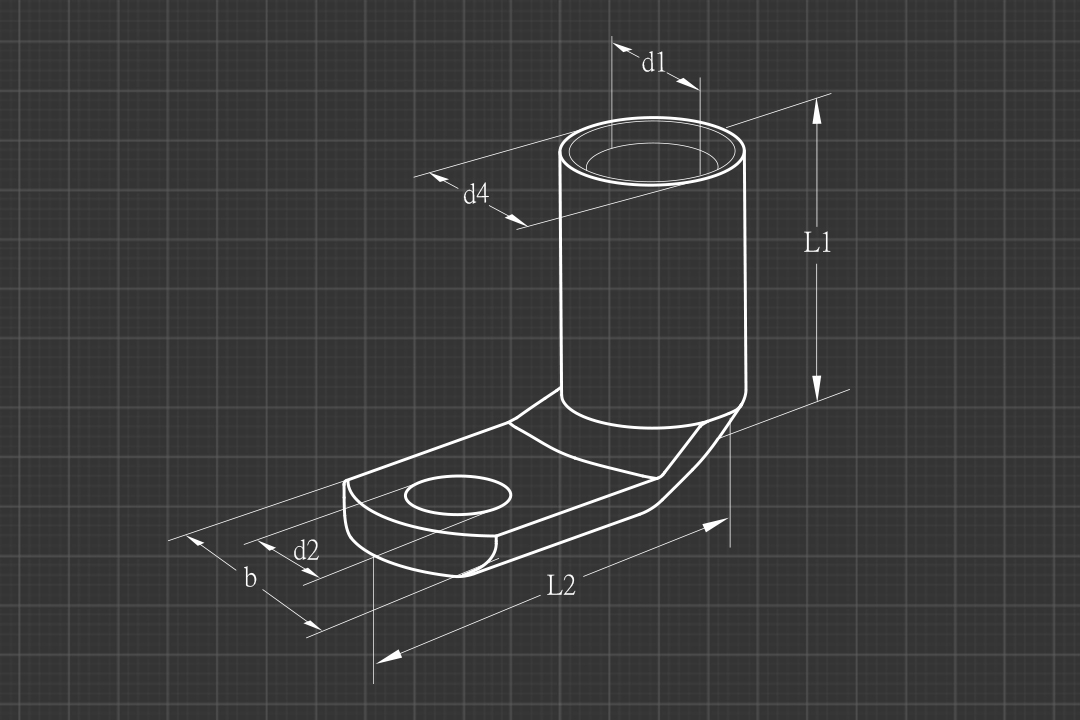

Section		 Bolt d1 d2 d4 b L1 L2
G90-6/5 6 M5 3.5 5.3 6.5 10 14 22.5
G90-6/6 6 M6 3.5 6.4 6.5 12 14 24
G90-6/8 6 M8 3.5 8.4 6.5 15 14 27.5
G90-6/10 6 M10 3.5 10.5 6.5 16 14 29.5
G90-10/5 10 M5 4.5 5.3 7 12 16 23
G90-10/6 10 M6 4.5 6.4 7 12 16 24
G90-10/8 10 M8 4.5 8.4 7 15 16 28
G90-10/10 10 M10 4.5 10.5 7 18 16 29.5
G90-16/5 16 M5 5.5 5.3 8.5 12 20 22.5
G90-16/6 16 M6 5.5 6.4 8.5 14 20 24
G90-16/8 16 M8 5.5 8.4 8.5 15 20 28
G90-16/10 16 M10 5.5 10.5 8.5 18 20 31
G90-16/12 16 M12 5.5 13.2 8.5 19 20 32
G90-25/6 25 M6 6.9 6.4 10 15 21 27.5
G90-25/8 25 M8 6.9 8.4 10 16 21 32.5
G90-25/10 25 M10 6.9 10.5 10 18 21 32.5
G90-25/12 25 M12 6.9 13.2 10 19 21 34
G90-35/6 35 M6 8.5 6.4 12 17 24 28.5
G90-35/8 35 M8 8.5 8.4 12 17 24 34
G90-35/10 35 M10 8.5 10.5 12 20 24 34
G90-35/12 35 M12 8.5 13.2 12 22 24 40.5
G90-50/6 50 M6 10 6.4 14 20 28.5 37
G90-50/8 50 M8 10 8.4 14 20 28.5 40.5
G90-50/10 50 M10 10 10.5 14 20 28.5 40.5
G90-50/12 50 M12 10 13.2 14 23 28.5 42.5
G90-50/16 50 M16 10 17 14 26 28.5 50.5
G90-70/8 70 M8 12 8.4 16.5 24 31 43
G90-70/10 70 M10 12 10.5 16.5 24 31 43
G90-70/12 70 M12 12 13.2 16.5 24 31 44.5
G90-70/16 70 M16 12 17 16.5 28 31 53
G90-70/20 70 M20 12 21 16.5 30 31 59
G90-95/8 95 M8 13.5 8.4 18 26 35 44.5
G90-95/10 95 M10 13.5 10.5 18 26 35 44.5
G90-95/12 95 M12 13.5 13 18 26 35 46.5
G90-95/16 95 M16 13.5 17 18 28 35 52
G90-95/20 95 M20 13.5 21 18 30.5 35 59
G90-120/10 120 M10 15 10.5 19.5 29 35.5 49
G90-120/12 120 M12 15 13 19.5 29 35.5 49
G90-120/16 120 M16 15 17 19.5 29 35.5 55
G90-120/20 120 M20 15 21 19.5 30.5 35.5 61
G90-150/10 150 M10 16.5 10.5 21 31 40 48
G90-150/12 150 M12 16.5 13 21 31 40 51
G90-150/16 150 M16 16.5 17 21 31 40 56
G90-150/20 150 M20 16.5 21 21 34 40 61.5
G90-185/12 185 M12 19 13 24 35 46 58.5
G90-185/16 185 M16 19 17 24 35 46 58.5
G90-185/20 185 M20 19 21 24 35 46 65
G90-240/12 240 M12 21 13 26 40 50 54
G90-240/16 240 M16 21 17 26 40 50 6
G90-240/20. 240 M20 21 21 26 40 50 67.8
G90-300/12 300 M12 23.5 13 29.5 43 59 74.5
G90-300/16 300 M16 23.5 17 29.5 43 59 64
G90-300/20 300 M20 23.5 21 29.5 43 59 70.5
G90-400/12 400 M12 27 13 34 49 62 79
G90-400/16 400 M16 27 17 34 49 62 68.5
G90-400/20 400 M20 27 21 34 49 62 75
