Spade Terminal

All Products > Insulated Terminals > Spade Terminal > Uninsulated

Uninsulated

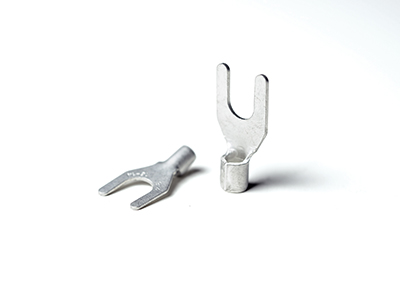

Spade Terminal - Uninsulated

Material: 99.9% electrolytic copper
Barrel Type: Brazed Seam
Operating Temperature: 80°C (determined by the insulation material)
Voltage Withstand: copper 600V
Flammability: UL-94 V0
Surface: Tin-plated
UL, RoHS, REACH certified products

Other Products

Insulated

Insulated Terminals

Ring Terminal

Spade Terminal

Pin Terminal

Flanged Spade

Locking Spade

Blade Terminal

Hooked Blade

Butt Splice

Piggy Back Disconnector

Male Disconnector

Female Disconnector

Male Bullet Disconnector

Female Bullet Disconnector

Fully Insulated Bullet Disconnector

Quick Splice

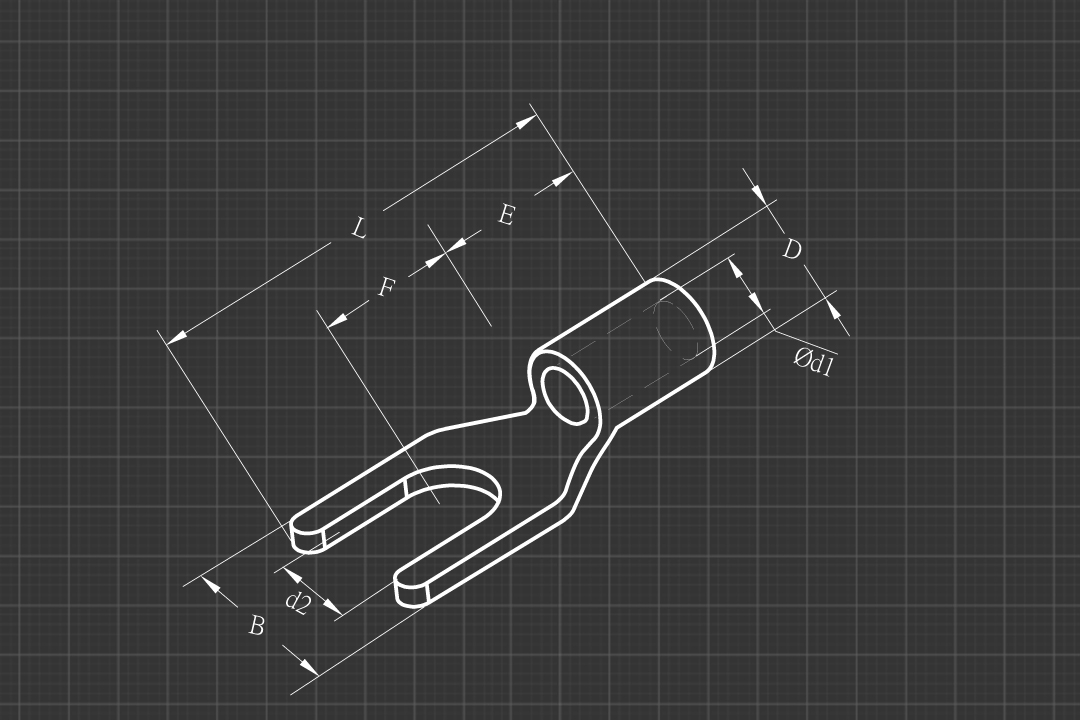

Item No.	Wire Range AWG/mm²	Stud Size	b	L	F	E	D	d1
Item No.	Wire Range AWG/mm²	d2	b	L	F	E	D	d1
Y1-3.2NB	22~16 AWG 0.5~1.5mm²	#4(3.2)	.224(5.7)	.618(15.7)	.256(6.5)	.177 (4.5)	.134 (3.4)	.075(1.9)
Y1-3SNB	22~16 AWG 0.5~1.5mm²	#6 (3.7)	.224(5.7)	.618(15.7)	.256(6.5)	.177 (4.5)	.134 (3.4)	.075(1.9)
Y1-3NB	22~16 AWG 0.5~1.5mm²	#6 (3.7)	.252(6.4)	.618(15.7)	.256(6.5)	.177 (4.5)	.134 (3.4)	.075(1.9)
Y1-4SNB	22~16 AWG 0.5~1.5mm²	#8 (4.3)	.252(6.4)	.618(15.7)	.256(6.5)	.177 (4.5)	.134 (3.4)	.075(1.9)
Y1-4NB	22~16 AWG 0.5~1.5mm²	#8 (4.3)	.283(7.2)	.618(15.7)	.256(6.5)	.177 (4.5)	.134 (3.4)	.075(1.9)
Y1-4LNB	22~16 AWG 0.5~1.5mm²	#8 (4.3)	.319(8.1)	.618(15.7)	.256(6.5)	.177 (4.5)	.134 (3.4)	.075(1.9)
Y1-5NB	22~16 AWG 0.5~1.5mm²	#10 (5.3)	.319(8.1)	.618(15.7)	.256(6.5)	.177 (4.5)	.134 (3.4)	.075(1.9)
Y1-6NB	22~16 AWG 0.5~1.5mm²	1/4 (6.4)	.433(11.0)	.807(20.5)	.394(10.0)	.177 (4.5)	.134 (3.4)	.075(1.9)
Y2-3.2SNB	16~14AWG 1.5~2.5mm²	#4(3.2)	.224(5.7)	.618(15.7)	.256(6.5)	.177 (4.5)	.165 (4.2)	.102(2.6)
Y2-3SNB	16~14AWG 1.5~2.5mm²	#6 (3.7)	.224(5.7)	.618(15.7)	.256(6.5)	.177 (4.5)	.165 (4.2)	.102(2.6)
Y2-3NB	16~14AWG 1.5~2.5mm²	#6 (3.7)	.252(6.4)	.618(15.7)	.256(6.5)	.177 (4.5)	.165 (4.2)	.102(2.6)
Y2-4SNB	16~14AWG 1.5~2.5mm²	#8 (4.3)	.252(6.4)	.618(15.7)	.256(6.5)	.177 (4.5)	.165 (4.2)	.102(2.6)
Y2-4NB	16~14AWG 1.5~2.5mm²	#8 (4.3)	.283(7.2)	.618(15.7)	.256(6.5)	.177 (4.5)	.165 (4.2)	.102(2.6)
Y2-4LNB	16~14AWG 1.5~2.5mm²	#8 (4.3)	.319(8.1)	.618(15.7)	.256(6.5)	.177 (4.5)	.165 (4.2)	.102(2.6)
Y2-5NB	16~14AWG 1.5~2.5mm²	#10 (5.3)	.319(8.1)	.618(15.7)	.256(6.5)	.177 (4.5)	.165 (4.2)	.102(2.6)
Y2-6NB	16~14AWG 1.5~2.5mm²	1/4 (6.4)	.433(11.0)	.807(20.5)	.394(10.0)	.177 (4.5)	.165 (4.2)	.102(2.6)
Y5-3NB	12~10 AWG 4~6mm²	#6(3.7)	.322(8.2)	.717(18.2)	.283(7.2)	.256 (6.5)	.220 (5.6)	.142 (3.6)
Y5-3MNB	12~10 AWG 4~6mm²	#6(3.7)	.354(9.0)	.717(18.2)	.283(7.2)	.256 (6.5)	.220 (5.6)	.142 (3.6)
Y5-4SNB	12~10 AWG 4~6mm²	#8(4.3)	.283(7.2)	.717(18.2)	.283(7.2)	.256 (6.5)	.220 (5.6)	.142 (3.6)
Y5-4NB	12~10 AWG 4~6mm²	#8(4.3)	.322(8.2)	.717(18.2)	.283(7.2)	.256 (6.5)	.220 (5.6)	.142 (3.6)
Y5-4MNB	12~10 AWG 4~6mm²	#8(4.3)	.354(9.0)	.717(18.2)	.283(7.2)	.256 (6.5)	.220 (5.6)	.142 (3.6)
Y5-5NB	12~10 AWG 4~6mm²	#10(5.3)	.354(9.0)	.717(18.2)	.283(7.2)	.256 (6.5)	.220 (5.6)	.142 (3.6)
Y5-6NB	12~10 AWG 4~6mm²	1/4(6.4)	.472(12.0)	.945(24.0)	.433(11.0)	.256 (6.5)	.220 (5.6)	.142 (3.6)

Item No.	Wire Range AWG/mm²	Stud Size	b	L	F	E	D	d1
Item No.	Wire Range AWG/mm²	d2	b	L	F	E	D	d1
C3-1NB	22~16 AWG 0.5~1.5mm²	#4(3.2)	.236(6.0)	.543(13.8)	.236(6.0)	.197(5.0)	.138(3.5)	.075(1.9)
C3.5-1NB	22~16 AWG 0.5~1.5mm²	#6(3.7)	.236(6.0)	.543(13.8)	.236(6.0)	.197(5.0)	.138(3.5)	.075(1.9)
C4-1NB	22~16 AWG 0.5~1.5mm²	#8(4.3)	.268(6.8)	.622(15.8)	.276(7.0)	.197(5.0)	.138(3.5)	.075(1.9)
C5-1NB	22~16 AWG 0.5~1.5mm²	#10(5.3)	.394(10.0)	.701(17.8)	.315(8.0)	.197(5.0)	.138(3.5)	.075(1.9)
C6-1NB	22~16 AWG 0.5~1.5mm²	1/4(6.5)	.433(11.0)	.799(20.3)	.394(10.0)	.197(5.0)	.138(3.5)	.075(1.9)
C3-2.5NB	16~14AWG 1.5~2.5mm²	#4(3.2)	.236(6.0)	.543(13.8)	.236(6.0)	.197(5.0)	.161(4.1)	.102(2.6)
C3.5-2.5NB	16~14AWG 1.5~2.5mm²	#6(3.7)	.268(6.8)	.543(13.8)	.276(7.0)	.197(5.0)	.161(4.1)	.102(2.6)
C4-2.5NB	16~14AWG 1.5~2.5mm²	#8(4.3)	.268(6.8)	.622(15.8)	.276(7.0)	.197(5.0)	.161(4.1)	.102(2.6)
C5-2.5NB	16~14AWG 1.5~2.5mm²	#10(5.3)	.394(10.0)	.740(18.8)	.354(9.0)	.197(5.0)	.161(4.1)	.102(2.6)
C6-2.5NB	16~14AWG 1.5~2.5mm²	1/4(6.5)	.433(11.0)	.839(21.3)	.433(11.0)	.197(5.0)	.161(4.1)	.102(2.6)
C4-6NB	12~10 AWG 4~6mm2	#8(4.3)	.315(8.0)	.709(18.0)	.315(8.0)	.236(6.0)	.228(5.8)	.142 (3.6)
C5-6NB	12~10 AWG 4~6mm2	#10(5.3)	.394(10.0)	.787(20.0)	.354(9.0)	.236(6.0)	.228(5.8)	.142 (3.6)
C6-6NB	12~10 AWG 4~6mm2	1/4(6.5)	.433(11.0)	.846(21.5)	.394(10.0)	.236(6.0)	.228(5.8)	.142 (3.6)
C8-6NB	12~10 AWG 4~6mm2	5/16(8.4)	.551(14.0)	1.024(26.0)	.512(13.0)	.236(6.0)	.228(5.8)	.142 (3.6)
C10-6NB	12~10 AWG 4~6mm2	3/8(10.5)	.709(18.0)	1.181(30.0)	.591(15.0)	.236(6.0)	.228(5.8)	.142 (3.6)
