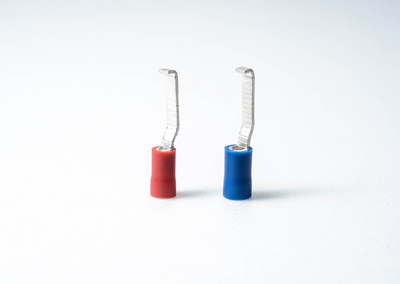

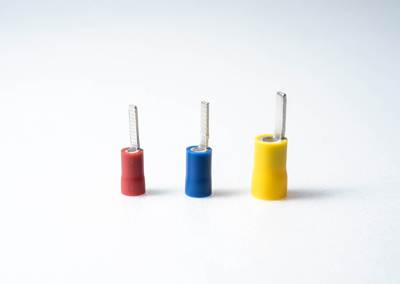

Blade Terminal

Blade Terminals provide a flat conductive surface for quick and easy connections, often used in automotive, electronics, industrial equipment, household appliances, and marine applications.

Material: 99.9% electrolytic copper / insulation options PVC, PC, Nylon
Operating Temperature: 80°C (determined by the insulation material)
Voltage Withstand: copper 600V
Flammability: UL-94 V0
Surface: Tin-plated
RoHS, REACH certified products

Un-Insulated
PVC Flared
Nylon Molded
PC Molded
PVC Molded

Insulated Terminals

Ring Terminal

Spade Terminal

Pin Terminal

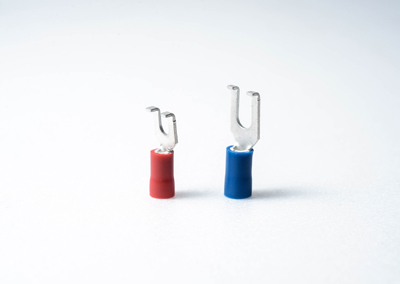

Flanged Spade

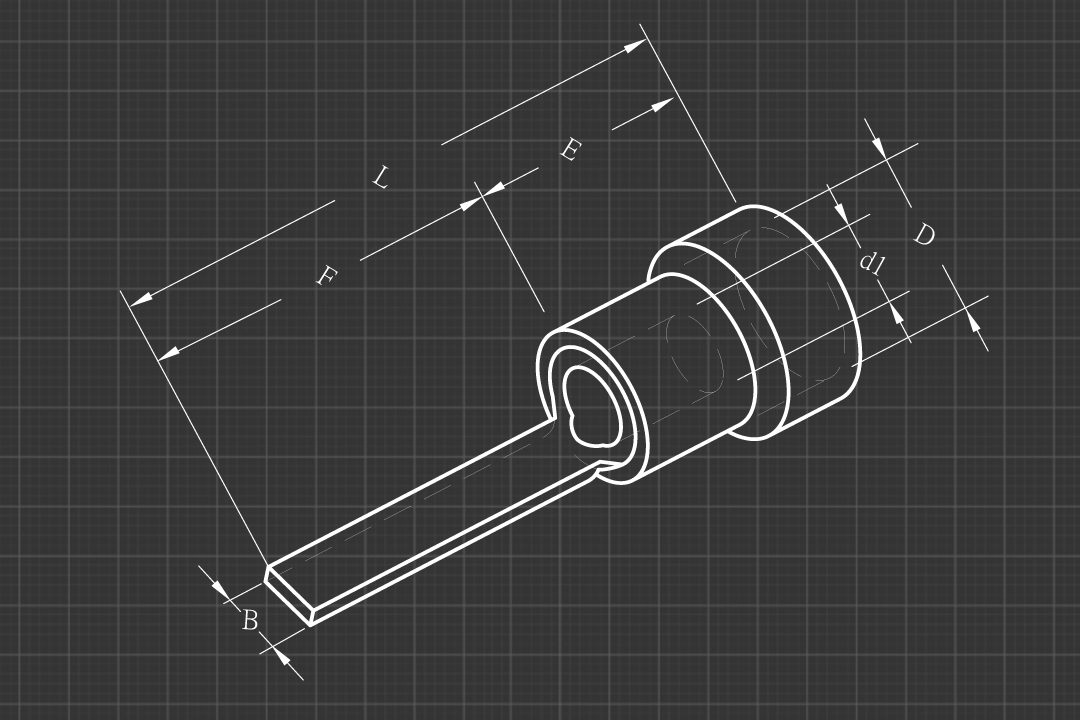

Item No.	Wire Range AWG/mm²	b	L	F	E	D	d1
Item No.	Wire Range AWG/mm²	b	L	F	E	D	d1
BT1-9	22~16 AWG 0.5~1.5mm²	.110(2.8)	.531(13.5)	9	.177(4.5)	.134(3.4)	.075(1.9)
BT1-10	22~16 AWG 0.5~1.5mm²	.087(2.2)	.591(15.0)	10.5	.177(4.5)	.134(3.4)	.075(1.9)
BT1-13	22~16 AWG 0.5~1.5mm²	.091(2.3)	.689(17.5)	13	.177(4.5)	.134(3.4)	.075(1.9)
BT1-14	22~16 AWG 0.5~1.5mm²	.118(3.0)	.748(19.0)	14.5	.177(4.5)	.134(3.4)	.075(1.9)
BT1-18	22~16 AWG 0.5~1.5mm²	.087(2.2)	.906(23.0)	18.5	.177(4.5)	.134(3.4)	.075(1.9)
BT2-9	16~14 AWG 1.5~2.5mm²	.110(2.8)	.531(13.5)	9	.177(4.5)	.165(4.2)	.102(2.6)
BT2-10	16~14 AWG 1.5~2.5mm²	.087(2.2)	.591(15.0)	10.5	.177(4.5)	.165(4.2)	.102(2.6)
BT2-13	16~14 AWG 1.5~2.5mm²	.087(2.2)	.689(17.5)	13	.177(4.5)	.165(4.2)	.102(2.6)
BT2-16	16~14 AWG 1.5~2.5mm²	.110(2.8)	.807(20.5)	16	.177(4.5)	.165(4.2)	.102(2.6)
BT2-18	16~14 AWG 1.5~2.5mm²	.087(2.2)	.906(23.0)	18.5	.177(4.5)	.165(4.2)	.102(2.6)
BT5-10	12~10 AWG 4~6mm²	.110(2.8)	.657(16.7)	10.5	.244(6.2)	.220(5.6)	.142 (3.6)
BT5-18	12~10 AWG 4~6mm²	.177(4.5)	.961(24.4)	18.2	.244(6.2)	.220(5.6)	.142 (3.6)

Item No.	Wire Range AWG/mm²	b	L	F	E	D	d1
Item No.	Wire Range AWG/mm²	b	L	F	E	D	d1
VBT1-9	22~16 AWG 0.5~1.5mm²	.110(2.8)	.728(18.5)	9	.374(9.5)	.157(4.0)	.075(1.9)
VBT1-10	22~16 AWG 0.5~1.5mm²	.087(2.2)	.787(20.0)	10.5	.374(9.5)	.157(4.0)	.075(1.9)
VBT1-13	22~16 AWG 0.5~1.5mm²	.091(2.3)	.886(22.5)	13	.374(9.5)	.157(4.0)	.075(1.9)
VBT1-14	22~16 AWG 0.5~1.5mm²	.118(3.0)	.945(24.0)	14.5	.374(9.5)	.157(4.0)	.075(1.9)
VBT1-18	22~16 AWG 0.5~1.5mm²	.087(2.2)	1.102(28.0)	18.5	.374(9.5)	.157(4.0)	.075(1.9)
VBT2-9	16~14 AWG 1.5~2.5mm²	.110(2.8)	.748(19.0)	9	.394(10.0)	.177(4.5)	.102(2.6)
VBT2-10	16~14 AWG 1.5~2.5mm²	.087(2.2)	.807(20.5)	10.5	.394(10.0)	.177(4.5)	.102(2.6)
VBT2-13	16~14 AWG 1.5~2.5mm²	.087(2.2)	.906(23.0)	13	.394(10.0)	.177(4.5)	.102(2.6)
VBT2-16	16~14 AWG 1.5~2.5mm²	.110(2.8)	1.024(26.0)	16	.394(10.0)	.177(4.5)	.102(2.6)
VBT2-18	16~14 AWG 1.5~2.5mm²	.087(2.2)	1.122(28.5)	18.5	.394(10.0)	.177(4.5)	.102(2.6)
VBT5-10	12~10 AWG 4~6mm²	.110(2.8)	.925(23.5)	10.5	.512(13.0)	.252(6.4)	.142(3.6)
VBT5-18	12~10 AWG 4~6mm²	.177(4.5)	1.228(31.2)	18.2	.512(13.0)	.252(6.4)	.142(3.6)

Item No.	Wire Range AWG/mm²	b	L	F	E	D	d1
Item No.	Wire Range AWG/mm²	b	L	F	E	D	d1
INBT1-9	22~16 AWG 0.5~1.5mm²	.110(2.8)	.799(20.3)	9	.445(11.3)	0.169(4.3)	.075(1.9)
INBT1-10	22~16 AWG 0.5~1.5mm²	.087(2.2)	.858(21.8)	10.5	.445(11.3)	0.169(4.3)	.075(1.9)
INBT1-11	22~16 AWG 0.5~1.5mm²	.075(1.9)	.894(22.7)	11.4	.445(11.3)	0.169(4.3)	.075(1.9)
INBT1-13	22~16 AWG 0.5~1.5mm²	.091(2.3)	.957(24.3)	13	.445(11.3)	0.169(4.3)	.075(1.9)
INBT1-13L	22~16 AWG 0.5~1.5mm²	.118(3.0)	.957(24.3)	13	.445(11.3)	0.169(4.3)	.075(1.9)
INBT1-14	22~16 AWG 0.5~1.5mm²	.118(3.0)	1.016(25.8)	14.5	.445(11.3)	0.169(4.3)	.075(1.9)
INBT1-17	22~16 AWG 0.5~1.5mm²	.091(2.3)	1.106(28.1)	26.8	.445(11.3)	0.169(4.3)	.075(1.9)
INBT1-18	22~16 AWG 0.5~1.5mm²	.087(2.2)	1.173(29.8)	18.5	.445(11.3)	0.169(4.3)	.075(1.9)
INBT2-9	16~14 AWG 1.5~2.5mm²	.110(2.8)	.799(20.3)	9	.445(11.3)	.197(5.0)	.102(2.6)
INBT2-10	16~14 AWG 1.5~2.5mm²	.087(2.2)	.858(21.8)	10.4	.445(11.3)	.197(5.0)	.102(2.6)
INBT2-11	16~14 AWG 1.5~2.5mm²	.098(2.5)	.913(23.2)	11.8	.445(11.3)	.197(5.0)	.102(2.6)
INBT2-13	16~14 AWG 1.5~2.5mm²	.087(2.2)	.957(24.3)	12.9	.445(11.3)	.197(5.0)	.102(2.6)
INBT2-13L	16~14 AWG 1.5~2.5mm²	.139(3.54)	.957(24.3)	12.9	.445(11.3)	.197(5.0)	.102(2.6)
INBT2-16	16~14 AWG 1.5~2.5mm²	.110(2.8)	1.075(27.3)	15.9	.445(11.3)	.197(5.0)	.102(2.6)
INBT2-17	16~14 AWG 1.5~2.5mm²	.098(2.5)	1.122(28.5)	17.1	.445(11.3)	.197(5.0)	.102(2.6)
INBT2-18	16~14 AWG 1.5~2.5mm²	.087(2.2)	1.173(29.8)	18.4	.445(11.3)	.197(5.0)	.102(2.6)
INBT5-10	12~10 AWG 4~6mm²	.110(2.8)	.970(24.65)	10.5	.557(14.15)	.256(6.5)	.142(3.6)
INBT5-13	12~10 AWG 4~6mm²	.157(4.0)	1.069(27.15)	13	.557(14.15)	.256(6.5)	.142(3.6)
INBT5-16	12~10 AWG 4~6mm²	.118(3.0)	1.203(30.55)	16.4	.557(14.15)	.256(6.5)	.142(3.6)
INBT5-18S	12~10 AWG 4~6mm²	.118(3.0)	1.274(32.35)	18.2	.557(14.15)	.256(6.5)	.142(3.6)
INBT5-18	12~10 AWG 4~6mm²	.177(4.5)	1.274(32.35)	18.2	.557(14.15)	.256(6.5)	.142(3.6)

Item No.	Wire Range AWG/mm²	b	L	F	E	D	d1
Item No.	Wire Range AWG/mm²	b	L	F	E	D	d1
IMBT1-9	22~16 AWG 0.5~1.5mm²	.110(2.8)	.799(20.3)	9	.445(11.3)	0.169(4.3)	.075(1.9)
IMBT1-10	22~16 AWG 0.5~1.5mm²	.087(2.2)	.858(21.8)	10.5	.445(11.3)	0.169(4.3)	.075(1.9)
IMBT1-11	22~16 AWG 0.5~1.5mm²	.075(1.9)	.894(22.7)	11.4	.445(11.3)	0.169(4.3)	.075(1.9)
IMBT1-13	22~16 AWG 0.5~1.5mm²	.091(2.3)	.957(24.3)	13	.445(11.3)	0.169(4.3)	.075(1.9)
IMBT1-13L	22~16 AWG 0.5~1.5mm²	.118(3.0)	.957(24.3)	13	.445(11.3)	0.169(4.3)	.075(1.9)
IMBT1-14	22~16 AWG 0.5~1.5mm²	.118(3.0)	1.016(25.8)	14.5	.445(11.3)	0.169(4.3)	.075(1.9)
IMBT1-17	22~16 AWG 0.5~1.5mm²	.091(2.3)	1.106(28.1)	26.8	.445(11.3)	0.169(4.3)	.075(1.9)
IMBT1-18	22~16 AWG 0.5~1.5mm²	.087(2.2)	1.173(29.8)	18.5	.445(11.3)	0.169(4.3)	.075(1.9)
IMBT2-9	16~14 AWG 1.5~2.5mm²	.110(2.8)	.799(20.3)	9	.445(11.3)	.197(5.0)	.102(2.6)
IMBT2-10	16~14 AWG 1.5~2.5mm²	.087(2.2)	.858(21.8)	10.4	.445(11.3)	.197(5.0)	.102(2.6)
IMBT2-11	16~14 AWG 1.5~2.5mm²	.098(2.5)	.913(23.2)	11.8	.445(11.3)	.197(5.0)	.102(2.6)
IMBT2-13	16~14 AWG 1.5~2.5mm²	.087(2.2)	.957(24.3)	12.9	.445(11.3)	.197(5.0)	.102(2.6)
IMBT2-13L	16~14 AWG 1.5~2.5mm²	.139(3.54)	.957(24.3)	12.9	.445(11.3)	.197(5.0)	.102(2.6)
IMBT2-16	16~14 AWG 1.5~2.5mm²	.110(2.8)	1.075(27.3)	15.9	.445(11.3)	.197(5.0)	.102(2.6)
IMBT2-17	16~14 AWG 1.5~2.5mm²	.098(2.5)	1.122(28.5)	17.1	.445(11.3)	.197(5.0)	.102(2.6)
IMBT2-18	16~14 AWG 1.5~2.5mm²	.087(2.2)	1.173(29.8)	18.4	.445(11.3)	.197(5.0)	.102(2.6)
IMBT5-10	12~10 AWG 4~6mm²	.110(2.8)	.970(24.65)	10.5	.557(14.15)	.256(6.5)	.142(3.6)
IMBT5-13	12~10 AWG 4~6mm²	.157(4.0)	1.069(27.15)	13	.557(14.15)	.256(6.5)	.142(3.6)
IMBT5-16	12~10 AWG 4~6mm²	.118(3.0)	1.203(30.55)	16.4	.557(14.15)	.256(6.5)	.142(3.6)
IMBT5-18S	12~10 AWG 4~6mm²	.118(3.0)	1.274(32.35)	18.2	.557(14.15)	.256(6.5)	.142(3.6)
IMBT5-18	12~10 AWG 4~6mm²	.177(4.5)	1.274(32.35)	18.2	.557(14.15)	.256(6.5)	.142(3.6)

Item No.	Wire Range AWG/mm²	b	L	F	E	D	d1
Item No.	Wire Range AWG/mm²	b	L	F	E	D	d1
IVBT1-9	22~16 AWG 0.5~1.5mm²	.110(2.8)	.799(20.3)	9	.445(11.3)	.157(4.0)	.075(1.9)
IVBT1-10	22~16 AWG 0.5~1.5mm²	.087(2.2)	.858(21.8)	10.5	.445(11.3)	.157(4.0)	.075(1.9)
IVBT1-11	22~16 AWG 0.5~1.5mm²	.075(1.9)	.894(22.7)	11.4	.445(11.3)	.157(4.0)	.075(1.9)
IVBT1-13	22~16 AWG 0.5~1.5mm²	.091(2.3)	.957(24.3)	13	.445(11.3)	.157(4.0)	.075(1.9)
IVBT1-13L	22~16 AWG 0.5~1.5mm²	.118(3.0)	.957(24.3)	13	.445(11.3)	.157(4.0)	.075(1.9)
IVBT1-14	22~16 AWG 0.5~1.5mm²	.118(3.0)	1.016(25.8)	14.5	.445(11.3)	.157(4.0)	.075(1.9)
IVBT1-17	22~16 AWG 0.5~1.5mm²	.091(2.3)	1.106(28.1)	26.8	.445(11.3)	.157(4.0)	.075(1.9)
IVBT1-18	22~16 AWG 0.5~1.5mm²	.087(2.2)	1.173(29.8)	18.5	.445(11.3)	.157(4.0)	.075(1.9)
IVBT2-9	16~14 AWG 1.5~2.5mm²	.110(2.8)	.799(20.3)	9	.445(11.3)	.177(4.5)	.102(2.6)
IVBT2-10	16~14 AWG 1.5~2.5mm²	.087(2.2)	.858(21.8)	10.4	.445(11.3)	.177(4.5)	.102(2.6)
IVBT2-11	16~14 AWG 1.5~2.5mm²	.098(2.5)	.913(23.2)	11.8	.445(11.3)	.177(4.5)	.102(2.6)
IVBT2-13	16~14 AWG 1.5~2.5mm²	.087(2.2)	.957(24.3)	12.9	.445(11.3)	.177(4.5)	.102(2.6)
IVBT2-13L	16~14 AWG 1.5~2.5mm²	.139(3.54)	.957(24.3)	12.9	.445(11.3)	.177(4.5)	.102(2.6)
IVBT2-16	16~14 AWG 1.5~2.5mm²	.110(2.8)	1.075(27.3)	15.9	.445(11.3)	.177(4.5)	.102(2.6)
IVBT2-17	16~14 AWG 1.5~2.5mm²	.098(2.5)	1.122(28.5)	17.1	.445(11.3)	.177(4.5)	.102(2.6)
IVBT2-18	16~14 AWG 1.5~2.5mm²	.087(2.2)	1.173(29.8)	18.4	.445(11.3)	.177(4.5)	.102(2.6)
IVBT5-10	12~10 AWG 4~6mm²	.110(2.8)	.970(24.65)	10.5	.557(14.15)	.252(6.4)	.142(3.6)
IVBT5-13	12~10 AWG 4~6mm²	.157(4.0)	1.069(27.15)	13	.557(14.15)	.252(6.4)	.142(3.6)
IVBT5-16	12~10 AWG 4~6mm²	.118(3.0)	1.203(30.55)	16.4	.557(14.15)	.252(6.4)	.142(3.6)
IVBT5-18S	12~10 AWG 4~6mm²	.118(3.0)	1.274(32.35)	18.2	.557(14.15)	.252(6.4)	.142(3.6)
IVBT5-18	12~10 AWG 4~6mm²	.177(4.5)	1.274(32.35)	18.2	.557(14.15)	.252(6.4)	.142(3.6)
