Uninsulated Bootlace Ferrules

All Products > Cord-End Terminals > Un-Insulated Type

Un-Insulated Type

Un-Insulated Type
Un-Insulated Type
PreviousNext
123

Uninsulated bootlace ferrules terminals are designed for terminating multiple cables in connector blocks, with dimensions compliant with DIN 46228, Part 4.

Materials: 99.9% electrolytic copper
Operating Temperature: -20°C to +105°C.
Flammability: UL-94 V2
UL Approved (E488241, E182951), RoHS compliant

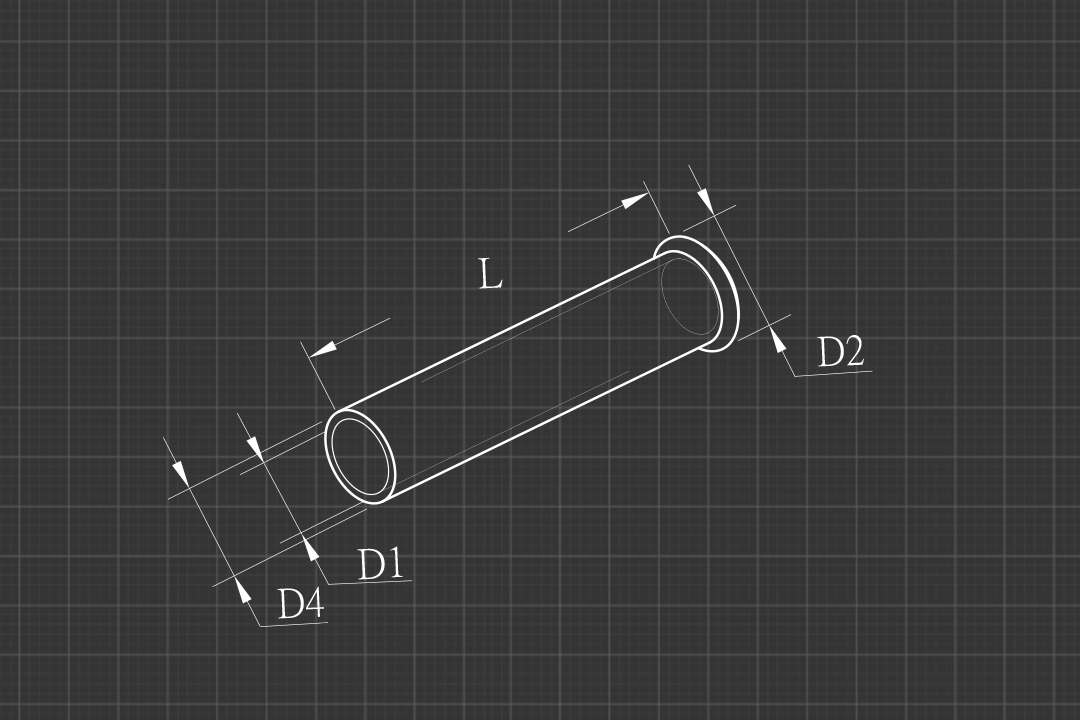

Item No. Wire Range L d1 d2 d4
LN-005006 0.5 6 1.0 1.9 1.3
LN-005008 0.5 8 1.0 1.9 1.3
LN-005010 0.5 10 1.0 1.9 1.3
LN-007506 0.75 6 1.2 2.2 1.5
LN-007508 0.75 8 1.2 2.2 1.5
LN-007510 0.75 10 1.2 2.2 1.5
LN-010006 1 6 1.4 2.4 1.7
LN-010008 1 8 1.4 2.4 1.7
LN-010010 1 10 1.4 2.4 1.7
LN-010012 1 12 1.4 2.4 1.7
LN-015007 1.5 7 1.7 2.8 2.0
LN-015010 1.5 10 1.7 2.8 2.0
LN-015012 1.5 12 1.7 2.8 2.0
LN-025007 2.5 7 2.2 3.4 2.5
LN-025008 2.5 8 2.2 3.4 2.5
LN-025010 2.5 10 2.2 3.4 2.5
LN-025012 2.5 12 2.2 3.4 2.5
LN-040008 4 8 2.8 4.0 3.2
LN-040009 4 9 2.8 4.0 3.2
LN-040010 4 10 2.8 4.0 3.2
LN-040012 4 12 2.8 4.0 3.2
LN-040015 4 15 2.8 4.0 3.2
LN-040018 4 18 2.8 4.0 3.2
LN-060010 6 10 3.5 4.7 3.9
LN-060012 6 12 3.5 4.7 3.9
LN-060015 6 15 3.5 4.7 3.9
LN-060018 6 18 3.5 4.7 3.9
LN-100012 10 12 4.5 5.8 4.9
LN-100015 10 15 4.5 5.8 4.9
LN-100018 10 18 4.5 5.8 4.9
LN-160012 16 12 5.8 7.5 6.2
LN-160015 16 15 5.8 7.5 6.2
LN-160018 16 18 5.8 7.5 6.2
LN-250015 25 15 7.3 9.5 7.7
LN-250016 25 16 7.3 9.5 7.7
LN-250018 25 18 7.3 9.5 7.7
LN-250022 25 22 7.3 9.5 7.7
LN-350016 35 16 8.3 10.5 8.7
LN-350018 35 18 8.3 10.5 8.7
LN-350020 35 20 8.3 10.5 8.7
LN-350025 35 25 8.3 10.5 8.7
LN-500018 50 18 10.3 13.0 10.9
LN-500020 50 20 10.3 13.0 10.9
LN-500025 50 25 10.3 13.0 10.9
LN-700022 70 22 13.5 15.5 14.3
LN-700025 70 25 13.5 15.5 14.3
LN-950025 95 25 14.7 17 15.5
LN-950032 95 32 14.7 17 15.5
LN-120030 120 30 16.7 19 17.6
LN-120032 120 32 16.7 19 17.6
LN-120034 120 34 16.7 19 17.6
LN-150032 150 32 19.5 21.5 20.5
LN-150038 150 38 19.5 21.5 20.5
