Flanged Spade Terminal

Flanged Spade
Flanged Spade
PreviousNext
123
Item No. Wire Range

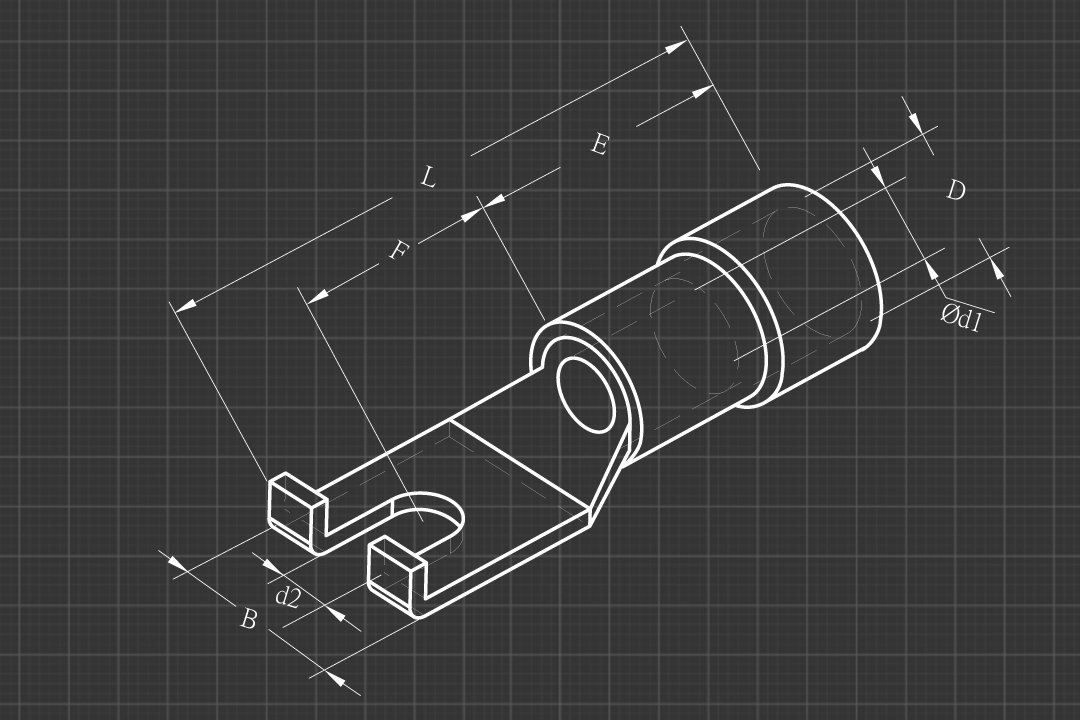

AWG/mm²		 Stud Size b L F E D d1
d2
VFS1-3.5 22~16 AWG
0.5~1.5mm²		 #6(3.8) .303(7.7) .752(19.1) .228(5.8) .374(9.5) .157(4.0) .075(1.9)
VFS2-3.5 16~14 AWG
1.5~2.5mm²		 #6(3.8) .315(8.0) .929(23.6) .263(6.7) .394(10.0) .177(4.5) 0.102(2.6)
VFS2-4 16~14 AWG
1.5~2.5mm²		 #8(4.4) .315(8.0) .929(23.6) .263(6.7) .394(10.0) .177(4.5) 0.102(2.6)
Item No. Wire Range
AWG/mm²		 Stud Size b L F E D d1
d2
INFS1-3.5 22~16 AWG
0.5~1.5mm²		 #6(3.8) .303(7.7) .823(20.9) .228(5.8) .445(11.3) 0.169(4.3) .075(1.9)
INFS2-3.5 16~14 AWG
1.5~2.5mm²		 #6(3.8) .315(8.0) .980(24.9) .263(6.7) .445(11.3) .197(5.0) 0.102(2.6)
INFS2-4 16~14 AWG
1.5~2.5mm²		 #8(4.4) .315(8.0) .980(24.9) .263(6.7) .445(11.3) .197(5.0) 0.102(2.6)
Item No. Wire Range
AWG/mm²		 Stud Size b L F E D d1
d2
IMFS1-3.5 22~16 AWG
0.5~1.5mm²		 #6(3.8) .303(7.7) .823(20.9) .228(5.8) .445(11.3) 0.169(4.3) .075(1.9)
IMFS2-3.5 16~14 AWG
1.5~2.5mm²		 #6(3.8) .315(8.0) .980(24.9) .263(6.7) .445(11.3) .197(5.0) 0.102(2.6)
IMFS2-4 16~14 AWG
1.5~2.5mm²		 #8(4.4) .315(8.0) .980(24.9) .263(6.7) .445(11.3) .197(5.0) 0.102(2.6)
Item No. Wire Range
AWG/mm²		 Stud Size b L F E D d1
d2
IVFS1-3.5 22~16 AWG
0.5~1.5mm²		 #6(3.8) .303(7.7) .823(20.9) .228(5.8) .445(11.3) .157(4.0) .075(1.9)
IVFS 2-3.5 16~14 AWG
1.5~2.5mm²		 #6(3.8) .315(8.0) .980(24.9) .263(6.7) .445(11.3) .177(4.5) 0.102(2.6)
IVFS 2-4 16~14 AWG
1.5~2.5mm²		 #8(4.4) .315(8.0) .980(24.9) .263(6.7) .445(11.3) .177(4.5) 0.102(2.6)
