Quick Splice – Nylon

Previous Next

1 2 3

Quick Splice Connectors made of nylon provide added flexibility and durability, suitable for demanding environments. Ideal for automotive, marine, and industrial wiring for reliable and robust connections.

Materials: Tin-plated electrolytic copper with nylon housing.
Wire Range: 22-10AWG (1.25-5.5mm²).

Nylon

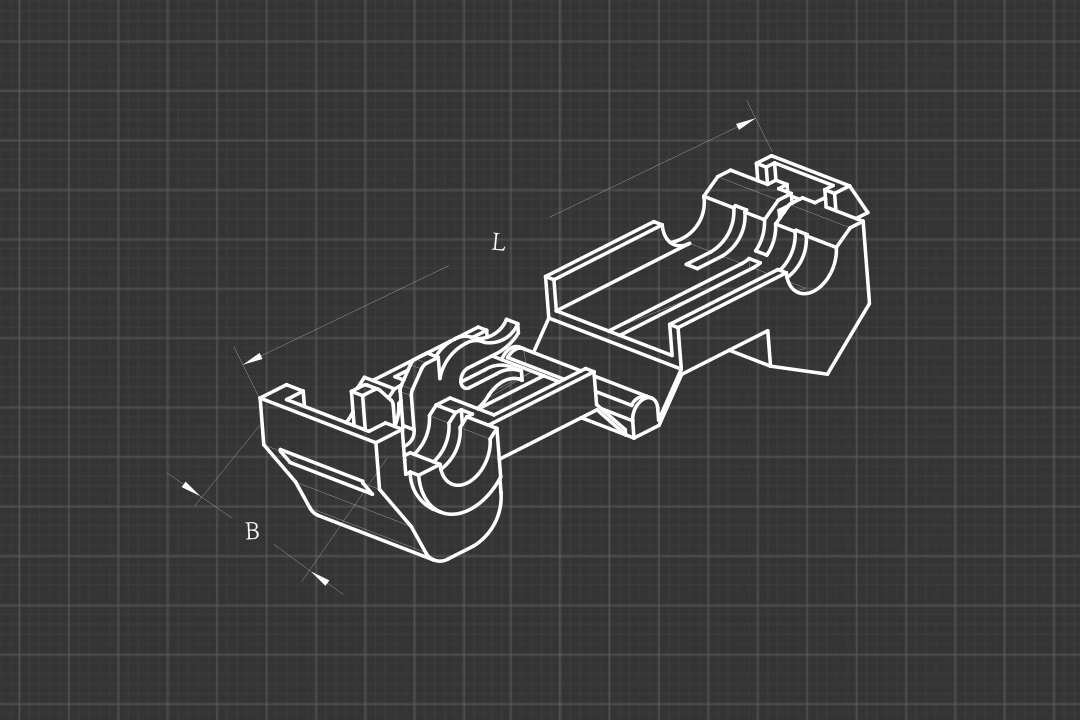

Item No.	Wire Range AWG/mm²	b	L
Item No.	Wire Range AWG/mm²	b	L
696106	22~16 AWG 1.25mm²	.366(9.3)	1.496(38.0)
696107	22~16 AWG 1.25mm²	.677(17.2)	1.181(30.0)
696206	16~14 AWG 2mm²	.366(9.3)	1.496(38.0)
696207	16~14 AWG 2mm²	.677(17.2)	1.181(30.0)
696506	12~10 AWG 5.5mm²	.366(9.3)	1.496(38.0)
696507	12~10 AWG 5.5mm²	.677(17.2)	1.181(30.0)
