Hooked Blade Terminal

Hooked Blade
Hooked Blade
PreviousNext
123

For reliable electrical terminal supply, Marrow Lin provides Hooked Blade Terminals with a hooked design that ensures a secure and stable connection across various applications.

Material: 99.9% electrolytic copper / insulation options PVC, PC, Nylon
Operating Temperature: 80°C (determined by the insulation material)
Voltage Withstand: copper 600V
Flammability: UL-94 V0
Surface: Tin-plated
RoHS, REACH certified products

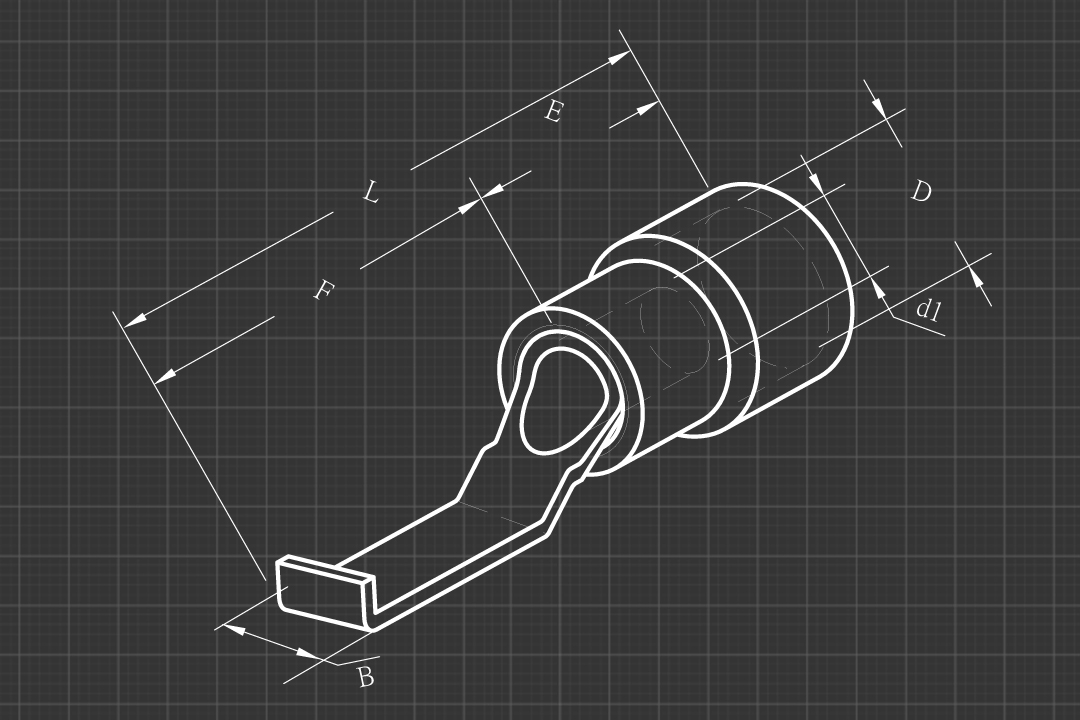

Item No. Wire Range
AWG/mm²		 b L F E D d1
HB1-17 22~16 AWG
0.5~1.5mm²		 .118(3.0) .181(4.6) 17 .177(4.5) .134(3.4) .075(1.9)
HB1-17-4.6 22~16 AWG
0.5~1.5mm²		 .181(4.6) .846(21.5) 17 .177(4.5) .134(3.4) .075(1.9)
HB2-17 16~14 AWG
1.5~2.5mm²		 .118(3.0) .866(22.0) 17.5 .177(4.5) .165(4.2) .102(2.6)
HB2-17-4.6 16~14 AWG
1.5~2.5mm²		 .181(4.6) .866(22.0) 17.5 .177(4.5) .165(4.2) .102(2.6)
HB5-18 12~10 AWG
4~6mm²		 .181(4.6) .933(23.7) 17.5 .244(6.2) .256(6.5) .142(3.6)
Item No. Wire Range
AWG/mm²		 b L F E D d1
VHB1-17 22~16 AWG
0.5~1.5mm²		 .118(3.0) 1.043(26.5) 17 .374(9.5) .157(4.0) .075(1.9)
VHB1-17-4.6 22~16 AWG
0.5~1.5mm²		 .181(4.6) 1.043(26.5) 17 .374(9.5) .157(4.0) .075(1.9)
VHB2-17 16~14 AWG
1.5~2.5mm²		 .118(3.0) 1.063(27.0) 17.5 .374(9.5) .177(4.5) .102(2.6)
VHB2-17-4.6 16~14 AWG
1.5~2.5mm²		 .181(4.6) 1.063(27.0) 17.5 .374(9.5) .177(4.5) .102(2.6)
VHB5-18 12~10 AWG
4~6mm²		 .181(4.6) 1.181(30.0) 17.5 .492(12.5) .252(6.4) .142(3.6)
Item No. Wire Range
AWG/mm²		 b L F E D d1
INHB1-17 22~16 AWG
0.5~1.5mm²		 .118(3.0) 1.114(28.3) 17 .445(11.3) 0.169(4.3) .075(1.9)
INHB1-17-4.6 22~16 AWG
0.5~1.5mm²		 .181(4.6) 1.114(28.3) 17 .445(11.3) 0.169(4.3) .075(1.9)
INHB2-17 16~14 AWG
1.5~2.5mm²		 .118(3.0) 1.114(28.3) 17 .445(11.3) .197(5.0) .102(2.6)
INHB2-17-4.6 16~14 AWG
1.5~2.5mm²		 .181(4.6) 1.114(28.3) 17 .445(11.3) .197(5.0) .102(2.6)
Item No. Wire Range
AWG/mm²		 b L F E D d1
IMHB1-17 22~16 AWG
0.5~1.5mm²		 .118(3.0) 1.114(28.3) 17 .445(11.3) 0.169(4.3) .075(1.9)
IMHB1-17-4.6 22~16 AWG
0.5~1.5mm²		 .181(4.6) 1.114(28.3) 17 .445(11.3) 0.169(4.3) .075(1.9)
IMHB2-17 16~14 AWG
1.5~2.5mm²		 .118(3.0) 1.114(28.3) 17 .445(11.3) .197(5.0) .102(2.6)
IMHB2-17-4.6 16~14 AWG
1.5~2.5mm²		 .181(4.6) 1.114(28.3) 17 .445(11.3) .197(5.0) .102(2.6)
Item No. Wire Range
AWG/mm²		 b L F E D d1
IVHB1-17 22~16 AWG
0.5~1.5mm²		 .118(3.0) 1.114(28.3) 17 .445(11.3) .157(4.0) .075(1.9)
IVHB1-17-4.6 22~16 AWG
0.5~1.5mm²		 .181(4.6) 1.114(28.3) 17 .445(11.3) .157(4.0) .075(1.9)
IVHB2-17 16~14 AWG
1.5~2.5mm²		 .118(3.0) 1.114(28.3) 17 .445(11.3) .177(4.5) .102(2.6)
IVHB2-17-4.6 16~14 AWG
1.5~2.5mm²		 .181(4.6) 1.114(28.3) 17 .445(11.3) .177(4.5) .102(2.6)
