Female Bullet Disconnector

All Products > Insulated Terminals > Female Bullet Disconnector > Female Bullet Disconnector

Female Bullet Disconnector

Female Bullet Disconnector
Female Bullet Disconnector
PreviousNext
123

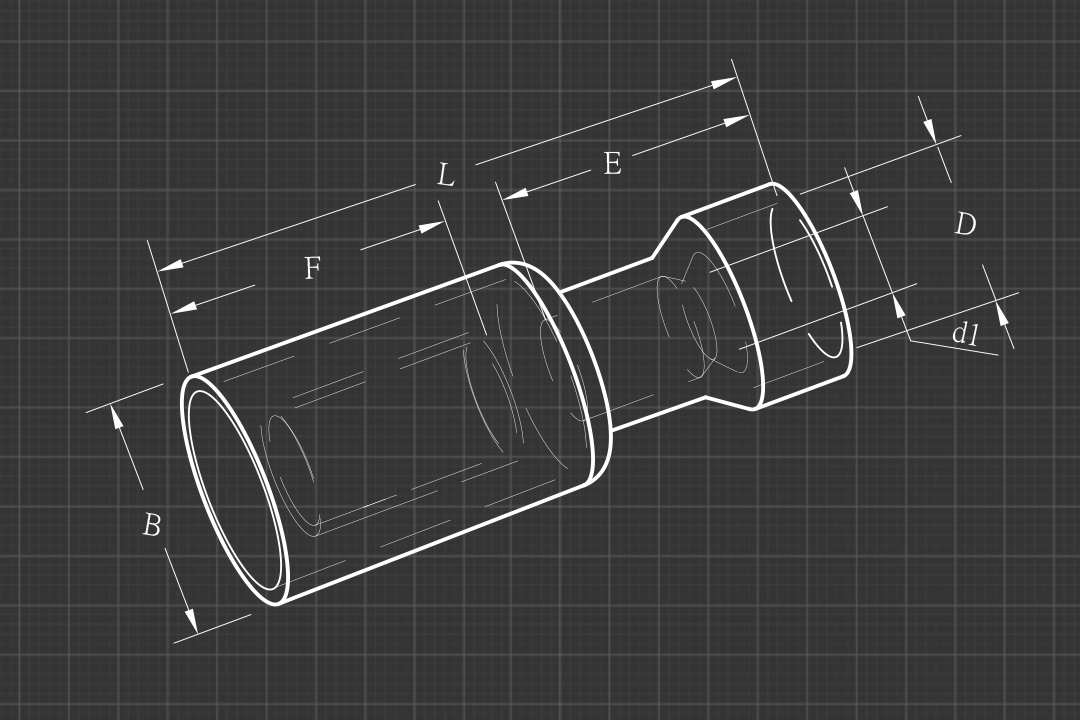

Item No. Wire Range
AWG/mm²		 b L F E D d1
LVG1-4F 22~16 AWG
0.5~1.5mm²		 .152(3.86) .906(23.0) .335(8.5) .413(10.5) .134(3.4) .075(1.9)
LVG2-4F 16~14 AWG
1.5~2.5mm²		 .152(3.86) .906(23.0) .335(8.5) .413(10.5) .169(4.3) .102(2.6)
Item No. Wire Range
AWG/mm²		 b L F E D d1
LVG1-4FC 22~16 AWG
0.5~1.5mm²		 .152(3.86) .906(23.0) .335(8.5) .413(10.5) .165(4.2) .075(1.9)
LVG2-4FC 16~14 AWG
1.5~2.5mm²		 .152(3.86) .906(23.0) .335(8.5) .413(10.5) .197(5.0) .102(2.6)
Item No. Wire Range
AWG/mm²		 b L F E D d1
LVG2-5F 16~14 AWG
1.5~2.5mm²		 .191(4.85) .906(23.0) .335(8.5) .413(10.5) .169(4.3) .102(2.6)
LVG5-5F 12~10 AWG
4~6mm²		 .191(4.85) .906(23.0) .335(8.5) .433(11.0) .217(5.5) .142(3.6)
Item No. Wire Range
AWG/mm²		 b L F E D d1
LVG2-5FC 16~14 AWG
1.5~2.5mm²		 .191(4.85) .945(24.0) .335(8.5) .413(10.5) .197(5.0) .102(2.6)
LVG5-5FC 12~10 AWG
4~6mm²		 .191(4.85) 1.079(27.4) .335(8.5) .433(11.0) .256(6.5) .142(3.6)
