Tubular Lug

All Products > Lugs > Tubular Lug > T Type

T Type

T Type

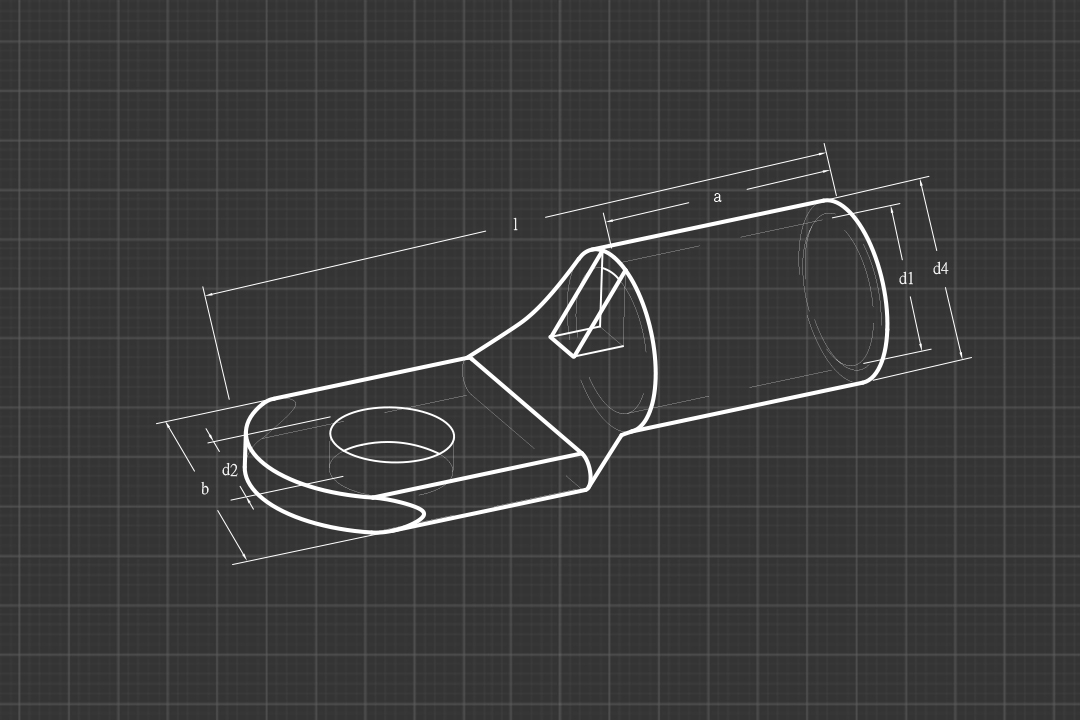

Item No.	Conductor Section	Bolt	d1	d2	d4	b	a	L
Item No.	Conductor Section	Bolt	d1	d2	d4	b	a	L
T1.5-4	1.5	M4	2.4	4.3	4	8.7	7	19
T1.5-5	1.5	M5	2.4	5.3	4	8.7	7	19
T1.5-6	1.5	M6	2.4	6.4	4	10	7	20
T2.5-4	2.5	M4	2.7	4.3	4.3	8.7	7	19
T2.5-5	2.5	M5	2.7	5.3	4.3	8.7	7	19
T2.5-6	2.5	M6	2.7	6.4	4.3	10.3	7	21
T2.5-8	2.5	M8	2.7	8.4	4.3	12	7	23
T4-4	4	M4	3.1	4.3	4.8	8.7	9.5	21.5
T4-5	4	M5	3.1	5.3	4.8	8.7	9.5	21.5
T4-6	4	M6	3.1	6.4	4.8	10.3	9.5	23.5
T4-8	4	M8	3.1	8.4	4.8	12.5	9.5	28.5
T6-4	6	M4	3.8	4.3	5.5	10.3	10	26
T6-5	6	M5	3.8	5.3	5.5	10.3	10	26
T6-6	6	M6	3.8	6.4	5.5	10.3	10	26
T6-8	6	M8	3.8	8.4	5.5	13.9	10	29
T6-10	6	M10	3.8	10.5	5.5	13.9	10	29
T10-4	10	M4	4.7	4.3	6.9	11.9	11.5	27.5
T10-5	10	M5	4.7	5.3	6.9	11.9	11.5	27.5
T10-6	10	M6	4.7	6.4	6.9	11.9	11.5	27.5
T10-8	10	M8	4.7	8.4	6.9	13.5	11.5	30.5
T10-10	10	M10	4.7	10.5	6.9	15	11.5	30.5
T10-12	10	M12	4.7	13	6.9	17	11.5	34
T16-5	16	M5	5.6	5.3	7.8	12	12	27.5
T16-6	16	M6	5.6	6.4	7.8	12	12	27.5
T16-8	16	M8	5.6	8.4	7.8	13.5	12	31
T16-10	16	M10	5.6	10.5	7.8	16	12	32
T16-12	16	M12	5.6	13	7.8	17	12	37.5
T25-6	25	M6	7.1	6.4	9.5	14	13.5	34
T25-8	25	M8	7.1	8.4	9.5	14	13.5	34
T25-10	25	M10	7.1	10.5	9.5	16	13.5	37
T25-12	25	M12	7.1	13	9.5	18	13.5	40
T35-6	35	M6	8.2	6.4	11	16.5	16	39
T35-8	35	M8	8.2	8.4	11	16.5	16	39
T35-10	35	M10	8.2	10.5	11	16.5	16	43
T35-12	35	M12	8.2	13	11	18	16	43
T35-14	35	M14	8.2	15	11	20	16	48
T40-6	40	M6	9	6.4	11.2	17	17	44
T40-8	40	M8	9	8.4	11.2	17	17	44
T40-10	40	M10	9	10.5	11.2	17	17	44
T40-12	40	M12	9	13	11.2	18	17	44
T50-6	50	M6	9.5	6.4	12.5	18	20	45
T50-8	50	M8	9.5	8.4	12.5	18	20	45
T50-10	50	M10	9.5	10.5	12.5	18	20	49
T50-12	50	M12	9.5	13	12.5	18	20	49
T50-14	50	M14	9.5	15	12.5	22	20	54
T50-16	50	M16	9.5	17	14	25	23	62
T50-20	50	M20	9.5	21	14	30	23	68
T70-8	70	M8	11.5	8.4	15	22	20	47.6
T70-10	70	M10	11.5	10.5	15	22	20	51.6
T70-12	70	M12	11.5	13	15	22	20	51.6
T70-14	70	M14	11.5	15	15	22	20	62.6
T70-16	70	M16	11.5	17	15	22	20	62.6
T70-20	70	M20	11.5	21	15	30	20	62.6
T95-8	95	M8	13.5	8.4	17	25	22	55.8
T95-10	95	M10	13.5	10.5	17	25	22	55.8
T95-12	95	M12	13.5	13	17	25	22	55.8
T95-14	95	M14	13.5	15	17	25	22	66.8
T95-16	95	M16	13.5	17	17	25	22	66.8
T95-20	95	M20	13.5	21	17	30	22	66.8
T120-8	120	M8	15.6	8.4	20	29	27	71.5
T120-10	120	M10	15.6	10.5	20	29	27	71.5
T120-12	120	M12	15.6	13	20	29	27	71.5
T120-14	120	M14	15.6	15	20	29	27	71.5
T120-16	120	M16	15.6	17	20	29	27	71.5
T120-20	120	M20	15.6	21	20	29	27	71.5
T150-10	150	M10	16.5	10.5	21	30.6	32	78
T150-12	150	M12	16.5	13	21	30.6	32	78
T150-14	150	M14	16.5	15	21	30.6	32	78
T150-16	150	M16	16.5	17	21	30.6	32	78
T150-20	150	M20	16.5	21	21	30.6	32	78
T185-10	185	M10	18.4	10.5	23.6	34	34	84
T185-12	185	M12	18.4	13	23.6	34	34	84
T185-14	185	M14	18.4	15	23.6	34	34	84
T185-16	185	M16	18.4	17	23.6	34	34	84
T185-20	185	M20	18.4	21	23.6	34	34	84
T240-10	240	M10	21.2	10.5	26	38.5	37	90
T240-12	240	M12	21.2	13	26	38.5	37	90
T240-14	240	M14	21.2	15	26	38.5	37	90
T240-16	240	M16	21.2	17	26	38.5	37	90
T240-20	240	M20	21.2	21	26	38.5	37	90
T300-10	300	M10	23.4	10.5	28.6	42	40	96
T300-12	300	M12	23.4	13	28.6	42	40	96
T300-14	300	M14	23.4	15	28.6	42	40	96
T300-16	300	M16	23.4	17	28.6	42	40	96
T300-20	300	M20	23.4	21	28.6	42	40	96
T400-10	400	M10	26.8	10.5	32.8	48	37	104.7
T400-12	400	M12	26.8	13	32.8	48	37	104.7
T400-14	400	M14	26.8	15	32.8	48	37	104.7
T400-16	400	M16	26.8	17	32.8	48	37	104.7
T400-20	400	M20	26.8	21	32.8	48	37	104.7
T500-10	500	M10	29.8	10.5	38.4	55	46.5	115.5
T500-12	500	M12	29.8	13	38.4	55	46.5	115.5
T500-14	500	M14	29.8	15	38.4	55	46.5	115.5
T500-16	500	M16	29.8	17	38.4	55	46.5	115.5
T500-20	500	M20	29.8	21	38.4	55	46.5	115.5
T630-10	630	M10	34.5	10.5	44.7	64	50	133.1
T630-12	630	M12	34.5	13	44.7	64	50	133.1
T630-14	630	M14	34.5	15	44.7	64	50	133.1
T630-16	630	M16	34.5	17	44.7	64	50	133.1
T630-20	630	M20	34.5	21	44.7	64	50	133.1
