Male Disconnector

All Products > Insulated Terminals > Male Disconnector > Male Disconnector

Male Disconnector

Male Disconnector
Male Disconnector
PreviousNext
123

Male Disconnectors provide a quick-disconnect feature for easy maintenance and modifications in wiring systems.

Material: 99.9% electrolytic copper / insulation options PVC, PC, Nylon
Operating Temperature: 80°C (determined by the insulation material)
Voltage Withstand: copper brass 300V
Flammability: UL-94 V0
Surface: Tin-plated
RoHS, REACH certified products

Item No. Wire Range
AWG/mm²		 To Fit

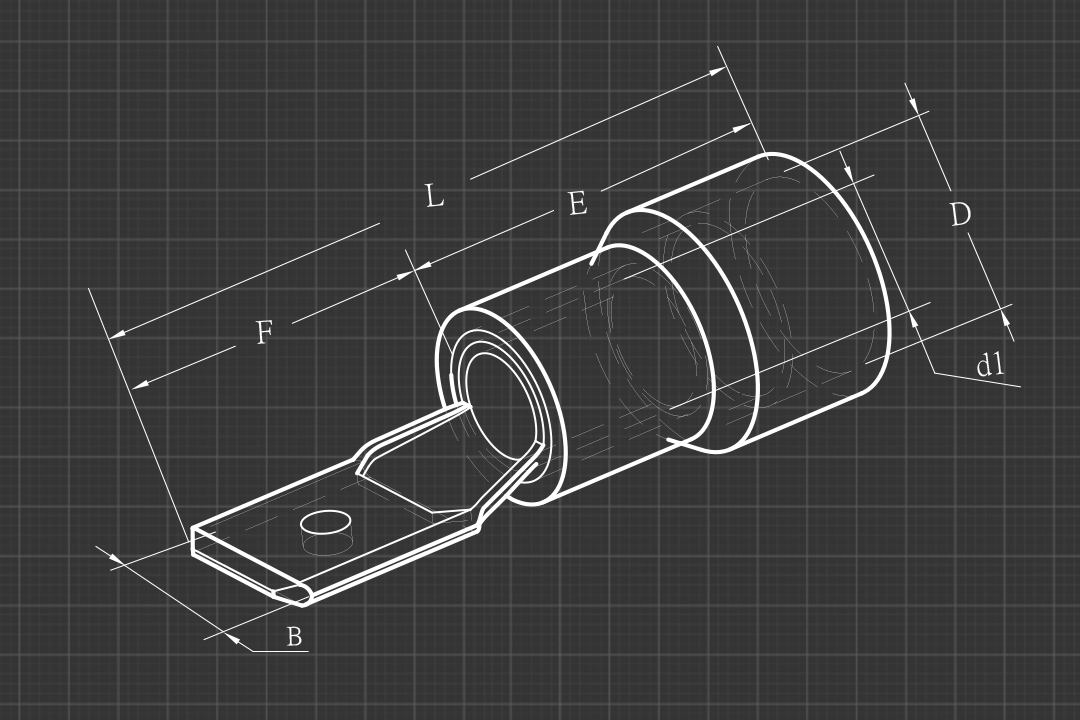

Tab Size		 b L F E D d1
VD1-2.8M5 22~16 AWG
0.5~1.5mm²		 .020*.110 (0.5*2.8) .110(2.8) .689(17.5) .276(7.0) .374(9.5) .134(3.4) .075(1.9)
VD1-2.8M8 22~16 AWG
0.5~1.5mm²		 .032*.110 (0.8*2.8) .110(2.8) .709(18.0) .307(7.8) .394(10.0) .134(3.4) .075(1.9)
VD2-2.8M5 16~14 AWG
1.5~2.5mm²		 .020*.110 (0.5*2.8) .110(2.8) .689(17.5) .276(7.0) .374(9.5) .169(4.3) .102(2.6)
VD2-2.8M8 16~14 AWG
1.5~2.5mm²		 .032*.110 (0.8*2.8) .110(2.8) .728(18.5) .307(7.8) .394(10.0) .169(4.3) .102(2.6)
Item No. Wire Range
AWG/mm²		 To Fit
Tab Size		 b L F E D d1
IND1-2.8M5 22~16 AWG
0.5~1.5mm²		 .020*.110 (0.5*2.8) .110(2.8) .689(17.5) .276(7.0) .374(9.5) .157(4.0) .075(1.9)
IND1-2.8M8 22~16 AWG
0.5~1.5mm²		 .032*.110 (0.8*2.8) .110(2.8) .709(18.0) .307(7.8) .394(10.0) .169(4.3) .075(1.9)
IND2-2.8M5 16~14 AWG
1.5~2.5mm²		 .020*.110 (0.5*2.8) .110(2.8) .689(17.5) .276(7.0) .374(9.5) .177(4.5) .102(2.6)
IND2-2.8M8 16~14 AWG
1.5~2.5mm²		 .032*.110 (0.8*2.8) .110(2.8) .709(18.0) .307(7.8) .394(10.0) .197(5.0) .102(2.6)
Item No. Wire Range
AWG/mm²		 To Fit
Tab Size		 b L F E D d1
IMD1-2.8M5 22~16 AWG
0.5~1.5mm²		 .020*.110 (0.5*2.8) .110(2.8) .689(17.5) .276(7.0) .374(9.5) .157(4.0) .075(1.9)
IMD1-2.8M8 22~16 AWG
0.5~1.5mm²		 .032*.110 (0.8*2.8) .110(2.8) .709(18.0) .307(7.8) .394(10.0) .169(4.3) .075(1.9)
IMD2-2.8M5 16~14 AWG
1.5~2.5mm²		 .020*.110 (0.5*2.8) .110(2.8) .689(17.5) .276(7.0) .374(9.5) .177(4.5) .102(2.6)
IMD2-2.8M8 16~14 AWG
1.5~2.5mm²		 .032*.110 (0.8*2.8) .110(2.8) .728(18.5) .307(7.8) .394(10.0) .197(5.0) .102(2.6)
Item No. Wire Range
AWG/mm²		 To Fit
Tab Size		 b L F E D d1
IVD1-2.8M5 22~16 AWG
0.5~1.5mm²		 .020*.110 (0.5*2.8) .110(2.8) .689(17.5) .276(7.0) .374(9.5) 157(4.0) .075(1.9)
IVD1-2.8M8 22~16 AWG
0.5~1.5mm²		 .032*.110 (0.8*2.8) .110(2.8) .709(18.0) .307(7.8) .394(10.0) 157(4.0) .075(1.9)
IVD2-2.8M5 16~14 AWG
1.5~2.5mm²		 .020*.110 (0.5*2.8) .110(2.8) .689(17.5) .276(7.0) .374(9.5) .177(4.5) .102(2.6)
IVD2-2.8M8 16~14 AWG
1.5~2.5mm²		 .032*.110 (0.8*2.8) .110(2.8) .728(18.5) .307(7.8) .394(10.0) .177(4.5) .102(2.6)
Item No. Wire Range
AWG/mm²		 To Fit
Tab Size		 b L F E D d1
VD1-2.8M5C 22~16 AWG
0.5~1.5mm²		 .020*.110 (0.5*2.8) .110(2.8) .709(18.0) .276(7.0) .394(10.0) .165(4.2) .075(1.9)
VD1-2.8M8D 22~16 AWG
0.5~1.5mm²		 .032*.110 (0.8*2.8) .110(2.8) .728(18.5) .307(7.8) .394(10.0) .177(4.5) .075(1.9)
VD2-2.8M5C 16~14 AWG
1.5~2.5mm²		 .020*.110 (0.5*2.8) .110(2.8) .709(18.0) .276(7.0) .374(9.5) .193(4.9) .102(2.6)
VD2-2.8M8D 16~14 AWG
1.5~2.5mm²		 .032*.110 (0.8*2.8) .110(2.8) .728(18.5) .307(7.8) .394(10.0) .201(5.1) .102(2.6)
Item No. Wire Range
AWG/mm²		 To Fit
Tab Size		 b L F E D d1
VD1-4.8M5 22~16 AWG
0.5~1.5mm²		 .020*.187 (0.5*4.8) .187(4.8) .728(18.5) .276(7.0) .374(9.5) .134(3.4) .075(1.9)
VD1-4.8M8 22~16 AWG
0.5~1.5mm²		 .032*.187 (0.8*4.8) .187(4.8) .748(19.0) .307(7.8) .374(9.5) .134(3.4) .075(1.9)
VD2-4.8M5 16~14 AWG
1.5~2.5mm²		 .020*.187 (0.5*4.8) .187(4.8) .728(18.5) .276(7.0) .374(9.5) .169(4.3) .102(2.6)
VD2-4.8M8 16~14 AWG
1.5~2.5mm²		 .032*.187 (0.8*4.8) .187(4.8) .768(19.5) .307(7.8) .394(10.0) .169(4.3) .102(2.6)
Item No. Wire Range
AWG/mm²		 To Fit
Tab Size		 b L F E D d1
IND1-4.8M5 22~16 AWG
0.5~1.5mm²		 .020*.187 (0.5*4.8) .187(4.8) .728(18.5) .276(7.0) .374(9.5) .157(4.0) .075(1.9)
IND1-4.8M8 22~16 AWG
0.5~1.5mm²		 .032*.187 (0.8*4.8) .187(4.8) .748(19.0) .307(7.8) .374(9.5) .169(4.3) .075(1.9)
IND2-4.8M5 16~14 AWG
1.5~2.5mm²		 .020*.187 (0.5*4.8) .187(4.8) .728(18.5) .276(7.0) .374(9.5) .177(4.5) .102(2.6)
IND2-4.8M8 16~14 AWG
1.5~2.5mm²		 .032*.187 (0.8*4.8) .187(4.8) .768(19.5) .307(7.8) .394(10.0) .197(5.0) .102(2.6)
Item No. Wire Range
AWG/mm²		 To Fit
Tab Size		 b L F E D d1
IMD1-4.8M5 22~16 AWG
0.5~1.5mm²		 .020*.187 (0.5*4.8) .187(4.8) .728(18.5) .276(7.0) .374(9.5) .157(4.0) .075(1.9)
IMD1-4.8M8 22~16 AWG
0.5~1.5mm²		 .032*.187 (0.8*4.8) .187(4.8) .748(19.0) .307(7.8) .374(9.5) .169(4.3) .075(1.9)
IMD2-4.8M5 16~14 AWG
1.5~2.5mm²		 .020*.187 (0.5*4.8) .187(4.8) .728(18.5) .276(7.0) .374(9.5) .177(4.5) .102(2.6)
IMD2-4.8M8 16~14 AWG
1.5~2.5mm²		 .032*.187 (0.8*4.8) .187(4.8) .768(19.5) .307(7.8) .394(10.0) .197(5.0) .102(2.6)
Item No. Wire Range
AWG/mm²		 To Fit
Tab Size		 b L F E D d1
IVD1-4.8M5 22~16 AWG
0.5~1.5mm²		 .020*.187 (0.5*4.8) .187(4.8) .728(18.5) .276(7.0) .374(9.5) 157(4.0) .075(1.9)
IVD1-4.8M8 22~16 AWG
0.5~1.5mm²		 .032*.187 (0.8*4.8) .187(4.8) .748(19.0) .307(7.8) .374(9.5) 157(4.0) .075(1.9)
IVD2-4.8M5 16~14 AWG
1.5~2.5mm²		 .020*.187 (0.5*4.8) .187(4.8) .728(18.5) .276(7.0) .374(9.5) .177(4.5) .102(2.6)
IVD2-4.8M8 16~14 AWG
1.5~2.5mm²		 .032*.187 (0.8*4.8) .187(4.8) .768(19.5) .307(7.8) .394(10.0) .177(4.5) .102(2.6)
Item No. Wire Range
AWG/mm²		 To Fit
Tab Size		 b L F E D d1
VD1-4.8M5C 22~16 AWG
0.5~1.5mm²		 .020*.187 (0.5*4.8) .187(4.8) .748(19.0) .276(7.0) .394(10.0) .165(4.2) .075(1.9)
VD1-4.8M8D 22~16 AWG
0.5~1.5mm²		 .032*.187 (0.8*4.8) .187(4.8) .768(19.5) .307(7.8) .394(10.0) .177(4.5) .075(1.9)
VD2-4.8M5C 16~14 AWG
1.5~2.5mm²		 .020*.187 (0.5*4.8) .187(4.8) .748(19.0) .276(7.0) .374(9.5) .193(4.9) .102(2.6)
VD2-4.8M8D 16~14 AWG
1.5~2.5mm²		 .032*.187 (0.8*4.8) .187(4.8) .768(19.5) .307(7.8) .394(10.0) .201(5.1) .102(2.6)
Item No. Wire Range
AWG/mm²		 To Fit
Tab Size		 b L F E D d1
VD1-6.3M 22~16 AWG
0.5~1.5mm²		 .032*.250 (0.8*6.3) .250 (6.3) .799(20.3) .307(7.8) .374(9.5) .134(3.4) .075(1.9)
VD2-6.3M 16~14 AWG
1.5~2.5mm²		 .032*.250 (0.8*6.3) .250 (6.3) .799(20.3) .307(7.8) .374(9.5) .169(4.3) .102(2.6)
VD5-6.3M 12~10 AWG
4~6mm²		 .032*.250 (0.8*6.3) .250 (6.3) .937(23.8) .307(7.8) .512 (12.5) .217 (5.5) .142(3.6)
Item No. Wire Range
AWG/mm²		 To Fit
Tab Size		 b L F E D d1
IND1-6.3M 22~16 AWG
0.5~1.5mm²		 .032*.250 (0.8*6.3) .250 (6.3) .799(20.3) .307(7.8) .374(9.5) .157(4.0) .075(1.9)
IND2-6.3M 16~14 AWG
1.5~2.5mm²		 .032*.250 (0.8*6.3) .250 (6.3) .799(20.3) .307(7.8) .374(9.5) .177(4.5) .102(2.6)
IND5-6.3M 12~10 AWG
4~6mm²		 .032*.250 (0.8*6.3) .250 (6.3) .937(23.8) .307(7.8) .512 (12.5) .256 (6.5) .142(3.6)
Item No. Wire Range
AWG/mm²		 To Fit
Tab Size		 b L F E D d1
IMD1-6.3M 22~16 AWG
0.5~1.5mm²		 .032*.250 (0.8*6.3) .250 (6.3) .799(20.3) .307(7.8) .374(9.5) .157(4.0) .075(1.9)
IMD2-6.3M 16~14 AWG
1.5~2.5mm²		 .032*.250 (0.8*6.3) .250 (6.3) .799(20.3) .307(7.8) .374(9.5) .177(4.5) .102(2.6)
IMD5-6.3M 12~10 AWG
4~6mm²		 .032*.250 (0.8*6.3) .250 (6.3) .937(23.8) .307(7.8) .512 (12.5) .256 (6.5) .142(3.6)
Item No. Wire Range
AWG/mm²		 To Fit
Tab Size		 b L F E D d1
IVD1-6.3M 22~16 AWG
0.5~1.5mm²		 .032*.250 (0.8*6.3) .250 (6.3) .799(20.3) .307(7.8) .374(9.5) .157(4.0) .075(1.9)
IVD2-6.3M 16~14 AWG
1.5~2.5mm²		 .032*.250 (0.8*6.3) .250 (6.3) .799(20.3) .307(7.8) .374(9.5) .177(4.5) .102(2.6)
IVD5-6.3M 12~10 AWG
4~6mm²		 .032*.250 (0.8*6.3) .250 (6.3) .937(23.8) .307(7.8) .512 (12.5) .252 (6.4) .142(3.6)
Item No. Wire Range
AWG/mm²		 To Fit
Tab Size		 b L F E D d1
VD1-6.3MC 22~16 AWG
0.5~1.5mm²		 .032*.250 (0.8*6.3) .250 (6.3) .819(20.8) .307(7.8) .394(10.0) .165(4.2) .394(10.0)
VD2-6.3MC 16~14 AWG
1.5~2.5mm²		 .032*.250 (0.8*6.3) .250 (6.3) .819(20.8) .307(7.8) .374(9.5) .197(5.0) .102(2.6)
VD5-6.3MC 12~10 AWG
4~6mm²		 .032*.250 (0.8*6.3) .250 (6.3) .937(23.8) .307(7.8) .512(13.0) .256(6.5) .142(3.6)
