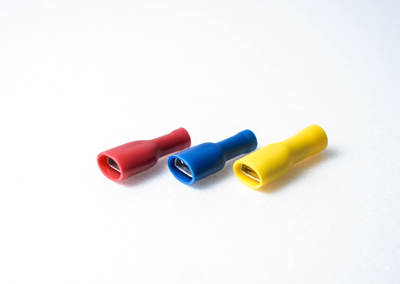

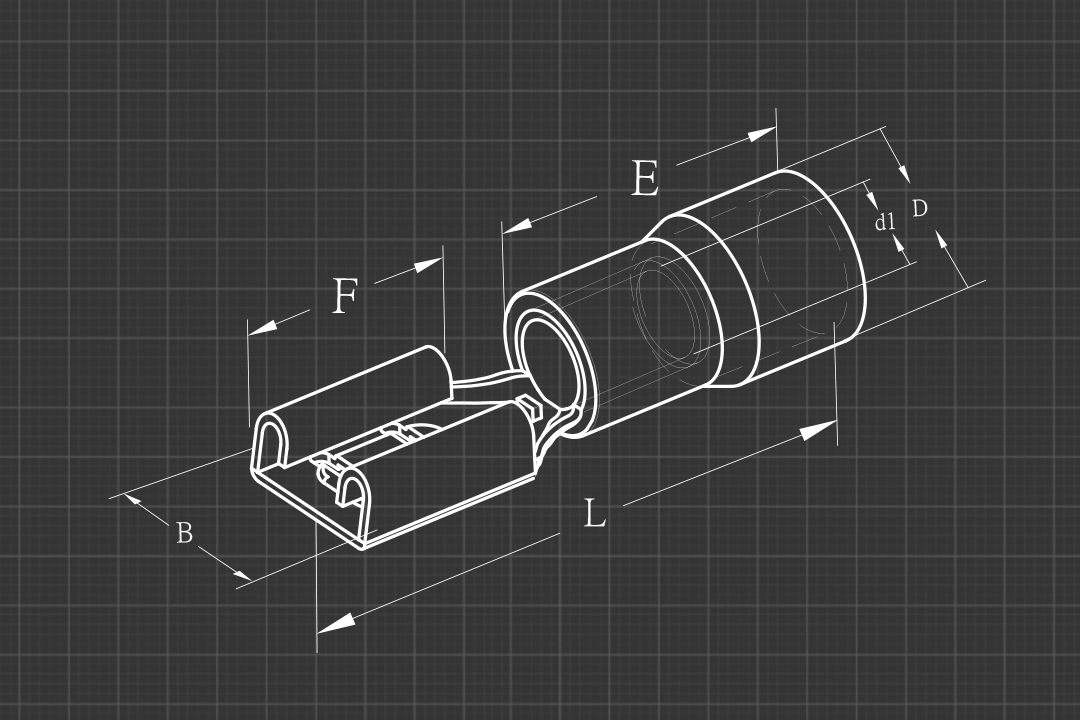

Female Disconnector Copper Terminals Ring Terminal Insulated Uninsulated Spade Terminal Insulated Uninsulated Pin Terminal Pin Terminal Flanged Spade Flanged Spade Terminal Locking Spade Locking Spade Terminal Blade Terminal Blade Terminal Hooked Blade Hooked Blade Terminal Butt Splice Butt Splice Piggy Back Disconnector Piggy Back Disconnector Male Disconnector Male Disconnector Female Disconnector Insulated Type Fully Insulated Type Male Bullet Disconnector Insulated Type Female Bullet Disconnector Female Bullet Disconnector Fully Insulated Bullet Disconnector Fully Insulated Bullet Disconnector Quick Splice Quick Splice – P.P. Quick Splice – Nylon Lugs Tubular Lug DIN 46234 DIN 46235 G Type 90 Degree SC Type T Type TU Type CL Type P Butt Connector B Butt Connector M Butt Connector Shear-Bolt Lug Shear-Bolt Lug Shear-Bolt Connector Cord-End Terminals Pre-Insulated Type Twin Type Un-Insulated Type Cable Gland Cable Gland Wiring Accessory Closed End Connector Closed End Connector Wire Nut Connector Cable Marker Cable Marker Cable Tie Nylon Cable Tie Heat Shrink Tube Heat Shrink Tube Wiring Duct Solid Type Slotted Type Soft Sleeve Soft Sleeve Crimping Tool Heavy Duty MLT-8 MLT-14 MLT-25 MLT-120 MLT-150 Multi-Purpose MLT-203 8.7" Ratchet MLT-236 MLT-236E MLT-236H MLT-236R MLT-236N MLT-236C All Products > Copper Terminals > Female Disconnector > Insulated Type Insulated Type Female Disconnector PreviousNext 123 2.8 mm 4.8 mm 6.3 mm 8.0 mm 9.5 mm Next Previous PVC Flared PVC Flared With Copper Tube Item No. Wire RangeAWG/mm² To FitTab Size b L F E D d1 VD1-2.8F5 22~16 AWG0.5~1.5mm² .020*.110 (0.5*2.8) .150(3.8) .717(18.2) .252(6.4) .374(9.5) .134(3.4) .075(1.9) VD1-2.8F8 22~16 AWG0.5~1.5mm² .032*.187 (0.8*2.8) .150(3.8) .717(18.2) .252(6.4) .374(9.5) .134(3.4) .075(1.9) VD2-2.8F5 16~14 AWG1.5~2.5mm² .020*.110 (0.5*2.8) .150(3.8) .717(18.2) .252(6.4) .374(9.5) .169(4.3) .102(2.6) VD2-2.8F8 16~14 AWG1.5~2.5mm² .032*.187 (0.8*2.8) .150(3.8) .717(18.2) .252(6.4) .374(9.5) .169(4.3) .102(2.6) Item No. Wire RangeAWG/mm² To FitTab Size b L F E D d1 VD1-2.8F5C 22~16 AWG0.5~1.5mm² .020*.110 (0.5*2.8) .150(3.8) .736(18.7) .252(6.4) .374(9.5) .165(4.2) .075(1.9) VD1-2.8F8C 22~16 AWG0.5~1.5mm² .032*.110 (0.8*2.8) .150(3.8) .736(18.7) .252(6.4) .374(9.5) .165(4.2) .075(1.9) VD2-2.8F5C 16~14 AWG1.5~2.5mm² .020*.110 (0.5*2.8) .150(3.8) .736(18.7) .252(6.4) .374(9.5) .197(5.0) .102(2.6) VD2-2.8F8C 16~14 AWG1.5~2.5mm² .032*.110 (0.8*2.8) .150(3.8) .736(18.7) .252(6.4) .374(9.5) .197(5.0) .102(2.6) Next Previous PVC Flared PVC Flared With Copper Tube Item No. Wire RangeAWG/mm² To FitTab Size b L F E D d1 VD1-4.8F5 22~16 AWG0.5~1.5mm² .020*.187 (0.5*4.8) .224(5.7) .736(18.7) .256(6.5) .374(9.5) .134(3.4) .075(1.9) VD1-4.8F8 22~16 AWG0.5~1.5mm² .020*.187 (0.5*4.8) .224(5.7) .736(18.7) .256(6.5) .374(9.5) .134(3.4) .075(1.9) VD2-4.8F5 16~14 AWG1.5~2.5mm² .020*.187 (0.5*4.8) .224(5.7) .736(18.7) .256(6.5) .374(9.5) .169(4.3) .102(2.6) VD2-4.8F8 16~14 AWG1.5~2.5mm² .032*.187 (0.8*4.8) .224(5.7) .736(18.7) .256(6.5) .374(9.5) .169(4.3) .102(2.6) Item No. Wire RangeAWG/mm² To FitTab Size b L F E D d1 VD1-4.8F5C 22~16 AWG0.5~1.5mm² .020*.187 (0.5*4.8) .224(5.7) .756(19.2) .256 (6.5) .374 (9.5) .165(4.2) .075(1.9) VD1-4.8F8C 22~16 AWG0.5~1.5mm² .032*.187 (0.8*4.8) .224(5.7) .756(19.2) .256 (6.5) .374 (9.5) .165(4.2) .075(1.9) VD2-4.8F5C 16~14 AWG1.5~2.5mm² .020*.187 (0.5*4.8) .224(5.7) .756(19.2) .256 (6.5) .374 (9.5) .197(5.0) .102(2.6) VD2-4.8F8C 16~14 AWG1.5~2.5mm² .032*.187 (0.8*4.8) .224(5.7) .756(19.2) .256 (6.5) .374 (9.5) .197(5.0) .102(2.6) Next Previous PVC Flared Nylon Molded PC Molded PVC Molded PVC Flared With Copper Tube Item No. Wire RangeAWG/mm² To FitTab Size b L F E D d1 VD1-6.3F 22~16 AWG0.5~1.5mm² .032*.250 (0.8*6.3) .291(7.4) .799(20.3) .311(7.9) .374(9.5) .134(3.4) .075(1.9) VD2-6.3F 16~14 AWG1.5~2.5mm² .032*.250 (0.8*6.3) .291(7.4) .799(20.3) .311(7.9) .374(9.5) .169(4.3) .102(2.6) VD5-6.3F 12~10 AWG4~6mm² .032*.250 (0.8*6.3) .291(7.4) .937(23.8) .311(7.9) .492(12.5) .217(5.5) .142(3.6) Item No. Wire RangeAWG/mm² To FitTab Size b L F E D d1 IND1-6.3F 22~16 AWG0.5~1.5mm² .032*.250 (0.8*6.3) .291(7.4) .799(20.3) .311(7.9) .374(9.5) .157(4.0) .075(1.9) IND2-6.3F 16~14 AWG1.5~2.5mm² .032*.250 (0.8*6.3) .291(7.4) .799(20.3) .311(7.9) .374(9.5) .177(4.5) .102(2.6) IND5-6.3F 12~10 AWG4~6mm² .032*.250 (0.8*6.3) .291(7.4) .937(23.8) .311(7.9) .492(12.5) .256(6.5) .142(3.6) Item No. Wire RangeAWG/mm² To FitTab Size b L F E D d1 IMD1-6.3F 22~16 AWG0.5~1.5mm² .032*.250 (0.8*6.3) .291(7.4) .799(20.3) .311(7.9) .374(9.5) .157(4.0) .075(1.9) IMD2-6.3F 16~14 AWG1.5~2.5mm² .032*.250 (0.8*6.3) .291(7.4) .799(20.3) .311(7.9) .374(9.5) .177(4.5) .102(2.6) IMD5-6.3F 12~10 AWG4~6mm² .032*.250 (0.8*6.3) .291(7.4) .937(23.8) .311(7.9) .492(12.5) .256(6.5) .142(3.6) Item No. Wire RangeAWG/mm² To FitTab Size b L F E D d1 IVD1-6.3F 22~16 AWG0.5~1.5mm² .032*.250 (0.8*6.3) .291(7.4) .799(20.3) .311(7.9) .374(9.5) .157(4.0) .075(1.9) IVD2-6.3F 16~14 AWG1.5~2.5mm² .032*.250 (0.8*6.3) .291(7.4) .799(20.3) .311(7.9) .374(9.5) .177(4.5) .102(2.6) IVD5-6.3F 12~10 AWG4~6mm² .032*.250 (0.8*6.3) .291(7.4) .937(23.8) .311(7.9) .492(12.5) .252(6.4) .142(3.6) Item No. Wire RangeAWG/mm² To FitTab Size b L F E D d1 VD1-6.3FC 22~16 AWG0.5~1.5mm² .032*.250 (0.8*6.3) .291(7.4) .799(20.3) .311(7.9) .374(9.5) .165(4.2) .075(1.9) VD2-6.3FC 16~14 AWG1.5~2.5mm² .032*.250 (0.8*6.3) .291(7.4) .799(20.3) .311(7.9) .374(9.5) .197(5.0) .102(2.6) VD5-6.3FC 12~10 AWG4~6mm² .032*.250 (0.8*6.3) .291(7.4) .937(23.8) .311(7.9) .492(12.5) .256(6.5) .142(3.6) Next Previous PVC Flared Nylon Molded PC Molded PVC Molded PVC Flared With Copper Tube Item No. Wire RangeAWG/mm² Wire Range b L F E D d1 VD1-8F 22~16 AWG0.5~1.5mm² .032*.312 (0.8*8.0) .358(9.1) .886(22.5) .394(10.0) .374(9.5) .134(3.4) .075(1.9) VD2-8F 16~14 AWG1.5~2.5mm² .032*.312 (0.8*8.0) .358(9.1) .886(22.5) .394(10.0) .374(9.5) .169(4.3) .102(2.6) Item No. Wire RangeAWG/mm² To FitTab Size b L F E D d1 IND1-8F 22~16 AWG0.5~1.5mm² .032*.312 (0.8*8.0) .358(9.1) .886(22.5) .394(10.0) .374(9.5) .157(4.0) .075(1.9) IND2-8F 16~14 AWG1.5~2.5mm² .032*.312 (0.8*8.0) .358(9.1) .886(22.5) .394(10.0) .374(9.5) .177(4.5) .102(2.6) Item No. Wire RangeAWG/mm² To FitTab Size b L F E D d1 IMD1-8F 22~16 AWG0.5~1.5mm² .032*.312 (0.8*8.0) .358(9.1) .886(22.5) .394(10.0) .374(9.5) .157(4.0) .075(1.9) IMD2-8F 16~14 AWG1.5~2.5mm² .032*.312 (0.8*8.0) .358(9.1) .886(22.5) .394(10.0) .374(9.5) .177(4.5) .102(2.6) Item No. Wire RangeAWG/mm² To FitTab Size b L F E D d1 IVD1-8F 22~16 AWG0.5~1.5mm² .032*.312 (0.8*8.0) .358(9.1) .886(22.5) .394(10.0) .374(9.5) .157(4.0) .075(1.9) IVD2-8F 16~14 AWG1.5~2.5mm² .032*.312 (0.8*8.0) .358(9.1) .886(22.5) .394(10.0) .374(9.5) .177(4.5) .102(2.6) Item No. Wire RangeAWG/mm² To FitTab Size b L F E D d1 VD1-8FC 22~16 AWG0.5~1.5mm²
Copper Terminals Ring Terminal Insulated Uninsulated Spade Terminal Insulated Uninsulated Pin Terminal Pin Terminal Flanged Spade Flanged Spade Terminal Locking Spade Locking Spade Terminal Blade Terminal Blade Terminal Hooked Blade Hooked Blade Terminal Butt Splice Butt Splice Piggy Back Disconnector Piggy Back Disconnector Male Disconnector Male Disconnector Female Disconnector Insulated Type Fully Insulated Type Male Bullet Disconnector Insulated Type Female Bullet Disconnector Female Bullet Disconnector Fully Insulated Bullet Disconnector Fully Insulated Bullet Disconnector Quick Splice Quick Splice – P.P. Quick Splice – Nylon Lugs Tubular Lug DIN 46234 DIN 46235 G Type 90 Degree SC Type T Type TU Type CL Type P Butt Connector B Butt Connector M Butt Connector Shear-Bolt Lug Shear-Bolt Lug Shear-Bolt Connector Cord-End Terminals Pre-Insulated Type Twin Type Un-Insulated Type Cable Gland Cable Gland Wiring Accessory Closed End Connector Closed End Connector Wire Nut Connector Cable Marker Cable Marker Cable Tie Nylon Cable Tie Heat Shrink Tube Heat Shrink Tube Wiring Duct Solid Type Slotted Type Soft Sleeve Soft Sleeve Crimping Tool Heavy Duty MLT-8 MLT-14 MLT-25 MLT-120 MLT-150 Multi-Purpose MLT-203 8.7" Ratchet MLT-236 MLT-236E MLT-236H MLT-236R MLT-236N MLT-236C
