Locking Spade Terminal

Locking Spade

Previous Next

1 2 3

Locking Spade Terminals are designed to prevent accidental disconnection, making them ideal for high-vibration environments.

Material: 99.9% electrolytic copper / insulation options PVC, PC, Nylon
Operating Temperature: 80°C (determined by the insulation material)
Voltage Withstand: copper 600V
Flammability: UL-94 V0
Surface: Tin-plated
RoHS, REACH certified products

PVC Flared
Nylon Molded
PC Molded
PVC Molded

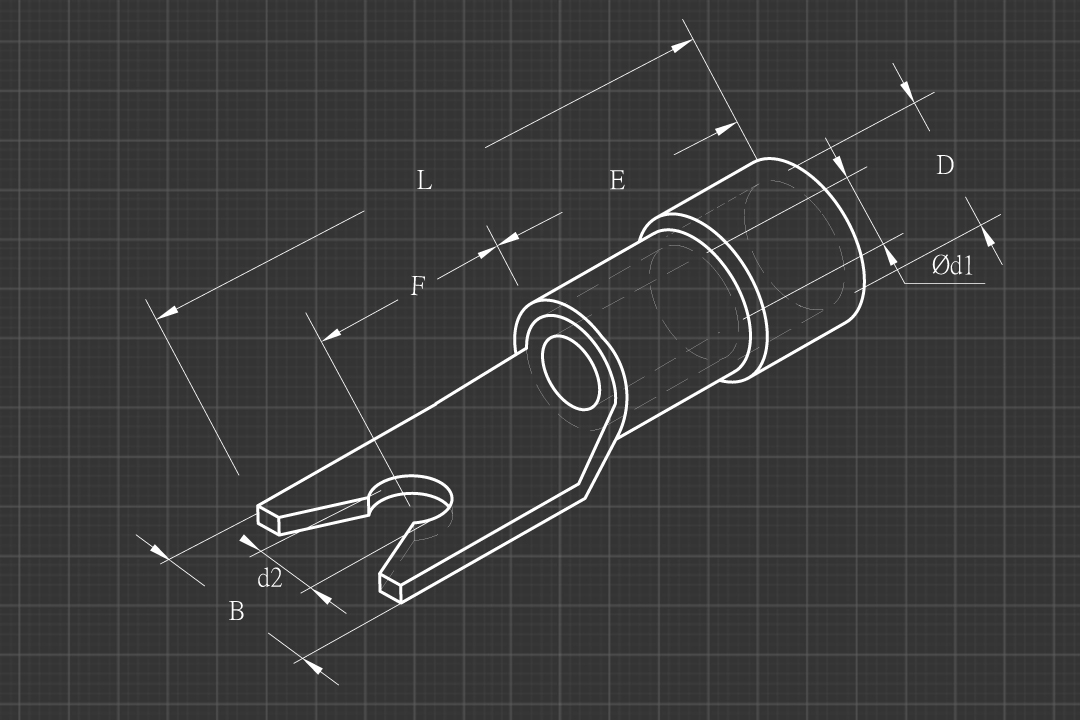

Item No.	Wire Range AWG/mm²	Stud Size	b	L	F	E	D	d1
Item No.	Wire Range AWG/mm²	d2	b	L	F	E	D	d1
VLS1-3.5	22~16 AWG 0.5~1.5mm²	#6(3.8)	.252(6.4)	.728(18.5)	.256(6.2)	.374(9.5)	.157(4.0)	.075(1.9)
VLS2-3.5	16~14 AWG 1.5~2.5mm²	#6(3.8)	.252(6.4)	.748(19.0)	.256(6.2)	.394(10.0)	.177(4.5)	.102(2.6)
VLS2-6	16~14 AWG 1.5~2.5mm²	1/4(6.5)	.433(11.0)	1.039(26.4)	.402(10.2)	.394(10.0)	.177(4.5)	.102(2.6)
VLS5-6	12~10 AWG 4~6mm²	1/4(6.5)	.512(13.0)	1.280(32.5)	.508(12.9)	.512(13.0)	.252(6.4)	.142(3.6)

Item No.	Wire Range AWG/mm²	Stud Size	b	L	F	E	D	d1
Item No.	Wire Range AWG/mm²	d2	b	L	F	E	D	d1
INLS 1-3.5	22~16 AWG 0.5~1.5mm²	#6(3.8)	.252(6.4)	.799(20.3)	.256(6.2)	.445(11.3)	.169(4.3)	.075(1.9)
INLS2-3.5	16~14 AWG 1.5~2.5mm²	#6(3.8)	.252(6.4)	.799(20.3)	.256(6.2)	.445(11.3)	.197(5.0)	.102(2.6)
INLS2-6	16~14 AWG 1.5~2.5mm²	1/4(6.5)	.433(11.0)	1.091(27.7)	.402(10.2)	.445(11.3)	.197(5.0)	.102(2.6)
INLS5-6	12~10 AWG 4~6mm²	1/4(6.5)	.512(13.0)	1.325(33.65)	.508(12.9)	.557(14.15)	.252(6.5)	.142(3.6)

Item No.	Wire Range AWG/mm²	Stud Size	b	L	F	E	D	d1
Item No.	Wire Range AWG/mm²	d2	b	L	F	E	D	d1
IMLS1-3.5	22~16 AWG 0.5~1.5mm²	#6(3.8)	.252(6.4)	.799(20.3)	.256(6.2)	.445(11.3)	.169(4.3)	.075(1.9)
IMLS2-3.5	16~14 AWG 1.5~2.5mm²	#6(3.8)	.252(6.4)	.799(20.3)	.256(6.2)	.445(11.3)	.197(5.0)	.102(2.6)
IMLS2-6	16~14 AWG 1.5~2.5mm²	1/4(6.5)	.433(11.0)	1.091(27.7)	.402(10.2)	.445(11.3)	.197(5.0)	.102(2.6)
IMLS5-6	12~10 AWG 4~6mm²	1/4(6.5)	.512(13.0)	1.325(33.65)	.508(12.9)	.557(14.15)	.252(6.5)	.142(3.6)

Item No.	Wire Range AWG/mm²	Stud Size	b	L	F	E	D	d1
Item No.	Wire Range AWG/mm²	d2	b	L	F	E	D	d1
IVLS 1-3.5	22~16 AWG 0.5~1.5mm²	#6(3.8)	.252(6.4)	.799(20.3)	.256(6.2)	.445(11.3)	.157(4.0)	.075(1.9)
IVLS2-3.5	16~14 AWG 1.5~2.5mm²	#6(3.8)	.252(6.4)	.799(20.3)	.256(6.2)	.445(11.3)	.177(4.5)	.102(2.6)
IVLS2-6	16~14 AWG 1.5~2.5mm²	1/4(6.5)	.433(11.0)	1.091(27.7)	.402(10.2)	.445(11.3)	.177(4.5)	.102(2.6)
IVLS5-6	12~10 AWG 4~6mm²	1/4(6.5)	.512(13.0)	1.325(33.65)	.508(12.9)	.557(14.15)	.252(6.4)	.142(3.6)
