Female Disconnector

All Products > Insulated Terminals > Female Disconnector > Fully Insulated Type

Fully Insulated Type

Female Disconnector
Female Disconnector
PreviousNext
123

Fully Insulated Female Disconnectors offer enhanced safety by preventing accidental contact with live terminals. Commonly used in automotive, electronics, industrial equipment, household appliances, and marine applications.

Material: 99.9% electrolytic copper / insulation options PVC, PC, Nylon
Operating Temperature: 80°C (determined by the insulation material)
Voltage Withstand: copper brass 300V
Flammability: UL-94 V0
Surface: Tin-plated
RoHS, REACH certified products

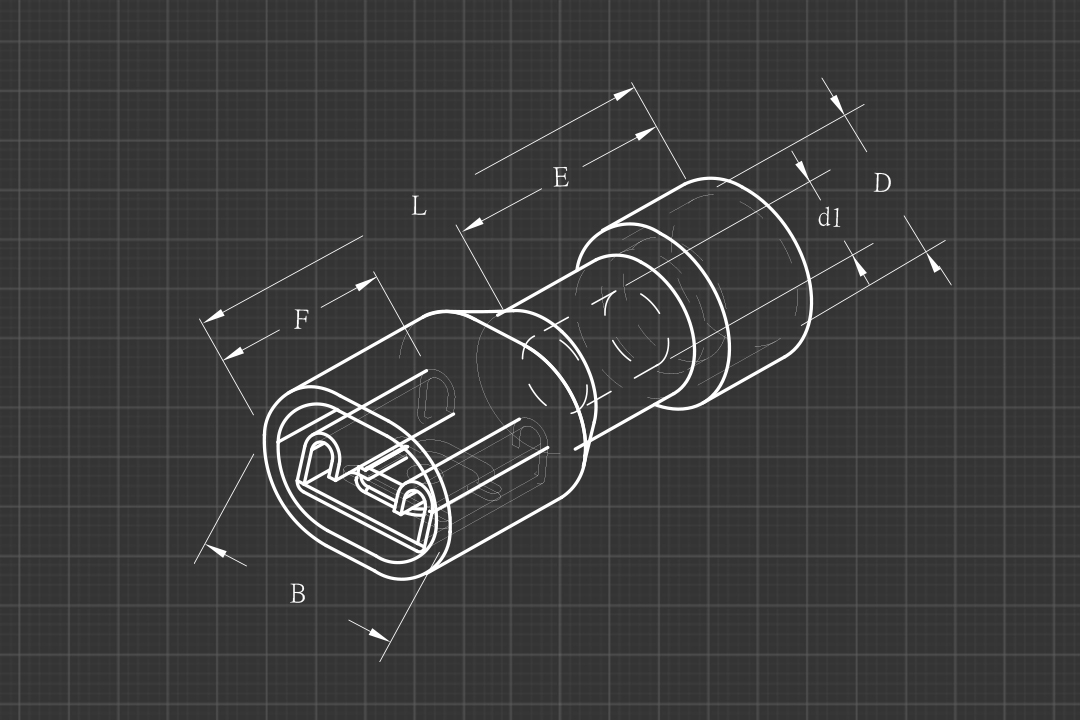

Item No. Wire Range
AWG/mm²		 To Fit
Tab Size		 b L F E D d1
LVD1-2.8F5C 22~16 AWG
0.5~1.5mm²		 .020*.110 (0.5*2.8) .122(3.1) .748(19.0) .256(6.5) .413(10.5) .157(4.0) .075(1.9)
LVD1-2.8F8C 22~16 AWG
0.5~1.5mm²		 .032*.110 (0.8*2.8) .122(3.1) .748(19.0) .256(6.5) .413(10.5) .157(4.0) .075(1.9)
LVD2-2.8F5C 16~14 AWG
1.5~2.5mm²		 .020*.110 (0.5*2.8) .311(7.9) .787(20.0) .256(6.5) .413(10.5) .177(4.5) .102(2.6)
LVD2-2.8F8C 16~14 AWG
1.5~2.5mm²		 .032*.110 (0.8*2.8) .311(7.9) .787(20.0) .256(6.5) .413(10.5) .177(4.5) .102(2.6)
Item No. Wire Range
AWG/mm²		 To Fit
Tab Size		 b L F E D d1
LVD1-4.8F5 22~16 AWG
0.5~1.5mm²		 .020*.187 (0.5*4.8) .311(7.9) .787(20.0) .256(6.5) .413(10.5) .157(4.0) .075(1.9)
LVD1-4.8F8 22~16 AWG
0.5~1.5mm²		 .032*.187 (0.8*4.8) .311(7.9) .787(20.0) .256(6.5) .413(10.5) .157(4.0) .075(1.9)
LVD2-4.8F5 16~14 AWG
1.5~2.5mm²		 .020*.187 (0.5*4.8) .311(7.9) .787(20.0) .256(6.5) .413(10.5) .177(4.5) .102(2.6)
LVD2-4.8F8 16~14 AWG
1.5~2.5mm²		 .032*.187 (0.8*4.8) .311(7.9) .787(20.0) .256(6.5) .413(10.5) .177(4.5) .102(2.6)
Item No. Wire Range
AWG/mm²		 To Fit
Tab Size		 b L F E D d1
LVD1-4.8F5C 22~16 AWG
0.5~1.5mm²		 .020*.187 (0.5*4.8) .311(7.9) .748(19.0) .256(6.5) .413(10.5) .157(4.0) .075(1.9)
LVD1-4.8F8C 22~16 AWG
0.5~1.5mm²		 .032*.187 (0.8*4.8) .311(7.9) .787(20.0) .256(6.5) .413(10.5) .157(4.0) .075(1.9)
LVD2-4.8F5C 16~14 AWG
1.5~2.5mm²		 .020*.187 (0.5*4.8) .311(7.9) .787(20.0) .256(6.5) .413(10.5) .157(4.0) .102(2.6)
LVD2-4.8F8C 16~14 AWG
1.5~2.5mm²		 .032*.187 (0.8*4.8) .311(7.9) .787(20.0) .256(6.5) .413(10.5) .157(4.0) .102(2.6)
Item No. Wire Range
AWG/mm²		 To Fit
Tab Size		 b L F E D d1
LVD1-6.3F 22~16 AWG
0.5~1.5mm²		 .032*.250 (0.8*6.3) .260(6.6) .866(22.0) .315(8.0) .413(10.5) .157(4.0) .075(1.9)
LVD2-6.3F 16~14 AWG
1.5~2.5mm²		 .032*.250 (0.8*6.3) .260(6.6) .866(22.0) .315(8.0) .413(10.5) .177(4.5) .102(2.6)
LVD5-6.3F 12~10 AWG
4~6mm²		 .032*.250 (0.8*6.3) .260(6.6) .906(23.0) .315(8.0) .433(11.0) .217(5.5) .142(3.6)
Item No. Wire Range
AWG/mm²		 To Fit
Tab Size		 b L F E D d1
LVD1-6.3FC 22~16 AWG
0.5~1.5mm²		 .032*.250 (0.8*6.3) .260(6.6) .866(22.0) .315(8.0) .413(10.5) .157(4.0) .075(1.9)
LVD2-6.3FC 16~14 AWG
1.5~2.5mm²		 .032*.250 (0.8*6.3) .260(6.6) .866(22.0) .315(8.0) .413(10.5) .197(5.0) .102(2.6)
LVD5-6.3FC 12~10 AWG
4~6mm²		 .032*.250 (0.8*6.3) .260(6.6) .945(24.5) .315(8.0) .512(13.0) .268(6.8) .142(3.6)
Item No. Wire Range
AWG/mm²		 To Fit
Tab Size		 b L F E D d1
ILND1-6.3FC 22~16 AWG
0.5~1.5mm²		 .032*.250 (0.8*6.3) .260(6.6) .846(21.5) .315(8.0) .413(10.5) .157(4.0) .075(1.9)
ILND2-6.3FC 16~14 AWG
1.5~2.5mm²		 .032*.250 (0.8*6.3) .260(6.6) .846(21.5) .315(8.0) .413(10.5) .197(5.0) .102(2.6)
ILND5-6.3FC 12~10 AWG
4~6mm²		 .032*.250 (0.8*6.3) .260(6.6) .945(24.0) .315(8.0) .512(13.0) .268(6.8) .142(3.6)
