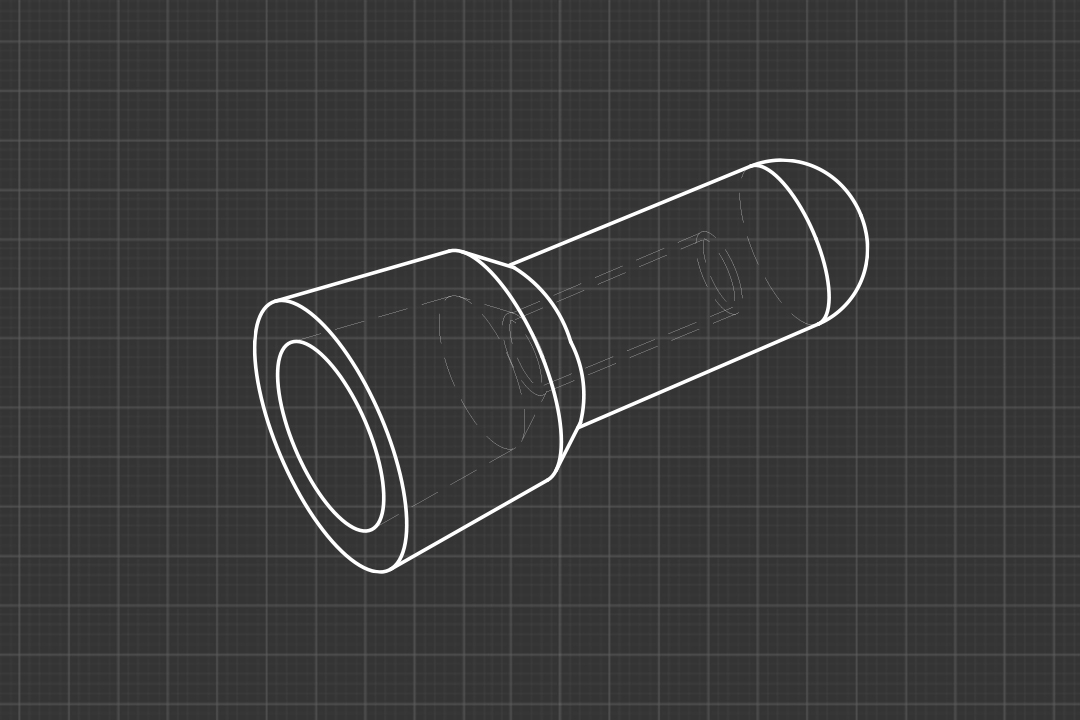

Closed End Connector

Closed End Connector

Closed-end connectors are designed to securely join multiple wires, providing reliable and safe electrical connections in residential, automotive, and industrial applications.

Material : Nylon 6-6 extruded insulating sleeve
Voltage Resistance Rating: 300 V
Temperature Rating: 105°C (221°F)
Features: Pre-insulated design with flame-retardant material, easy crimp installation, and durable construction.
User Benefits: Ensures a secure connection, prevents electrical short circuits, and saves time with quick, tool-free assembly.

Item No. Wire Range
CHWC3 22-16AWG 0.5-1.75mm²
CHWC4 16-14AWG 1.0-3.0mm²
CHWC5 12-10AWG 2.5-6.0mm²
CHWC8 8AWG 4.0-9.0mm²
Item No. Wire Range
AWG/mm²
SDB-1 22-16AWG 0.5-1.75mm²
SDB-2 16-14AWG 1.0-3.0mm²
SDB-5 12-10AWG 2.5-6.0mm²
