Ring Terminal - Insulated
Ring Terminal - Insulated
PreviousNext
123

Insulated Ring terminals are electrical connectors used to attach wires to studs or bolts, ensuring secure and reliable connections. They are commonly utilized in automotive, electronics, industrial equipment, household appliances, and marine applications.

Material: 99.9% electrolytic copper / insulation options PVC, PC, Nylon
Operating Temperature: 80°C (determined by the insulation material)
Voltage Withstand: copper 600V
Flammability: UL-94 V0
Surface: Tin-plated
UL, RoHS, REACH certified products

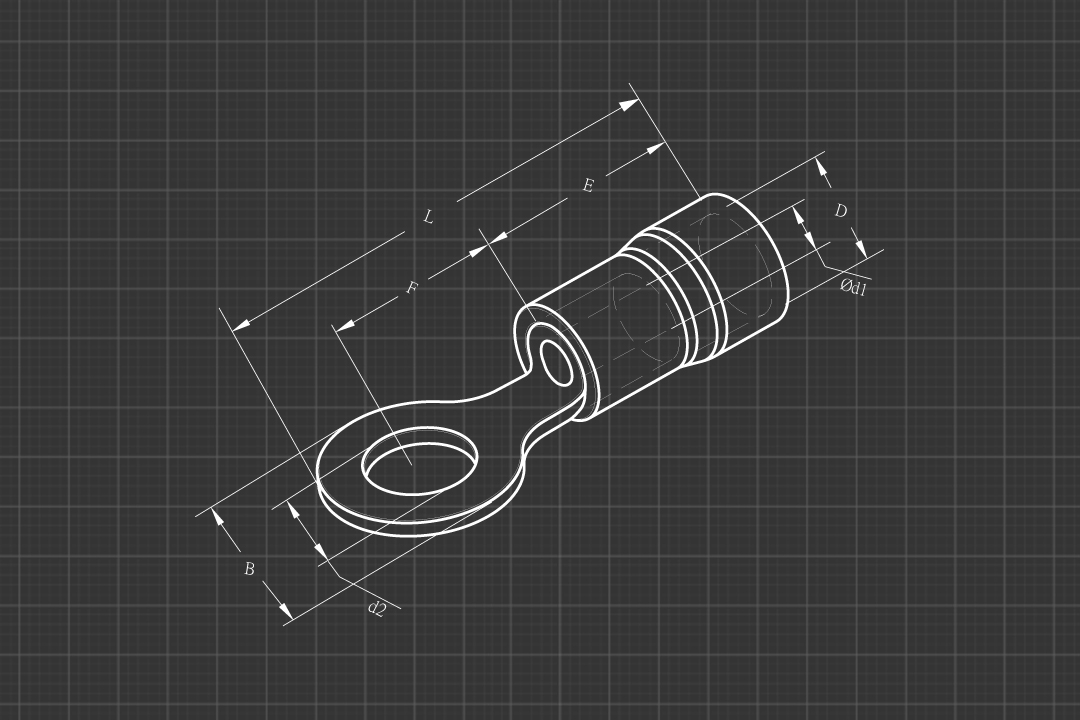

Item No. Wire Range
AWG/mm²		 Stud Size b L F E D d1
d2
VR1-2 22~16AWG
0.5~1.5mm²		 #2(2.2) .217(5.5) .669(17.0) .187(4.75) .374(9.5) .157(4.0) .067(1.7)
VR1-3.2 22~16AWG
0.5~1.5mm²		 #4(3.2) .217(5.5) .669(17.0) .187(4.75) .374(9.5) .157(4.0) .067(1.7)
VR1-3.2L 22~16AWG
0.5~1.5mm²		 #4(3.2) .315(8.0) .807(20.5) .276(7.0) .374(9.5) .157(4.0) .067(1.7)
VR1-3 22~16AWG
0.5~1.5mm²		 #6(3.7) .217(5.5) .669(17.0) .187(4.75) .374(9.5) .157(4.0) .067(1.7)
VR1-3M 22~16AWG
0.5~1.5mm²		 #6(3.7) .259(6.6) .752(19.1) .248(6.3) .374(9.5) .157(4.0) .067(1.7)
VR1-3L 22~16AWG
0.5~1.5mm²		 #6(3.7) .315(8.0) .807(20.5) .276(7.0) .374(9.5) .157(4.0) .067(1.7)
VR1-4M 22~16AWG
0.5~1.5mm²		 #8(4.3) .259(6.6) .752(19.1) .248(6.3) .374(9.5) .157(4.0) .067(1.7)
VR1-4 22~16AWG
0.5~1.5mm²		 #8(4.3) .315(8.0) .807(20.5) .276(7.0) .374(9.5) .157(4.0) .067(1.7)
VR1-5 22~16AWG
0.5~1.5mm²		 #10(5.3) .315(8.0) .807(20.5) .276(7.0) .374(9.5) .157(4.0) .067(1.7)
VR1-6 22~16AWG
0.5~1.5mm²		 1/4(6.4) .457(11.6) .984(25.0) .382(9.7) .374(9.5) .157(4.0) .067(1.7)
VR1-8 22~16AWG
0.5~1.5mm²		 5/16(8.4) .457(11.6) .984(25.0) .382(9.7) .374(9.5) .157(4.0) .067(1.7)
VR1-10 22~16AWG
0.5~1.5mm²		 3/8(10.5) .551(14.0) 1.122(28.5) .472(12.0) .374(9.5) .157(4.0) .067(1.7)
VR2-2 16~14AWG
1.5~2.5mm²		 #2(2.2) .252(6.4) .689(17.5) .169(4.3) .394(10.0) .177(4.5) .091(2.3)
VR2-3.2 16~14AWG
1.5~2.5mm²		 #4(3.2) .252(6.4) .689(17.5) .169(4.3) .394(10.0) .177(4.5) .091(2.3)
VR2-3.2L 16~14AWG
1.5~2.5mm²		 #4(3.2) .335(8.5) .866(22.0) .305(7.75) .394(10.0) .177(4.5) .091(2.3)
VR2-3 16~14AWG
1.5~2.5mm²		 #6(3.7) .252(6.4) .689(17.5) .169(4.3) .394(10.0) .177(4.5) .091(2.3)
VR2-3M 16~14AWG
1.5~2.5mm²		 #6(3.7) .259(6.6) .772(19.6) .248(6.3) .394(10.0) .177(4.5) .091(2.3)
VR2-3L 16~14AWG
1.5~2.5mm²		 #6(3.7) .335(8.5) .866(22.0) .305(7.75) .394(10.0) .177(4.5) .091(2.3)
VR2-4M 16~14AWG
1.5~2.5mm²		 #8(4.3) .259(6.6) .772(19.6) .248(6.3) .394(10.0) .177(4.5) .091(2.3)
VR2-4 16~14AWG
1.5~2.5mm²		 #8(4.3) .335(8.5) .866(22.0) .305(7.75) .394(10.0) .177(4.5) .091(2.3)
VR2-5 16~14AWG
1.5~2.5mm²		 #10(5.3) .335(8.5) .866(22.0) .305(7.75) .394(10.0) .177(4.5) .091(2.3)
VR2-5L 16~14AWG
1.5~2.5mm²		 #10(5.3) .374(9.5) .866(22.0) .285(7.25) .394(10.0) .177(4.5) .091(2.3)
VR2-6 16~14AWG
1.5~2.5mm²		 1/4(6.4) .472(12.0) 1.063(27.0) .433(11.0) .394(10.0) .177(4.5) .091(2.3)
VR2-8 16~14AWG
1.5~2.5mm²		 5/16(8.4) .472(12.0) 1.063(27.0) .433(11.0) .394(10.0) .177(4.5) .091(2.3)
VR2-10 16~14AWG
1.5~2.5mm²		 3/8(10.5) .551(14.0) 1.142(29.0) .472(12.0) .394(10.0) .177(4.5) .091(2.3)
VR5-3.2 12~10AWG
4~6mm²		 #4(3.2) .374(9.5) 1.024(26.0) .325(8.25) .512(13.0) .252(6.4) .134(3.4)
VR5-3S 12~10AWG
4~6mm²		 #6(3.7) .283(7.2) .886(22.5) .232(5.9) .512(13.0) .252(6.4) .134(3.4)
VR5-3 12~10AWG
4~6mm²		 #6(3.7) .374(9.5) 1.024(26.0) .325(8.25) .512(13.0) .252(6.4) .134(3.4)
VR5-4S 12~10AWG
4~6mm²		 #8(4.3) .374(9.5) .886(22.5) .232(5.9) .512(13.0) .252(6.4) .134(3.4)
VR5-4 12~10AWG
4~6mm²		 #8(4.3) .374(9.5) 1.024(26.0) .325(8.25) .512(13.0) .252(6.4) .134(3.4)
VR5-5 12~10AWG
4~6mm²		 #10(5.3) .374(9.5) 1.024(26.0) .325(8.25) .512(13.0) .252(6.4) .134(3.4)
VR5-6 12~10AWG
4~6mm²		 1/4(6.4) .472(12.0) 1.161(29.5) .413(10.5) .512(13.0) .252(6.4) .134(3.4)
VR5-8 12~10AWG
4~6mm²		 5/16(8.4) .591(15.0) 1.339(34.0) .531(13.5) .512(13.0) .252(6.4) .134(3.4)
VR5-10 12~10AWG
4~6mm²		 3/8(10.5) .591(15.0) 1.339(34.0) .531(13.5) .512(13.0) .252(6.4) .134(3.4)
VR5-12 12~10AWG
4~6mm²		 1/2(13.0) .748(19.0) 1.673(42.5) .787(20.0) .512(13.0) .252(6.4) .134(3.4)
Item No. Wire Range
AWG/mm²		 Stud Size b L F E D d1
d2
INR1-2 22~16AWG
0.5~1.5mm²		 #2(2.2) .217(5.5) .740(18.8) .187(4.75) .445(11.3) 0.169(4.3) .067(1.7)
INR1-3.2 22~16AWG
0.5~1.5mm²		 #4(3.2) .217(5.5) .740(18.8) .187(4.75) .445(11.3) 0.169(4.3) .067(1.7)
INR1-3.2L 22~16AWG
0.5~1.5mm²		 #4(3.2) .315(8.0) .878(22.3) .276(7.0) .445(11.3) 0.169(4.3) .067(1.7)
INR1-3 22~16AWG
0.5~1.5mm²		 #6(3.7) .217(5.5) .740(18.8) .187(4.75) .445(11.3) 0.169(4.3) .067(1.7)
INR1-3M 22~16AWG
0.5~1.5mm²		 #6(3.7) .259(6.6) 1.025(20.9) .248(6.3) .445(11.3) 0.169(4.3) .067(1.7)
INR1-3L 22~16AWG
0.5~1.5mm²		 #6(3.7) .315(8.0) .807(20.5) .276(7.0) .445(11.3) 0.169(4.3) .067(1.7)
INR1-4M 22~16AWG
0.5~1.5mm²		 #8(4.3) .259(6.6) 1.025(20.9) .248(6.3) .445(11.3) 0.169(4.3) .067(1.7)
INR1-4 22~16AWG
0.5~1.5mm²		 #8(4.3) .315(8.0) .878(22.3) .276(7.0) .445(11.3) 0.169(4.3) .067(1.7)
INR1-5 22~16AWG
0.5~1.5mm²		 #10(5.3) .315(8.0) .878(22.3) .276(7.0) .445(11.3) 0.169(4.3) .067(1.7)
INR1-6 22~16AWG
0.5~1.5mm²		 1/4(6.4) .457(11.6) .1.055(26.8) .382(9.7) .445(11.3) 0.169(4.3) .067(1.7)
INR1-8 22~16AWG
0.5~1.5mm²		 5/16(8.4) .457(11.6) .1.055(26.8) .382(9.7) .445(11.3) 0.169(4.3) .067(1.7)
INR1-10 22~16AWG
0.5~1.5mm²		 3/8(10.5) .551(14.0) 1.192(30.3) .472(12.0) .445(11.3) 0.169(4.3) .067(1.7)
INR2-2 16~14AWG
1.5~2.5mm²		 #2(2.2) .252(6.4) .740(18.8) .169(4.3) .445(11.3) .197(5.0) .091(2.3)
INR2-3.2 16~14AWG
1.5~2.5mm²		 #4(3.2) .252(6.4) .740(18.8) .169(4.3) .445(11.3) .197(5.0) .091(2.3)
INR2-3.2L 16~14AWG
1.5~2.5mm²		 #4(3.2) .335(8.5) .917(23.3) .305(7.75) .445(11.3) .197(5.0) .091(2.3)
INR2-3 16~14AWG
1.5~2.5mm²		 #6(3.7) .252(6.4) .740(18.8) .169(4.3) .445(11.3) .197(5.0) .091(2.3)
INR2-3M 16~14AWG
1.5~2.5mm²		 #6(3.7) .259(6.6) 1.025(20.9) .248(6.3) .445(11.3) .197(5.0) .091(2.3)
INR2-3L 16~14AWG
1.5~2.5mm²		 #6(3.7) .335(8.5) .917(23.3) .305(7.75) .445(11.3) .197(5.0) .091(2.3)
INR2-4M 16~14AWG
1.5~2.5mm²		 #8(4.3) .259(6.6) 1.025(20.9) .248(6.3) .445(11.3) .197(5.0) .091(2.3)
INR2-4 16~14AWG
1.5~2.5mm²		 #8(4.3) .335(8.5) .917(23.3) .305(7.75) .445(11.3) .197(5.0) .091(2.3)
INR2-5 16~14AWG
1.5~2.5mm²		 #10(5.3) .335(8.5) .917(23.3) .305(7.75) .445(11.3) .197(5.0) .091(2.3)
INR2-5L 16~14AWG
1.5~2.5mm²		 #10(5.3) .374(9.5) .917(23.3) .285(7.25) .445(11.3) .197(5.0) .091(2.3)
INR2-6 16~14AWG
1.5~2.5mm²		 1/4(6.4) .472(12.0) 1.114(28.3) .433(11.0) .445(11.3) .197(5.0) .091(2.3)
INR2-8 16~14AWG
1.5~2.5mm²		 5/16(8.4) .472(12.0) 1.114(28.3) .433(11.0) .445(11.3) .197(5.0) .091(2.3)
INR2-10 16~14AWG
1.5~2.5mm²		 3/8(10.5) .551(14.0) 1.192(30.3) .472(12.0) .445(11.3) .197(5.0) .091(2.3)
INR5-3.2 12~10AWG
4~6mm²		 #4(3.2) .374(9.5) 1.069(27.15) .325(8.25) 0.557(14.15) .256(6.5) .134(3.4)
INR5-3S 12~10AWG
4~6mm²		 #6(3.7) .283(7.2) .931(23.65) .232(5.9) 0.557(14.15) .256(6.5) .134(3.4)
INR5-3 12~10AWG
4~6mm²		 #6(3.7) .374(9.5) 1.069(27.15) .325(8.25) 0.557(14.15) .256(6.5) .134(3.4)
INR5-4S 12~10AWG
4~6mm²		 #8(4.3) .283(7.2) .931(23.65) .232(5.9) 0.557(14.15) .256(6.5) .134(3.4)
INR5-4 12~10AWG
4~6mm²		 #8(4.3) .374(9.5) 1.069(27.15) .325(8.25) 0.557(14.15) .256(6.5) .134(3.4)
INR5-5 12~10AWG
4~6mm²		 #10(5.3) .374(9.5) 1.069(27.15) .325(8.25) 0.557(14.15) .256(6.5) .134(3.4)
INR5-6 12~10AWG
4~6mm²		 1/4(6.5) .472(12.0) 1.206(30.65) .413(10.5) 0.557(14.15) .256(6.5) .134(3.4)
INR5-8 12~10AWG
4~6mm²		 5/16(8.4) .591(15.0) 1.384(35.15) .531(13.5) 0.557(14.15) .256(6.5) .134(3.4)
INR5-10 12~10AWG
4~6mm²		 3/8(10.5) .591(15.0) 1.384(35.15) .531(13.5) 0.557(14.15) .256(6.5) .134(3.4)
INR5-12 12~10AWG
4~6mm²		 1/2(13.0) .748(19.0) 1.719(43.65) .787(20.0) 0.557(14.15) .256(6.5) .134(3.4)
Item No. Wire Range
AWG/mm²		 Stud Size b L F E D d1
d2
IMR1-2 22~16AWG
0.5~1.5mm²		 #2(2.2) .217(5.5) .740(18.8) .187(4.75) .445(11.3) 0.169(4.3) .067(1.7)
IMR1-3.2 22~16AWG
0.5~1.5mm²		 #4(3.2) .217(5.5) .740(18.8) .187(4.75) .445(11.3) 0.169(4.3) .067(1.7)
IMR1-3.2L 22~16AWG
0.5~1.5mm²		 #4(3.2) .315(8.0) .878(22.3) .276(7.0) .445(11.3) 0.169(4.3) .067(1.7)
IMR1-3 22~16AWG
0.5~1.5mm²		 #6(3.7) .217(5.5) .740(18.8) .187(4.75) .445(11.3) 0.169(4.3) .067(1.7)
IMR1-3M 22~16AWG
0.5~1.5mm²		 #6(3.7) .259(6.6) 1.025(20.9) .248(6.3) .445(11.3) 0.169(4.3) .067(1.7)
IMR1-3L 22~16AWG
0.5~1.5mm²		 #6(3.7) .315(8.0) .807(20.5) .276(7.0) .445(11.3) 0.169(4.3) .067(1.7)
IMR1-4M 22~16AWG
0.5~1.5mm²		 #8(4.3) .259(6.6) 1.025(20.9) .248(6.3) .445(11.3) 0.169(4.3) .067(1.7)
IMR1-4 22~16AWG
0.5~1.5mm²		 #8(4.3) .315(8.0) .878(22.3) .276(7.0) .445(11.3) 0.169(4.3) .067(1.7)
IMR1-5 22~16AWG
0.5~1.5mm²		 #10(5.3) .315(8.0) .878(22.3) .276(7.0) .445(11.3) 0.169(4.3) .067(1.7)
IMR1-6 22~16AWG
0.5~1.5mm²		 1/4(6.4) .457(11.6) .1.055(26.8) .382(9.7) .445(11.3) 0.169(4.3) .067(1.7)
IMR1-8 22~16AWG
0.5~1.5mm²		 5/16(8.4) .457(11.6) .1.055(26.8) .382(9.7) .445(11.3) 0.169(4.3) .067(1.7)
IMR1-10 22~16AWG
0.5~1.5mm²		 3/8(10.5) .551(14.0) 1.192(30.3) .472(12.0) .445(11.3) 0.169(4.3) .067(1.7)
IMR2-2 16~14AWG
1.5~2.5mm²		 #2(2.2) .252(6.4) .740(18.8) .169(4.3) .445(11.3) .197(5.0) .091(2.3)
IMR2-3.2 16~14AWG
1.5~2.5mm²		 #4(3.2) .252(6.4) .740(18.8) .169(4.3) .445(11.3) .197(5.0) .091(2.3)
IMR2-3.2L 16~14AWG
1.5~2.5mm²		 #4(3.2) .335(8.5) .917(23.3) .305(7.75) .445(11.3) .197(5.0) .091(2.3)
IMR2-3 16~14AWG
1.5~2.5mm²		 #6(3.7) .252(6.4) .740(18.8) .169(4.3) .445(11.3) .197(5.0) .091(2.3)
IMR2-3M 16~14AWG
1.5~2.5mm²		 #6(3.7) .259(6.6) 1.025(20.9) .248(6.3) .445(11.3) .197(5.0) .091(2.3)
IMR2-3L 16~14AWG
1.5~2.5mm²		 #6(3.7) .335(8.5) .917(23.3) .305(7.75) .445(11.3) .197(5.0) .091(2.3)
IMR2-4M 16~14AWG
1.5~2.5mm²		 #8(4.3) .259(6.6) 1.025(20.9) .248(6.3) .445(11.3) .197(5.0) .091(2.3)
IMR2-4 16~14AWG
1.5~2.5mm²		 #8(4.3) .335(8.5) .917(23.3) .305(7.75) .445(11.3) .197(5.0) .091(2.3)
IMR2-5 16~14AWG
1.5~2.5mm²		 #10(5.3) .335(8.5) .917(23.3) .305(7.75) .445(11.3) .197(5.0) .091(2.3)
IMVR2-5L 16~14AWG
1.5~2.5mm²		 #10(5.3) .374(9.5) .917(23.3) .285(7.25) .445(11.3) .197(5.0) .091(2.3)
IMR2-6 16~14AWG
1.5~2.5mm²		 1/4(6.4) .472(12.0) 1.114(28.3) .433(11.0) .445(11.3) .197(5.0) .091(2.3)
IMR2-8 16~14AWG
1.5~2.5mm²		 5/16(8.4) .472(12.0) 1.114(28.3) .433(11.0) .445(11.3) .197(5.0) .091(2.3)
IMR2-10 16~14AWG
1.5~2.5mm²		 3/8(10.5) .551(14.0) 1.192(30.3) .472(12.0) .445(11.3) .197(5.0) .091(2.3)
IMR5-3.2 12~10AWG
4~6mm²		 #4(3.2) .374(9.5) 1.069(27.15) .325(8.25) 0.557(14.15) .256(6.5) .134(3.4)
IMR5-3S 12~10AWG
4~6mm²		 #6(3.7) .283(7.2) .931(23.65) .232(5.9) 0.557(14.15) .256(6.5) .134(3.4)
IMR5-3 12~10AWG
4~6mm²		 #6(3.7) .374(9.5) 1.069(27.15) .325(8.25) 0.557(14.15) .256(6.5) .134(3.4)
IMR5-4S 12~10AWG
4~6mm²		 #8(4.3) .283(7.2) .931(23.65) .232(5.9) 0.557(14.15) .256(6.5) .134(3.4)
IMR5-4 12~10AWG
4~6mm²		 #8(4.3) .374(9.5) 1.069(27.15) .325(8.25) 0.557(14.15) .256(6.5) .134(3.4)
IMR5-5 12~10AWG
4~6mm²		 #10(5.3) .374(9.5) 1.069(27.15) .325(8.25) 0.557(14.15) .256(6.5) .134(3.4)
IMR5-6 12~10AWG
4~6mm²		 1/4(6.5) .472(12.0) 1.206(30.65) .413(10.5) 0.557(14.15) .256(6.5) .134(3.4)
IMR5-8 12~10AWG
4~6mm²		 5/16(8.4) .591(15.0) 1.384(35.15) .531(13.5) 0.557(14.15) .256(6.5) .134(3.4)
IMR5-10 12~10AWG
4~6mm²		 3/8(10.5) .591(15.0) 1.384(35.15) .531(13.5) 0.557(14.15) .256(6.5) .134(3.4)
IMR5-12 12~10AWG
4~6mm²		 1/2(13.0) .748(19.0) 1.719(43.65) .787(20.0) 0.557(14.15) .256(6.5) .134(3.4)
Item No. Wire Range
AWG/mm²		 Stud Size b B1 L E D d1
d2
IVR1-2 22~16AWG
0.5~1.5mm²		 #2(2.2) .217(5.5) .740(18.8) .187(4.75) .445(11.3) .157(4.0) .067(1.7)
IVR1-3.2 22~16AWG
0.5~1.5mm²		 #4(3.2) .217(5.5) .740(18.8) .187(4.75) .445(11.3) .157(4.0) .067(1.7)
IVR1-3.2L 22~16AWG
0.5~1.5mm²		 #4(3.2) .315(8.0) .878(22.3) .276(7.0) .445(11.3) .157(4.0) .067(1.7)
IVR1-3 22~16AWG
0.5~1.5mm²		 #6(3.7) .217(5.5) .740(18.8) .187(4.75) .445(11.3) .157(4.0) .067(1.7)
IVR1-3M 22~16AWG
0.5~1.5mm²		 #6(3.7) .259(6.6) 1.025(20.9) .248(6.3) .445(11.3) .157(4.0) .067(1.7)
IVR1-3L 22~16AWG
0.5~1.5mm²		 #6(3.7) .315(8.0) .807(20.5) .276(7.0) .445(11.3) .157(4.0) .067(1.7)
IVR1-4M 22~16AWG
0.5~1.5mm²		 #8(4.3) .259(6.6) 1.025(20.9) .248(6.3) .445(11.3) .157(4.0) .067(1.7)
IVR1-4 22~16AWG
0.5~1.5mm²		 #8(4.3) .315(8.0) .878(22.3) .276(7.0) .445(11.3) .157(4.0) .067(1.7)
IVR1-5 22~16AWG
0.5~1.5mm²		 #10(5.3) .315(8.0) .878(22.3) .276(7.0) .445(11.3) .157(4.0) .067(1.7)
IVR1-6 22~16AWG
0.5~1.5mm²		 1/4(6.4) .457(11.6) .1.055(26.8) .382(9.7) .445(11.3) .157(4.0) .067(1.7)
IVR1-8 22~16AWG
0.5~1.5mm²		 5/16(8.4) .457(11.6) .1.055(26.8) .382(9.7) .445(11.3) .157(4.0) .067(1.7)
IVR1-10 22~16AWG
0.5~1.5mm²		 3/8(10.5) .551(14.0) 1.192(30.3) .472(12.0) .445(11.3) .157(4.0) .067(1.7)
IVR2-2 16~14AWG
1.5~2.5mm²		 #2(2.2) .252(6.4) .740(18.8) .169(4.3) .445(11.3) .177(4.5) .091(2.3)
IVR2-3.2 16~14AWG
1.5~2.5mm²		 #4(3.2) .252(6.4) .740(18.8) .169(4.3) .445(11.3) .177(4.5) .091(2.3)
IVR2-3.2L 16~14AWG
1.5~2.5mm²		 #4(3.2) .335(8.5) .917(23.3) .305(7.75) .445(11.3) .177(4.5) .091(2.3)
IVR2-3 16~14AWG
1.5~2.5mm²		 #6(3.7) .252(6.4) .740(18.8) .169(4.3) .445(11.3) .177(4.5) .091(2.3)
VR2-3M 16~14AWG
1.5~2.5mm²		 #6(3.7) .259(6.6) 1.025(20.9) .248(6.3) .445(11.3) .177(4.5) .091(2.3)
VR2-3L 16~14AWG
1.5~2.5mm²		 #6(3.7) .335(8.5) .917(23.3) .305(7.75) .445(11.3) .177(4.5) .091(2.3)
IVR2-4M 16~14AWG
1.5~2.5mm²		 #8(4.3) .259(6.6) 1.025(20.9) .248(6.3) .445(11.3) .177(4.5) .091(2.3)
IVR2-4 16~14AWG
1.5~2.5mm²		 #8(4.3) .335(8.5) .917(23.3) .305(7.75) .445(11.3) .177(4.5) .091(2.3)
IVR2-5 16~14AWG
1.5~2.5mm²		 #10(5.3) .335(8.5) .917(23.3) .305(7.75) .445(11.3) .177(4.5) .091(2.3)
IVR2-5L 16~14AWG
1.5~2.5mm²		 #10(5.3) .374(9.5) .917(23.3) .285(7.25) .445(11.3) .177(4.5) .091(2.3)
IVR2-6 16~14AWG
1.5~2.5mm²		 1/4(6.4) .472(12.0) 1.114(28.3) .433(11.0) .445(11.3) .177(4.5) .091(2.3)
IVR2-8 16~14AWG
1.5~2.5mm²		 5/16(8.4) .472(12.0) 1.114(28.3) .433(11.0) .445(11.3) .177(4.5) .091(2.3)
IVR2-10 16~14AWG
1.5~2.5mm²		 3/8(10.5) .551(14.0) 1.192(30.3) .472(12.0) .445(11.3) .177(4.5) .091(2.3)
IVR5-3.2 12~10AWG
4~6mm²		 #4(3.2) .374(9.5) 1.069(27.15) .325(8.25) 0.557(14.15) .252(6.4) .134(3.4)
IVR5-3S 12~10AWG
4~6mm²		 #6(3.7) .283(7.2) .931(23.65) .232(5.9) 0.557(14.15) .252(6.4) .134(3.4)
IVR5-3 12~10AWG
4~6mm²		 #6(3.7) .374(9.5) 1.069(27.15) .325(8.25) 0.557(14.15) .252(6.4) .134(3.4)
IVR5-4S 12~10AWG
4~6mm²		 #8(4.3) .283(7.2) .931(23.65) .232(5.9) 0.557(14.15) .252(6.4) .134(3.4)
IVR5-4 12~10AWG
4~6mm²		 #8(4.3) .374(9.5) 1.069(27.15) .325(8.25) 0.557(14.15) .252(6.4) .134(3.4)
IVR5-5 12~10AWG
4~6mm²		 #10(5.3) .374(9.5) 1.069(27.15) .325(8.25) 0.557(14.15) .252(6.4) .134(3.4)
IVR5-6 12~10AWG
4~6mm²		 1/4(6.5) .472(12.0) 1.206(30.65) .413(10.5) 0.557(14.15) .252(6.4) .134(3.4)
IVR5-8 12~10AWG
4~6mm²		 5/16(8.4) .591(15.0) 1.384(35.15) .531(13.5) 0.557(14.15) .252(6.4) .134(3.4)
IVR5-10 12~10AWG
4~6mm²		 3/8(10.5) .591(15.0) 1.384(35.15) .531(13.5) 0.557(14.15) .252(6.4) .134(3.4)
IVR5-12 12~10AWG
4~6mm²		 1/2(13.0) .748(19.0) 1.719(43.65) .787(20.0) 0.557(14.15) .252(6.4) .134(3.4)
Item No. Wire Range
AWG/mm²		 Stud Size b L F E D d1
d2
VR1-2D 22~16AWG
0.5~1.5mm²		 #2(2.2) .217(5.5) .472(12.0) .187(4.75) .177 (4.5) .177 (4.5) .075 (1.9)
VR1-3.2D 22~16AWG
0.5~1.5mm²		 #4(3.2) .217(5.5) .472(12.0) .187(4.75) .177 (4.5) .177 (4.5) .075 (1.9)
VR1-3.2LD 22~16AWG
0.5~1.5mm²		 #4(3.2) .315(8.0) .610(15.5) .276(7.0) .177 (4.5) .177 (4.5) .075 (1.9)
VR1-3D 22~16AWG
0.5~1.5mm²		 #6(3.7) .217(5.5) .472(12.0) .187(4.75) .177 (4.5) .177 (4.5) .075 (1.9)
VR1-3MD 22~16AWG
0.5~1.5mm²		 #6(3.7) .260(6.6) .555(14.1) .248(6.3) .177 (4.5) .177 (4.5) .075 (1.9)
VR1-3LD 22~16AWG
0.5~1.5mm²		 #6(3.7) .315(8.0) .610(15.5) .276(7.0) .177 (4.5) .177 (4.5) .075 (1.9)
VR1-4MD 22~16AWG
0.5~1.5mm²		 #8(4.3) .260(6.6) .555(14.1) .248(6.3) .177 (4.5) .177 (4.5) .075 (1.9)
VR1-4D 22~16AWG
0.5~1.5mm²		 #8(4.3) .315(8.0) .610(15.5) .276(7.0) .177 (4.5) .177 (4.5) .075 (1.9)
VR1-5D 22~16AWG
0.5~1.5mm²		 #10(5.3) .315(8.0) .610(15.5) .276(7.0) .177 (4.5) .177 (4.5) .075 (1.9)
VR1-6D 22~16AWG
0.5~1.5mm²		 1/4(6.4) .457(11.6) .787(20.0) .382(9.7) .177 (4.5) .177 (4.5) .075 (1.9)
VR1-8D 22~16AWG
0.5~1.5mm²		 5/16(8.4) .457(11.6) .787(20.0) .382(9.7) .177 (4.5) .177 (4.5) .075 (1.9)
VR1-10D 22~16AWG
0.5~1.5mm²		 3/8(10.5) .551(14.0) .945(24.0) .472(12.0) .177 (4.5) .177 (4.5) .075 (1.9)
VR2-2D 16~14AWG
1.5~2.5mm²		 #2(2.2) .252(6.4) .472(12.0) .169(4.3) .177 (4.5) .205 (5.2) .102 (2.6)
VR2-3.2D 16~14AWG
1.5~2.5mm²		 #4(3.2) .252(6.4) .472(12.0) .169(4.3) .177 (4.5) .205 (5.2) .102 (2.6)
VR2-3.2LD 16~14AWG
1.5~2.5mm²		 #4(3.2) .335(8.5) .650(16.5) .305(7.75) .177 (4.5) .205 (5.2) .102 (2.6)
VR2-3D 16~14AWG
1.5~2.5mm²		 #6(3.7) .252(6.4) .472(12.0) .169(4.3) .177 (4.5) .205 (5.2) .102 (2.6)
VR2-3MD 16~14AWG
1.5~2.5mm²		 #6(3.7) .260(6.6) .555(14.1) .248(6.3) .177 (4.5) .205 (5.2) .102 (2.6)
VR2-3LD 16~14AWG
1.5~2.5mm²		 #6(3.7) .335(8.5) .650(16.5) .305(7.75) .177 (4.5) .205 (5.2) .102 (2.6)
VR2-4MD 16~14AWG
1.5~2.5mm²		 #8(4.3) .260(6.6) .555(14.1) .248(6.3) .177 (4.5) .205 (5.2) .102 (2.6)
VR2-4D 16~14AWG
1.5~2.5mm²		 #8(4.3) .335(8.5) .650(16.5) .305(7.75) .177 (4.5) .205 (5.2) .102 (2.6)
VR2-5D 16~14AWG
1.5~2.5mm²		 #10(5.3) .335(8.5) .650(16.5) .305(7.75) .177 (4.5) .205 (5.2) .102 (2.6)
VR2-5LD 16~14AWG
1.5~2.5mm²		 #10(5.3) .374(9.5) .650(16.5) .285(7.25) .177 (4.5) .205 (5.2) .102 (2.6)
VR2-6D 16~14AWG
1.5~2.5mm²		 1/4(6.4) .472(12.0) .846(21.5) .433(11.0) .177 (4.5) .205 (5.2) .102 (2.6)
VR2-8D 16~14AWG
1.5~2.5mm²		 5/16(8.4) .472(12.0) .846(21.5) .433(11.0) .177 (4.5) .205 (5.2) .102 (2.6)
VR2-10D 16~14AWG
1.5~2.5mm²		 3/8(10.5) .551(14.0) .945(24.0) .472(12.0) .177 (4.5) .205 (5.2) .102 (2.6)
VR5-3.2D 12~10AWG
4~6mm²		 #4(3.2) .374(9.5) .768(19.5) .325(8.25) .236 (6.0) .280 (7.1) .142 (3.6)
VR5-3SD 12~10AWG
4~6mm²		 #6(3.7) .374(9.5) .768(19.5) .232(5.9) .236 (6.0) .280 (7.1) .142 (3.6)
VR5-3D 12~10AWG
4~6mm²		 #8(4.3) .374(9.5) .768(19.5) .325(8.25) .236 (6.0) .280 (7.1) .142 (3.6)
VR5-4S 12~10AWG
4~6mm²		 #10(5.3) .374(9.5) .768(19.5) .232(5.9) .236 (6.0) .280 (7.1) .142 (3.6)
VR5-4D 12~10AWG
4~6mm²		 1/4(6.4) .472(12.0) .906(23.0) .325(8.25) .236 (6.0) .280 (7.1) .142 (3.6)
VR5-5D 12~10AWG
4~6mm²		 5/16(8.4) .591(15.0) 1.083(27.5) .325(8.25) .236 (6.0) .280 (7.1) .142 (3.6)
VR5-6D 12~10AWG
4~6mm²		 3/8(10.5) .591(15.0) 1.083(27.5) .413(10.5) .236 (6.0) .280 (7.1) .142 (3.6)
VR5-8D 12~10AWG
4~6mm²		 1/2(13.0) .748(19.0) 1.398(35.5) .531(13.5) .236 (6.0) .280 (7.1) .142 (3.6)
VR5-10D 12~10AWG
4~6mm²		 3/8(10.5) .591(15.0) 1.339(34.0) .531(13.5) .236 (6.0) .280 (7.1) .142 (3.6)
VR5-12D 12~10AWG
4~6mm²		 1/2(13.0) .748(19.0) 1.673(42.5) .787(20.0) .236 (6.0) .280 (7.1) .142 (3.6)
Item No. Wire Range
AWG/mm²		 Stud Size b L F E D d1
d2
VR1-2NB 22~16AWG
0.5~1.5mm²		 #2(2.2) .217(5.5) .472(12.0) .187(4.75) .177 (4.5) .157 (4.0) .075 (1.9)
VR1-3.2NB 22~16AWG
0.5~1.5mm²		 #4(3.2) .217(5.5) .472(12.0) .187(4.75) .177 (4.5) .157 (4.0) .075 (1.9)
VR1-3.2LNB 22~16AWG
0.5~1.5mm²		 #4(3.2) .315(8.0) .610(15.5) .276(7.0) .177 (4.5) .157 (4.0) .075 (1.9)
VR1-3NB 22~16AWG
0.5~1.5mm²		 #6(3.7) .217(5.5) .472(12.0) .187(4.75) .177 (4.5) .157 (4.0) .075 (1.9)
VR1-3MNB 22~16AWG
0.5~1.5mm²		 #6(3.7) .260(6.6) .555(14.1) .248(6.3) .177 (4.5) .157 (4.0) .075 (1.9)
VR1-3LNB 22~16AWG
0.5~1.5mm²		 #6(3.7) .315(8.0) .610(15.5) .276(7.0) .177 (4.5) .157 (4.0) .075 (1.9)
VR1-4MNB 22~16AWG
0.5~1.5mm²		 #8(4.3) .260(6.6) .555(14.1) .248(6.3) .177 (4.5) .157 (4.0) .075 (1.9)
VR1-4NB 22~16AWG
0.5~1.5mm²		 #8(4.3) .315(8.0) .610(15.5) .276(7.0) .177 (4.5) .157 (4.0) .075 (1.9)
VR1-5NB 22~16AWG
0.5~1.5mm²		 #10(5.3) .315(8.0) .610(15.5) .276(7.0) .177 (4.5) .157 (4.0) .075 (1.9)
VR1-6NB 22~16AWG
0.5~1.5mm²		 1/4(6.4) .457(11.6) .787(20.0) .382(9.7) .177 (4.5) .157 (4.0) .075 (1.9)
VR1-8NB 22~16AWG
0.5~1.5mm²		 5/16(8.4) .457(11.6) .787(20.0) .382(9.7) .177 (4.5) .157 (4.0) .075 (1.9)
VR1-10NB 22~16AWG
0.5~1.5mm²		 3/8(10.5) .551(14.0) .945(24.0) .472(12.0) .177 (4.5) .157 (4.0) .075 (1.9)
VR2-2NB 16~14AWG
1.5~2.5mm²		 #2(2.2) .252(6.4) .472(12.0) .169(4.3) .177 (4.5) .177 (4.5) .102 (2.6)
VVR2-3.2NB 16~14AWG
1.5~2.5mm²		 #4(3.2) .252(6.4) .472(12.0) .169(4.3) .177 (4.5) .177 (4.5) .102 (2.6)
VR2-3.2LNB 16~14AWG
1.5~2.5mm²		 #4(3.2) .335(8.5) .650(16.5) .305(7.75) .177 (4.5) .177 (4.5) .102 (2.6)
VR2-3NB 16~14AWG
1.5~2.5mm²		 #6(3.7) .252(6.4) .472(12.0) .169(4.3) .177 (4.5) .177 (4.5) .102 (2.6)
VR2-3MNB 16~14AWG
1.5~2.5mm²		 #6(3.7) .260(6.6) .555(14.1) .248(6.3) .177 (4.5) .177 (4.5) .102 (2.6)
VR2-3LNB 16~14AWG
1.5~2.5mm²		 #6(3.7) .335(8.5) .650(16.5) .305(7.75) .177 (4.5) .177 (4.5) .102 (2.6)
VR2-4MNB 16~14AWG
1.5~2.5mm²		 #8(4.3) .260(6.6) .555(14.1) .248(6.3) .177 (4.5) .177 (4.5) .102 (2.6)
VR2-4NB 16~14AWG
1.5~2.5mm²		 #8(4.3) .335(8.5) .650(16.5) .305(7.75) .177 (4.5) .177 (4.5) .102 (2.6)
VR2-5NB 16~14AWG
1.5~2.5mm²		 #10(5.3) .335(8.5) .650(16.5) .305(7.75) .177 (4.5) .177 (4.5) .102 (2.6)
VR2-5LNB 16~14AWG
1.5~2.5mm²		 #10(5.3) .374(9.5) .650(16.5) .285(7.25) .177 (4.5) .177 (4.5) .102 (2.6)
VR2-6NB 16~14AWG
1.5~2.5mm²		 1/4(6.4) .472(12.0) .846(21.5) .433(11.0) .177 (4.5) .177 (4.5) .102 (2.6)
VR2-8NB 16~14AWG
1.5~2.5mm²		 5/16(8.4) .472(12.0) .846(21.5) .433(11.0) .177 (4.5) .177 (4.5) .102 (2.6)
VR2-10NB 16~14AWG
1.5~2.5mm²		 3/8(10.5) .551(14.0) .945(24.0) .472(12.0) .177 (4.5) .177 (4.5) .102 (2.6)
VR5-3.2NB 12~10AWG
4~6mm²		 #4(3.2) .374(9.5) .768(19.5) .325(8.25) .236 (6.0) .252 (6.4) .142 (3.6)
VR5-3SNB 12~10AWG
4~6mm²		 #6(3.7) .374(9.5) .768(19.5) .232(5.9) .236 (6.0) .252 (6.4) .142 (3.6)
VR5-3NB 12~10AWG
4~6mm²		 #8(4.3) .374(9.5) .768(19.5) .325(8.25) .236 (6.0) .252 (6.4) .142 (3.6)
VR5-4SNB 12~10AWG
4~6mm²		 #10(5.3) .374(9.5) .768(19.5) .232(5.9) .236 (6.0) .252 (6.4) .142 (3.6)
VR5-4NB 12~10AWG
4~6mm²		 1/4(6.4) .472(12.0) .906(23.0) .325(8.25) .236 (6.0) .252 (6.4) .142 (3.6)
VR5-5NB 12~10AWG
4~6mm²		 5/16(8.4) .591(15.0) 1.083(27.5) .325(8.25) .236 (6.0) .252 (6.4) .142 (3.6)
VR5-6NB 12~10AWG
4~6mm²		 3/8(10.5) .591(15.0) 1.083(27.5) .413(10.5) .236 (6.0) .252 (6.4) .142 (3.6)
VR5-8NB 12~10AWG
4~6mm²		 1/2(13.0) .748(19.0) 1.398(35.5) .531(13.5) .236 (6.0) .252 (6.4) .142 (3.6)
VR5-10NB 12~10AWG
4~6mm²		 3/8(10.5) .591(15.0) 1.339(34.0) .531(13.5) .236 (6.0) .252 (6.4) .142 (3.6)
VR5-12NB 12~10AWG
4~6mm²		 1/2(13.0) .748(19.0) 1.673(42.5) .787(20.0) .236 (6.0) .252 (6.4) .142 (3.6)
Item No. Wire Range Stud Size b L F E D d1
d2
VA2.5-1 22~16AWG
0.5~1.5mm²		 #3(2.8) .236(6.0) .728(18.5) .236(6.0) .374(9.5) .157(4.0) .067 (1.7)
VA3-1 22~16AWG
0.5~1.5mm²		 #4(3.2) .236(6.0) .728(18.5) .236(6.0) .374(9.5) .157(4.0) .067 (1.7)
VA3.5-1 22~16AWG
0.5~1.5mm²		 #6(3.7) .236(6.0) .728(18.5) .236(6.0) .374(9.5) .157(4.0) .067 (1.7)
VA4-1 22~16AWG
0.5~1.5mm²		 #8(4.3) .315(8.0) .807(20.5) .276(7.0) .374(9.5) .157(4.0) .067 (1.7)
VA5-1 22~16AWG
0.5~1.5mm²		 #10(5.3) .394(10.0) .886(22.5) .315(8.0) .374(9.5) .157(4.0) .067 (1.7)
VA6-1 22~16AWG
0.5~1.5mm²		 1/4(6.5) .433(11.0) .984(25.0) .394(10.0) .374(9.5) .157(4.0) .067 (1.7)
VA8-1 22~16AWG
0.5~1.5mm²		 5/16(8.4) .551(14.0) 1.122(28.5) .472(12.0) .374(9.5) .157(4.0) .067 (1.7)
VA10-1 22~16AWG
0.5~1.5mm²		 3/8(10.5) .709(18.0) 1.280(32.5) .551(14.0) .374(9.5) .157(4.0) .067 (1.7)
VA12-1 22~16AWG
0.5~1.5mm²		 1/2(13.0) .748(19.0) 1.339(34.0) .591(15.0) .374(9.5) .157(4.0) .067 (1.7)
VA3-2.5 16~14AWG
1.5~2.5mm²		 #4(3.2) .236(6.0) .748(19.0) .236(6.0) .394(10.0) .177(4.5) .094 (2.4)
VA3.5-2.5 16~14AWG
1.5~2.5mm²		 #6(3.7) .236(6.0) .748(19.0) .236(6.0) .394(10.0) .177(4.5) .094 (2.4)
VA4-2.5 16~14AWG
1.5~2.5mm²		 #8(4.3) .315(8.0) .827(21.0) .276(7.0) .394(10.0) .177(4.5) .094 (2.4)
VA5-2.5 16~14AWG
1.5~2.5mm²		 #10(5.3) .394(10.0) .945(24.0) .354(9.0) .394(10.0) .177(4.5) .094 (2.4)
VA6-2.5 16~14AWG
1.5~2.5mm²		 1/4(6.5) .433(11.0) 1.043(26.5) .433(11.0) .394(10.0) .177(4.5) .094 (2.4)
VA8-2.5 16~14AWG
1.5~2.5mm²		 5/16(8.4) .551(14.0) 1.142(29.0) .472(12.0) .394(10.0) .177(4.5) .094 (2.4)
VA10-2.5 16~14AWG
1.5~2.5mm²		 3/8(10.5) .709(18.0) 1.299(33.0) .551(14.0) .394(10.0) .177(4.5) .094 (2.4)
VA12-2.5 16~14AWG
1.5~2.5mm²		 1/2(13.0) .748(19.0) 1.358(34.5) .591(15.0) .394(10.0) .177(4.5) .094 (2.4)
VA4-6 12~10AWG
4~6mm²		 #8(4.3) .315(8.0) .965(24.5) .315(8.0) .492(12.5) .252(6.4) .146 (3.7)
VA5-6 12~10AWG
4~6mm²		 #10(5.3) .394(10.0) 1.043(26.5) .354(9.0) .492(12.5) .252(6.4) .146 (3.7)
VA6-6 12~10AWG
4~6mm²		 1/4(6.5) .433(11.0) 1.102(28.0) .394(10.0) .492(12.5) .252(6.4) .146 (3.7)
VA8-6 12~10AWG
4~6mm²		 5/16(8.4) .551(14.0) 1.280(32.5) .512(13.0) .492(12.5) .252(6.4) .146 (3.7)
VA10-6 12~10AWG
4~6mm²		 3/8(10.5) .709(18.0) 1.437(36.5) .591(15.0) .492(12.5) .252(6.4) .146 (3.7)
VA12-6 12~10AWG
4~6mm²		 1/2(13.0) .748(19.0) 1.654(42.0) .787(20.0) .492(12.5) .252(6.4) .146 (3.7)
Item No. Wire Range
AWG/mm²		 Stud Size b L F E D d1
d2
INA2.5-1 22~16AWG
0.5~1.5mm²		 #3(2.8) .236(6.0) .799(20.3) .236(6.0) .445(11.3) 0.169(4.3) .067 (1.7)
INA3-1 22~16AWG
0.5~1.5mm²		 #4(3.2) .236(6.0) .799(20.3) .236(6.0) .445(11.3) 0.169(4.3) .067 (1.7)
INA3.5-1 22~16AWG
0.5~1.5mm²		 #6(3.7) .236(6.0) .799(20.3) .236(6.0) .445(11.3) 0.169(4.3) .067 (1.7)
INA4-1 22~16AWG
0.5~1.5mm²		 #8(4.3) .315(8.0) .878(22.3) .276(7.0) .445(11.3) 0.169(4.3) .067 (1.7)
INA5-1 22~16AWG
0.5~1.5mm²		 #10(5.3) .394(10.0) .957(24.3) .315(8.0) .445(11.3) 0.169(4.3) .067 (1.7)
INA6-1 22~16AWG
0.5~1.5mm²		 1/4(6.5) .433(11.0) 1.055(26.8) .394(10.0) .445(11.3) 0.169(4.3) .067 (1.7)
INA8-1 22~16AWG
0.5~1.5mm²		 5/16(8.4) .551(14.0) 1.193(30.3) .472(12.0) .445(11.3) 0.169(4.3) .067 (1.7)
INA10-1 22~16AWG
0.5~1.5mm²		 3/8(10.5) .709(18.0) 1.350(34.3) .551(14.0) .445(11.3) 0.169(4.3) .067 (1.7)
INA12-1 22~16AWG
0.5~1.5mm²		 1/2(13.0) .748(19.0) 1.409(35.8) .591(15.0) .445(11.3) 0.169(4.3) .067 (1.7)
INA3-2.5 16~14AWG
1.5~2.5mm²		 #4(3.2) .236(6.0) .799(20.3) .236(6.0) .445(11.3) .197(5.0) .094 (2.4)
INA3.5-2.5 16~14AWG
1.5~2.5mm²		 #6(3.7) .236(6.0) .799(20.3) .236(6.0) .445(11.3) .197(5.0) .094 (2.4)
INA4-2.5 16~14AWG
1.5~2.5mm²		 #8(4.3) .315(8.0) .878(22.3) .276(7.0) .445(11.3) .197(5.0) .094 (2.4)
INA5-2.5 16~14AWG
1.5~2.5mm²		 #10(5.3) .394(10.0) .996(25.3) .354(9.0) .445(11.3) .197(5.0) .094 (2.4)
INA6-2.5 16~14AWG
1.5~2.5mm²		 1/4(6.5) .433(11.0) 1.094(27.8) .433(11.0) .445(11.3) .197(5.0) .094 (2.4)
INA8-2.5 16~14AWG
1.5~2.5mm²		 5/16(8.4) .551(14.0) 1.193(30.3) .472(12.0) .445(11.3) .197(5.0) .094 (2.4)
INA10-2.5 16~14AWG
1.5~2.5mm²		 3/8(10.5) .709(18.0) 1.350(34.3) .551(14.0) .445(11.3) .197(5.0) .094 (2.4)
INA12-2.5 16~14AWG
1.5~2.5mm²		 1/2(13.0) .748(19.0) 1.409(35.8) .591(15.0) .445(11.3) .197(5.0) .094 (2.4)
INA4-6 12~10AWG
4~6mm²		 #8(4.3) .315(8.0) 1.029(26.15) .315(8.0) .557(14.15) .256(6.5) .146 (3.7)
INA5-6 12~10AWG
4~6mm²		 #10(5.3) .394(10.0) 1.108(28.15) .354(9.0) .557(14.15) .256(6.5) .146 (3.7)
INA6-6 12~10AWG
4~6mm²		 1/4(6.5) .433(11.0) 1.167(29.65) .394(10.0) .557(14.15) .256(6.5) .146 (3.7)
INA8-6 12~10AWG
4~6mm²		 5/16(8.4) .551(14.0) 1.344(34.15) .512(13.0) .557(14.15) .256(6.5) .146 (3.7)
INA10-6 12~10AWG
4~6mm²		 3/8(10.5) .709(18.0) 1.502(38.15) .591(15.0) .557(14.15) .256(6.5) .146 (3.7)
INA12-6 12~10AWG
4~6mm²		 1/2(13.0) .748(19.0) 1.719(43.65) .787(20.0) .557(14.15) .256(6.5) .146 (3.7)
Item No. Wire Range
AWG/mm²		 Stud Size b L F E D d1
d2
IMA2.5-1 22~16AWG
0.5~1.5mm²		 #3(2.8) .236(6.0) .799(20.3) .236(6.0) .445(11.3) 0.169(4.3) .067 (1.7)
IMA3-1 22~16AWG
0.5~1.5mm²		 #4(3.2) .236(6.0) .799(20.3) .236(6.0) .445(11.3) 0.169(4.3) .067 (1.7)
IMA3.5-1 22~16AWG
0.5~1.5mm²		 #6(3.7) .236(6.0) .799(20.3) .236(6.0) .445(11.3) 0.169(4.3) .067 (1.7)
IMA4-1 22~16AWG
0.5~1.5mm²		 #8(4.3) .315(8.0) .878(22.3) .276(7.0) .445(11.3) 0.169(4.3) .067 (1.7)
IMA5-1 22~16AWG
0.5~1.5mm²		 #10(5.3) .394(10.0) .957(24.3) .315(8.0) .445(11.3) 0.169(4.3) .067 (1.7)
IMA6-1 22~16AWG
0.5~1.5mm²		 1/4(6.5) .433(11.0) 1.055(26.8) .394(10.0) .445(11.3) 0.169(4.3) .067 (1.7)
IMA8-1 22~16AWG
0.5~1.5mm²		 5/16(8.4) .551(14.0) 1.193(30.3) .472(12.0) .445(11.3) 0.169(4.3) .067 (1.7)
IMA10-1 22~16AWG
0.5~1.5mm²		 3/8(10.5) .709(18.0) 1.350(34.3) .551(14.0) .445(11.3) 0.169(4.3) .067 (1.7)
IMA12-1 22~16AWG
0.5~1.5mm²		 1/2(13.0) .748(19.0) 1.409(35.8) .591(15.0) .445(11.3) 0.169(4.3) .067 (1.7)
IMA3-2.5 16~14AWG
1.5~2.5mm²		 #4(3.2) .236(6.0) .799(20.3) .236(6.0) .445(11.3) .197(5.0) .094 (2.4)
IMA3.5-2.5 16~14AWG
1.5~2.5mm²		 #6(3.7) .236(6.0) .799(20.3) .236(6.0) .445(11.3) .197(5.0) .094 (2.4)
IMA4-2.5 16~14AWG
1.5~2.5mm²		 #8(4.3) .315(8.0) .878(22.3) .276(7.0) .445(11.3) .197(5.0) .094 (2.4)
IMA5-2.5 16~14AWG
1.5~2.5mm²		 #10(5.3) .394(10.0) .996(25.3) .354(9.0) .445(11.3) .197(5.0) .094 (2.4)
IMA6-2.5 16~14AWG
1.5~2.5mm²		 1/4(6.5) .433(11.0) 1.094(27.8) .433(11.0) .445(11.3) .197(5.0) .094 (2.4)
IMA8-2.5 16~14AWG
1.5~2.5mm²		 5/16(8.4) .551(14.0) 1.193(30.3) .472(12.0) .445(11.3) .197(5.0) .094 (2.4)
IMA10-2.5 16~14AWG
1.5~2.5mm²		 5/16(8.4) .709(18.0) 1.350(34.3) .551(14.0) .445(11.3) .197(5.0) .094 (2.4)
IMA12-2.5 16~14AWG
1.5~2.5mm²		 1/2(13.0) .748(19.0) 1.409(35.8) .591(15.0) .445(11.3) .197(5.0) .094 (2.4)
IMA4-6 12~10AWG
4~6mm²		 #8(4.3) .315(8.0) 1.029(26.15) .315(8.0) .557(14.15) .256(6.5) .146 (3.7)
IMA5-6 12~10AWG
4~6mm²		 #10(5.3) .394(10.0) 1.108(28.15) .354(9.0) .557(14.15) .256(6.5) .146 (3.7)
IMA6-6 12~10AWG
4~6mm²		 1/4(6.5) .433(11.0) 1.167(29.65) .394(10.0) .557(14.15) .256(6.5) .146 (3.7)
IMA8-6 12~10AWG
4~6mm²		 5/16(8.4) .551(14.0) 1.344(34.15) .512(13.0) .557(14.15) .256(6.5) .146 (3.7)
IMA10-6 12~10AWG
4~6mm²		 3/8(10.5) .709(18.0) 1.502(38.15) .591(15.0) .557(14.15) .256(6.5) .146 (3.7)
IMA12-6 12~10AWG
4~6mm²		 1/2(13.0) .748(19.0) 1.719(43.65) .787(20.0) .557(14.15) .256(6.5) .146 (3.7)
Item No. Wire Range
AWG/mm²		 Stud Size b L F E D d1
d2
IVA2.5-1 22~16AWG
0.5~1.5mm²		 #3(2.8) .236(6.0) .799(20.3) .236(6.0) .445(11.3) .157(4.0) .067 (1.7)
IVA3-1 22~16AWG
0.5~1.5mm²		 #4(3.2) .236(6.0) .799(20.3) .236(6.0) .445(11.3) .157(4.0) .067 (1.7)
IVA3.5-1 22~16AWG
0.5~1.5mm²		 #6(3.7) .236(6.0) .799(20.3) .236(6.0) .445(11.3) .157(4.0) .067 (1.7)
IVA4-1 22~16AWG
0.5~1.5mm²		 #8(4.3) .315(8.0) .878(22.3) .276(7.0) .445(11.3) .157(4.0) .067 (1.7)
IVA5-1 22~16AWG
0.5~1.5mm²		 #10(5.3) .394(10.0) .957(24.3) .315(8.0) .445(11.3) .157(4.0) .067 (1.7)
IVA6-1 22~16AWG
0.5~1.5mm²		 1/4(6.5) .433(11.0) 1.055(26.8) .394(10.0) .445(11.3) .157(4.0) .067 (1.7)
IVA8-1 22~16AWG
0.5~1.5mm²		 5/16(8.4) .551(14.0) 1.193(30.3) .472(12.0) .445(11.3) .157(4.0) .067 (1.7)
IVA10-1 22~16AWG
0.5~1.5mm²		 3/8(10.5) .709(18.0) 1.350(34.3) .551(14.0) .445(11.3) .157(4.0) .067 (1.7)
IVA12-1 22~16AWG
0.5~1.5mm²		 1/2(13.0) .748(19.0) 1.409(35.8) .591(15.0) .445(11.3) .157(4.0) .067 (1.7)
IVA3-2.5 16~14AWG
1.5~2.5mm²		 #4(3.2) .236(6.0) .799(20.3) .236(6.0) .445(11.3) .177(4.5) .094 (2.4)
IVA3.5-2.5 16~14AWG
1.5~2.5mm²		 #6(3.7) .236(6.0) .799(20.3) .236(6.0) .445(11.3) .177(4.5) .094 (2.4)
IVA4-2.5 16~14AWG
1.5~2.5mm²		 #8(4.3) .315(8.0) .878(22.3) .276(7.0) .445(11.3) .177(4.5) .094 (2.4)
IVA5-2.5 16~14AWG
1.5~2.5mm²		 #10(5.3) .394(10.0) .996(25.3) .354(9.0) .445(11.3) .177(4.5) .094 (2.4)
IVA6-2.5 16~14AWG
1.5~2.5mm²		 1/4(6.5) .433(11.0) 1.094(27.8) .433(11.0) .445(11.3) .177(4.5) .094 (2.4)
IVA8-2.5 16~14AWG
1.5~2.5mm²		 5/16(8.4) .551(14.0) 1.193(30.3) .472(12.0) .445(11.3) .177(4.5) .094 (2.4)
IVA10-2.5 16~14AWG
1.5~2.5mm²		 3/8(10.5) .709(18.0) 1.350(34.3) .551(14.0) .445(11.3) .177(4.5) .094 (2.4)
IVA12-2.5 16~14AWG
1.5~2.5mm²		 1/2(13.0) .748(19.0) 1.409(35.8) .591(15.0) .445(11.3) .177(4.5) .094 (2.4)
IVA4-6 12~10AWG
4~6mm²		 #8(4.3) .315(8.0) 1.029(26.15) .315(8.0) .557(14.15) .252(6.4) .146 (3.7)
IVA5-6 12~10AWG
4~6mm²		 #10(5.3) .394(10.0) 1.108(28.15) .354(9.0) .557(14.15) .252(6.4) .146 (3.7)
IVA6-6 12~10AWG
4~6mm²		 1/4(6.5) .433(11.0) 1.167(29.65) .394(10.0) .557(14.15) .252(6.4) .146 (3.7)
IVA8-6 12~10AWG
4~6mm²		 5/16(8.4) .551(14.0) 1.344(34.15) .512(13.0) .557(14.15) .252(6.4) .146 (3.7)
IVA10-6 12~10AWG
4~6mm²		 3/8(10.5) .709(18.0) 1.502(38.15) .591(15.0) .557(14.15) .252(6.4) .146 (3.7)
IVA12-6 12~10AWG
4~6mm²		 1/2(13.0) .748(19.0) 1.719(43.65) .787(20.0) .557(14.15) .252(6.4) .146 (3.7)
Item No. Wire Range
AWG/mm²		 Stud Size b L F E D d1
d2
VA2.5-1D 22~16AWG
0.5~1.5mm²		 #3(2.8) .236(6.0) .748(19.0) .236(6.0) .394(10.0) .177(4.5) .067 (1.7)
VA3-1D 22~16AWG
0.5~1.5mm²		 #4(3.2) .236(6.0) .748(19.0) .236(6.0) .394(10.0) .177(4.5) .067 (1.7)
VA3.5-1D 22~16AWG
0.5~1.5mm²		 #6(3.7) .236(6.0) .748(19.0) .236(6.0) .394(10.0) .177(4.5) .067 (1.7)
VA4-1D 22~16AWG
0.5~1.5mm²		 #8(4.3) .315(8.0) .827(21.0) .276(7.0) .394(10.0) .177(4.5) .067 (1.7)
VA5-1D 22~16AWG
0.5~1.5mm²		 #10(5.3) .394(10.0) .906(23.0) .315(8.0) .394(10.0) .177(4.5) .067 (1.7)
VA6-1D 22~16AWG
0.5~1.5mm²		 1/4(6.5) .433(11.0) 1.004(25.5) .394(10.0) .394(10.0) .177(4.5) .067 (1.7)
VA8-1D 22~16AWG
0.5~1.5mm²		 5/16(8.4) .551(14.0) 1.142(29.0) .472(12.0) .394(10.0) .177(4.5) .067 (1.7)
VA10-1D 22~16AWG
0.5~1.5mm²		 3/8(10.5) .709(18.0) 1.299(33.0) .551(14.0) .394(10.0) .177(4.5) .067 (1.7)
VA12-1D 22~16AWG
0.5~1.5mm²		 1/2(13.0) .748(19.0) 1.358(34.5) .591(15.0) .394(10.0) .177(4.5) .067 (1.7)
VA3-2.5D 16~14AWG
1.5~2.5mm²		 #4(3.2) .236(6.0) .748(19.0) .236(6.0) .394(10.0) .205(5.2) .094 (2.4)
VA3.5-2.5D 16~14AWG
1.5~2.5mm²		 #6(3.7) .236(6.0) .748(19.0) .236(6.0) .394(10.0) .205(5.2) .094 (2.4)
VA4-2.5D 16~14AWG
1.5~2.5mm²		 #8(4.3) .315(8.0) .827(21.0) .276(7.0) .394(10.0) .205(5.2) .094 (2.4)
VA5-2.5D 16~14AWG
1.5~2.5mm²		 #10(5.3) .394(10.0) .945(24.0) .354(9.0) .394(10.0) .205(5.2) .094 (2.4)
VA6-2.5D 16~14AWG
1.5~2.5mm²		 1/4(6.5) .433(11.0) 1.043(26.5) .433(11.0) .394(10.0) .205(5.2) .094 (2.4)
VA8-2.5D 16~14AWG
1.5~2.5mm²		 5/16(8.4) .551(14.0) 1.142(29.0) .472(12.0) .394(10.0) .205(5.2) .094 (2.4)
VA10-2.5D 16~14AWG
1.5~2.5mm²		 3/8(10.5) .709(18.0) 1.299(33.0) .551(14.0) .394(10.0) .205(5.2) .094 (2.4)
VA12-2.5D 16~14AWG
1.5~2.5mm²		 1/2(13.0) .748(19.0) 1.358(34.5) .591(15.0) .394(10.0) .205(5.2) .094 (2.4)
VA4-6D 12~10AWG
4~6mm²		 #8(4.3) .315(8.0) .984(25.0) .315(8.0) .512(13.0) .280(7.1) .146 (3.7)
VA5-6D 12~10AWG
4~6mm²		 #10(5.3) .394(10.0) 1.063(27.0) .354(9.0) .512(13.0) .280(7.1) .146 (3.7)
VA6-6D 12~10AWG
4~6mm²		 1/4(6.5) .433(11.0) 1.122(28.5) .394(10.0) .512(13.0) .280(7.1) .146 (3.7)
VA8-6D 12~10AWG
4~6mm²		 5/16(8.4) .551(14.0) 1.299(33.0) .512(13.0) .512(13.0) .280(7.1) .146 (3.7)
VA10-6D 12~10AWG
4~6mm²		 3/8(10.5) .709(18.0) 1.457(37.0) .591(15.0) .512(13.0) .280(7.1) .146 (3.7)
VA12-6D 12~10AWG
4~6mm²		 1/2(13.0) .748(19.0) 1.673(42.5) .787(20.0) .512(13.0) .280(7.1) .146 (3.7)
Item No. Wire Range
AWG/mm²		 Stud Size b L F E D d1
d2
VA2.5-1NB 22~16AWG
0.5~1.5mm²		 #3(2.8) .236(6.0) .728(18.5) .236(6.0) .374(9.5) .157(4.0) .067 (1.7)
VA3-1NB 22~16AWG
0.5~1.5mm²		 #4(3.2) .236(6.0) .728(18.5) .236(6.0) .374(9.5) .157(4.0) .067 (1.7)
VA3.5-1NB 22~16AWG
0.5~1.5mm²		 #6(3.7) .236(6.0) .728(18.5) .236(6.0) .374(9.5) .157(4.0) .067 (1.7)
VA4-1NB 22~16AWG
0.5~1.5mm²		 #8(4.3) .315(8.0) .807(20.5) .276(7.0) .374(9.5) .157(4.0) .067 (1.7)
VA5-1NB 22~16AWG
0.5~1.5mm²		 #10(5.3) .394(10.0) .886(22.5) .315(8.0) .374(9.5) .157(4.0) .067 (1.7)
VA6-1NB 22~16AWG
0.5~1.5mm²		 1/4(6.5) .433(11.0) .984(25.0) .394(10.0) .374(9.5) .157(4.0) .067 (1.7)
VA8-1NB 22~16AWG
0.5~1.5mm²		 5/16(8.4) .551(14.0) 1.122(28.5) .472(12.0) .374(9.5) .157(4.0) .067 (1.7)
VA10-1NB 22~16AWG
0.5~1.5mm²		 3/8(10.5) .709(18.0) 1.280(32.5) .551(14.0) .374(9.5) .157(4.0) .067 (1.7)
VA12-1NB 22~16AWG
0.5~1.5mm²		 1/2(13.0) .748(19.0) 1.339(34.0) .591(15.0) .374(9.5) .157(4.0) .067 (1.7)
VA3-2.5NB 16~14AWG
1.5~2.5mm²		 #4(3.2) .236(6.0) .748(19.0) .236(6.0) .394(10.0) .177(4.5) .094 (2.4)
VA3.5-2.5NB 16~14AWG
1.5~2.5mm²		 #6(3.7) .236(6.0) .748(19.0) .236(6.0) .394(10.0) .177(4.5) .094 (2.4)
VA4-2.5NB 16~14AWG
1.5~2.5mm²		 #8(4.3) .315(8.0) .827(21.0) .276(7.0) .394(10.0) .177(4.5) .094 (2.4)
VA5-2.5NB 16~14AWG
1.5~2.5mm²		 #10(5.3) .394(10.0) .945(24.0) .354(9.0) .394(10.0) .177(4.5) .094 (2.4)
VA6-2.5NB 16~14AWG
1.5~2.5mm²		 1/4(6.5) .433(11.0) 1.043(26.5) .433(11.0) .394(10.0) .177(4.5) .094 (2.4)
VA8-2.5NB 16~14AWG
1.5~2.5mm²		 5/16(8.4) .551(14.0) 1.142(29.0) .472(12.0) .394(10.0) .177(4.5) .094 (2.4)
VA10-2.5NB 16~14AWG
1.5~2.5mm²		 3/8(10.5) .709(18.0) 1.299(33.0) .551(14.0) .394(10.0) .177(4.5) .094 (2.4)
VA12-2.5NB 16~14AWG
1.5~2.5mm²		 1/2(13.0) .748(19.0) 1.358(34.5) .591(15.0) .394(10.0) .177(4.5) .094 (2.4)
VA4-6NB 12~10AWG
4~6mm²		 #8(4.3) .315(8.0) .965(24.5) .315(8.0) .492(12.5) .252(6.4) .146 (3.7)
VA5-6NB 12~10AWG
4~6mm²		 #10(5.3) .394(10.0) 1.043(26.5) .354(9.0) .492(12.5) .252(6.4) .146 (3.7)
VA6-6NB 12~10AWG
4~6mm²		 1/4(6.5) .433(11.0) 1.102(28.0) .394(10.0) .492(12.5) .252(6.4) .146 (3.7)
VA8-6NB 12~10AWG
4~6mm²		 5/16(8.4) .551(14.0) 1.280(32.5) .512(13.0) .492(12.5) .252(6.4) .146 (3.7)
VA10-6NB 12~10AWG
4~6mm²		 3/8(10.5) .709(18.0) 1.437(36.5) .591(15.0) .492(12.5) .252(6.4) .146 (3.7)
VA12-6NB 12~10AWG
4~6mm²		 1/2(13.0) .748(19.0) 1.654(42.0) .787(20.0) .492(12.5) .252(6.4) .146 (3.7)

Other Products

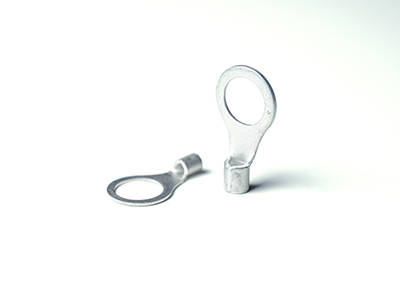

Uninsulated

Uninsulated
