Heat Shrink Tube

Heat Shrink Tube
Heat Shrink Tube
PreviousNext
123

Material: PE ; Shrinkage Ratio: 2:1
Operating temperature : -55°C~125°C
Minimum shrink temperature : 70°C
Minimum fully recovery temperature : 110°C
UL and RoHS Certificate

Being a heat shrink tube manufacturer, we offer PE heat shrink tubes in black, white, red, blue, yellow, and green colors, with custom-cut pieces available upon request.

Item No. Nominal Size As supplied (mm) After recovered (mm) Standard Length
(Meter)

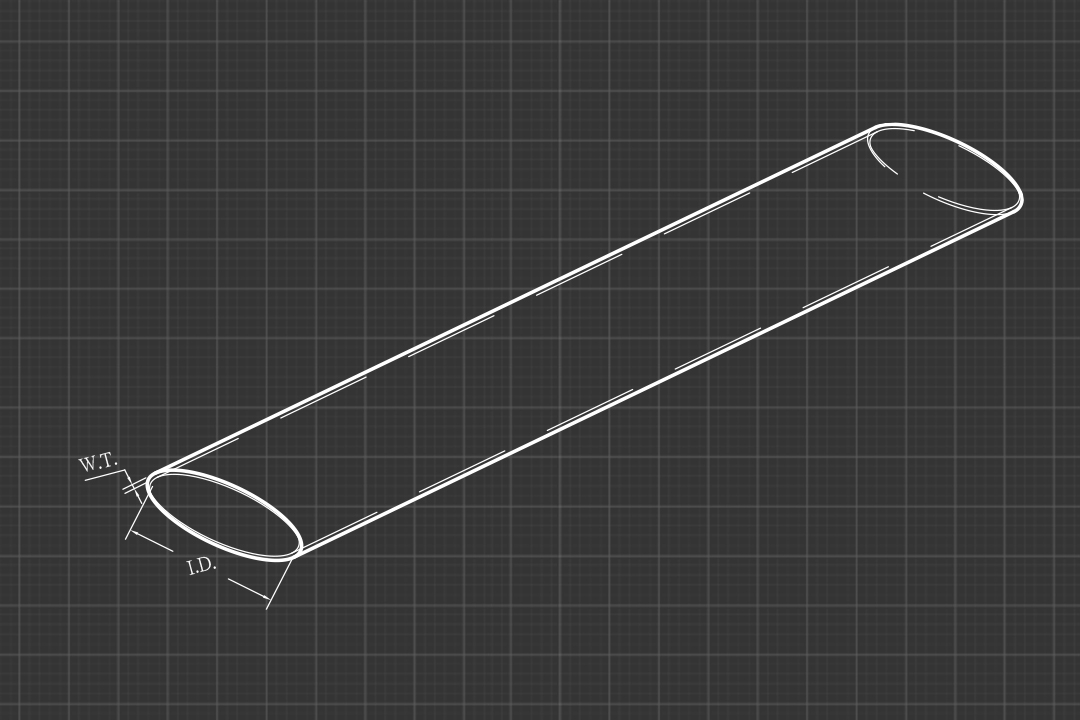

I.D. W.T. I.D. W.T.
W1-0.8 0.8 1.0±0.2 0.15±0.05 0.4 0.25±0.05 200
W1-1 1 1.5±0.3 0.20±0.05 0.6 0.33±0.05 200
W1-2 2 2.5±0.3 0.20±0.05 0.75 0.36±0.05 200
W1-2.5 2.5 3.0±0.3 0.20±0.05 1 0.44±0.05 200
W1-3 3 3.5±0.3 0.25±0.05 1.5 0.44±0.05 200
W1-3.5 3.5 4.0±0.3 0.25±0.05 1.75 0.44±0.05 200
W1-4 4 4.5±0.3 0.25±0.05 2 0.44±0.05 200
W1-4.5 4.5 5.0±0.3 0.25±0.05 2.25 0.44±0.08 100
W1-5 5 5.5±0.3 0.25±0.05 2.5 0.56±0.08 100
W1-6 6 6.5±0.3 0.28±0.05 3 0.56±0.08 100
W1-7 7 7.6±0.3 0.30±0.06 3.5 0.56±0.08 100
W1-8 8 8.6±0.3 0.30±0.06 4 0.56±0.08 100
W1-9 9 9.6±0.3 0.30±0.06 4.5 0.56±0.08 100
W1-10 10 10.7±0.4 0.30±0.06 5 0.56±0.08 100
W1-11 11 11.7±0.4 0.30±0.06 5.5 0.56±0.08 100
W1-12 12 12.7±0.4 0.30±0.06 6 0.56±0.08 100
W1-13 13 13.7±0.4 0.35±0.07 6.5 0.69±0.08 100
W1-14 14 14.7±0.4 0.35±0.07 7 0.69±0.08 100
W1-15 15 15.7±0.5 0.35±0.07 7.5 0.69±0.08 100
W1-16 16 16.7±0.5 0.35±0.07 8 0.69±0.08 100
W1-17 17 17.5±0.6 0.35±0.12 8.5 0.77±0.08 100
W1-18 18 19.0±0.5 0.40±0.10 9 0.77±0.15 100
W1-20 20 21.0±0.5 0.40±0.10 10 0.77±0.15 100
W1-22 22 23.0±0.5 0.40±0.10 11 0.77±0.15 100
W1-25 25 26.0±1.0 0.45±0.10 12.5 0.87±0.15 50
W1-28 28 29.0±1.0 0.45±0.10 14 0.87±0.15 50
W1-30 30 31.5±1.0 0.45±0.10 15 0.87±0.15 50
W1-35 35 37.0±1.0 0.50±0.10 17.5 0.97±0.15 50
W1-40 40 40.5±1.0 0.50±0.10 20 0.97±0.15 50
W1-45 45 46.5±1.0 0.50±0.10 22.5 0.97±0.15 25
W1-50 50 50.5±1.0 0.50±0.10 25 0.97±0.15 25
W1-60 60 60.0±3.0 0.80±0.20 30 1.30±0.20 25
W1-70 70 70.0±3.0 0.80±0.20 35 1.50±0.20 25
W1-80 80 80.0±3.0 0.80±0.30 40 1.50±0.30 25
W1-90 90 90.0±4.0 0.80±0.30 45 1.50±0.30 25
W1-100 100 100.0±4.0 0.80±0.30 50 1.50±0.30 25
W1-120 120 120.0±4.0 0.80±0.30 60 1.50±0.30 15
W1-150 150 150.0±4.0 0.80±0.30 75 1.50±0.30 15
W1-180 180 180.0±4.0 0.80±0.30 90 1.50±0.30 15
