Pin Terminal

Pin Terminal
Pin Terminal
PreviousNext
123

Pin Terminals are designed to terminate stranded wires, preventing fraying and ensuring reliable connections, especially in terminal blocks. Being a terminal connector manufacturer, we offer UL, RoHS, and REACH certified products.

Material: 99.9% electrolytic copper / insulation options PVC, PC, Nylon
Operating Temperature: 80°C (determined by the insulation material)
Voltage Withstand: copper 600V
Flammability: UL-94 V0
Surface: Tin-plated

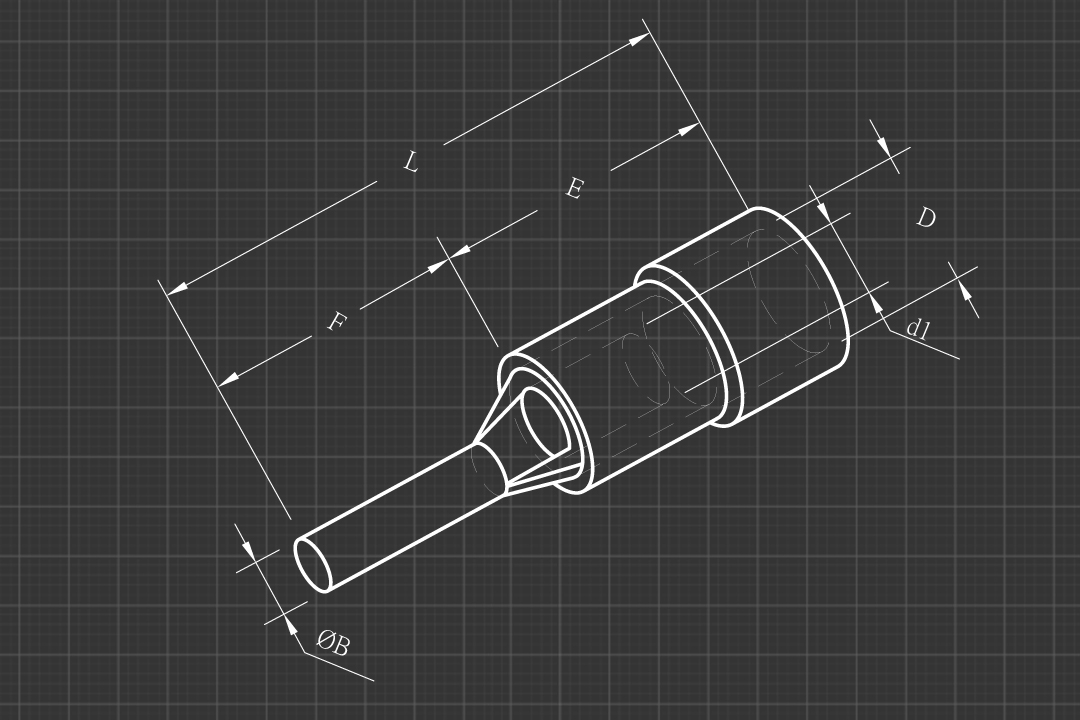

Item No. Wire Range
AWG/mm²		 b L F E D d1
PT1 22~16 AWG
0.5~1.5mm²		 .075(1.9) .661(16.8) 12 .189(4.8) .138(3.5) .075(1.9)
PT1-7 22~16 AWG
0.5~1.5mm²		 .075(1.9) .465(11.8) 7 .189(4.8) .138(3.5) .075(1.9)
PT1-9 22~16 AWG
0.5~1.5mm²		 .075(1.9) .543(13.8) 9 .189(4.8) .138(3.5) .075(1.9)
PT1-10 22~16 AWG
0.5~1.5mm²		 .075(1.9) .583(14.8) 10 .189(4.8) .138(3.5) .075(1.9)
PT1-17 22~16 AWG
0.5~1.5mm²		 .075(1.9) .858(21.8) 17 .189(4.8) .138(3.5) .075(1.9)
PT2 16~14 AWG
1.5~2.5mm²		 .075(1.9) .661(16.8) 12 .189(4.8) .161(4.1) .102(2.6)
PT2-7 16~14 AWG
1.5~2.5mm²		 .075(1.9) .465(11.8) 7 .189(4.8) .161(4.1) .102(2.6)
PT2-9 16~14 AWG
1.5~2.5mm²		 .075(1.9) .543(13.8) 9 .189(4.8) .161(4.1) .102(2.6)
PT2-10 16~14 AWG
1.5~2.5mm²		 .075(1.9) .583(14.8) 10 .189(4.8) .161(4.1) .102(2.6)
PT2-17 16~14 AWG
1.5~2.5mm²		 .075(1.9) .858(21.8) 17 .189(4.8) .161(4.1) .102(2.6)
PT5-6 12~10 AWG
4~6mm²		 .106(2.7) .598(15.2) 9 .244(6.2) .228(5.8) .142(3.6)
PT5 12~10 AWG
4~6mm²		 .106(2.7) .795(20.2) 14 .244(6.2) .228(5.8) .142(3.6)
Item No. Wire Range
AWG/mm²		 b L F E D d1
VPT1 22~16 AWG
0.5~1.5mm²		 .075(1.9) .846(21.5) 12 .374(9.5) .157(4.0) .075(1.9)
VPT1-7 22~16 AWG
0.5~1.5mm²		 .075(1.9) .650(16.5) 7 .374(9.5) .157(4.0) .075(1.9)
VPT1-9 22~16 AWG
0.5~1.5mm²		 .075(1.9) .728(18.5) 9 .374(9.5) .157(4.0) .075(1.9)
VPT1-10 22~16 AWG
0.5~1.5mm²		 .075(1.9) .768(19.5) 10 .374(9.5) .157(4.0) .075(1.9)
VPT1-17 22~16 AWG
0.5~1.5mm²		 .075(1.9) 1.043(26.5) 17 .374(9.5) .157(4.0) .075(1.9)
VPT2 16~14 AWG
1.5~2.5mm²		 .075(1.9) .866(22.0) 12 .394(10.0) .177(4.5) .102(2.6)
VPT2-7 16~14 AWG
1.5~2.5mm²		 .075(1.9) .669(17.0) 7 .394(10.0) .177(4.5) .102(2.6)
VPT2-9 16~14 AWG
1.5~2.5mm²		 .075(1.9) .748(19.0) 9 .394(10.0) .177(4.5) .102(2.6)
VPT2-10 16~14 AWG
1.5~2.5mm²		 .075(1.9) .787(20.0) 10 .394(10.0) .177(4.5) .102(2.6)
VPT2-17 16~14 AWG
1.5~2.5mm²		 .075(1.9) 1.063(27.0) 17 .394(10.0) .177(4.5) .102(2.6)
VPT5-6 12~10 AWG
4~6mm²		 .106(2.7) .866(22.0) 9 .512(13.0) .252(6.4) .142(3.6)
VPT5 12~10 AWG
4~6mm²		 .106(2.7) 1.063(27.0) 14 .512(13.0) .252(6.4) .142(3.6)
Item No. Wire Range
AWG/mm²		 b L F E D d1
INPT1 22~16 AWG
0.5~1.5mm²		 .075(1.9) .917(23.3) 12 .445(11.3) 0.169(4.3) .075(1.9)
INPT1-7 22~16 AWG
0.5~1.5mm²		 .075(1.9) .720(18.3) 7 .445(11.3) 0.169(4.3) .075(1.9)
INPT1-9 22~16 AWG
0.5~1.5mm²		 .075(1.9) .799(20.3) 9 .445(11.3) 0.169(4.3) .075(1.9)
INPT1-10 22~16 AWG
0.5~1.5mm²		 .075(1.9) .839(21.3) 10 .445(11.3) 0.169(4.3) .075(1.9)
INPT1-17 22~16 AWG
0.5~1.5mm²		 .075(1.9) 1.114(28.3) 17 .445(11.3) 0.169(4.3) .075(1.9)
INPT2 16~14 AWG
1.5~2.5mm²		 .075(1.9) .917(23.3) 12 .445(11.3) .197(5.0) .102(2.6)
INPT2-7 16~14 AWG
1.5~2.5mm²		 .075(1.9) .720(18.3) 7 .445(11.3) .197(5.0) .102(2.6)
INPT2-9 16~14 AWG
1.5~2.5mm²		 .075(1.9) .799(20.3) 9 .445(11.3) .197(5.0) .102(2.6)
INPT2-10 16~14 AWG
1.5~2.5mm²		 .075(1.9) .839(21.3) 10 .445(11.3) .197(5.0) .102(2.6)
INPT2-17 16~14 AWG
1.5~2.5mm²		 .075(1.9) 1.114(28.3) 17 .445(11.3) .197(5.0) .102(2.6)
INPT5-6 12~10 AWG
4~6mm²		 .106(2.7) .911(23.15) 9 .557(14.15) .256(6.5) .142(3.6)
INPT5 12~10 AWG
4~6mm²		 .106(2.7) 1.108(28.15) 14 .557(14.15) .256(6.5) .142(3.6)
Item No. Wire Range
AWG/mm²		 b L F E D d1
IMPT1 22~16 AWG
0.5~1.5mm²		 .075(1.9) .917(23.3) 12 .445(11.3) 0.169(4.3) .075(1.9)
IMPT1-7 22~16 AWG
0.5~1.5mm²		 .075(1.9) .720(18.3) 7 .445(11.3) 0.169(4.3) .075(1.9)
IMPT1-9 22~16 AWG
0.5~1.5mm²		 .075(1.9) .799(20.3) 9 .445(11.3) 0.169(4.3) .075(1.9)
IMPT1-10 22~16 AWG
0.5~1.5mm²		 .075(1.9) .839(21.3) 10 .445(11.3) 0.169(4.3) .075(1.9)
IMPT1-17 22~16 AWG
0.5~1.5mm²		 .075(1.9) 1.114(28.3) 17 .445(11.3) 0.169(4.3) .075(1.9)
IMPT2 16~14 AWG
1.5~2.5mm²		 .075(1.9) .917(23.3) 12 .445(11.3) .197(5.0) .102(2.6)
IMPT2-7 16~14 AWG
1.5~2.5mm²		 .075(1.9) .720(18.3) 7 .445(11.3) .197(5.0) .102(2.6)
IMPT2-9 16~14 AWG
1.5~2.5mm²		 .075(1.9) .799(20.3) 9 .445(11.3) .197(5.0) .102(2.6)
IMPT2-10 16~14 AWG
1.5~2.5mm²		 .075(1.9) .839(21.3) 10 .445(11.3) .197(5.0) .102(2.6)
IMPT2-17 16~14 AWG
1.5~2.5mm²		 .075(1.9) 1.114(28.3) 17 .445(11.3) .197(5.0) .102(2.6)
IMPT5-6 12~10 AWG
4~6mm²		 .106(2.7) .911(23.15) 9 .557(14.15) .256(6.5) .142(3.6)
IMPT5 12~10 AWG
4~6mm²		 .106(2.7) 1.108(28.15) 14 .557(14.15) .256(6.5) .142(3.6)
Item No. Wire Range
AWG/mm²		 b L F E D d1
IVPT1 22~16 AWG
0.5~1.5mm²		 .075(1.9) .917(23.3) 12 .445(11.3) .157(4.0) .075(1.9)
IVPT1-7 22~16 AWG
0.5~1.5mm²		 .075(1.9) .720(18.3) 7 .445(11.3) .157(4.0) .075(1.9)
IVPT1-9 22~16 AWG
0.5~1.5mm²		 .075(1.9) .799(20.3) 9 .445(11.3) .157(4.0) .075(1.9)
IVPT1-10 22~16 AWG
0.5~1.5mm²		 .075(1.9) .839(21.3) 10 .445(11.3) .157(4.0) .075(1.9)
IVPT1-17 22~16 AWG
0.5~1.5mm²		 .075(1.9) 1.114(28.3) 17 .445(11.3) .157(4.0) .075(1.9)
IVPT2 16~14 AWG
1.5~2.5mm²		 .075(1.9) .917(23.3) 12 .445(11.3) .177(4.5) .102(2.6)
IVPT2-7 16~14 AWG
1.5~2.5mm²		 .075(1.9) .720(18.3) 7 .445(11.3) .177(4.5) .102(2.6)
IVPT2-9 16~14 AWG
1.5~2.5mm²		 .075(1.9) .799(20.3) 9 .445(11.3) .177(4.5) .102(2.6)
IVPT2-10 16~14 AWG
1.5~2.5mm²		 .075(1.9) .839(21.3) 10 .445(11.3) .177(4.5) .102(2.6)
IVPT2-17 16~14 AWG
1.5~2.5mm²		 .075(1.9) 1.114(28.3) 17 .445(11.3) .177(4.5) .102(2.6)
IVPT5-6 12~10 AWG
4~6mm²		 .106(2.7) .911(23.15) 9 .557(14.15) .252(6.4) .142(3.6)
IVPT5 12~10 AWG
4~6mm²		 .106(2.7) 1.108(28.15) 14 .557(14.15) .252(6.4) .142(3.6)
