Fully Insulated Bullet Disconnector

Fully Insulated Bullet Disconnector
Fully Insulated Bullet Disconnector
PreviousNext
123

Marrow Lin, an experienced electrical terminal manufacturer, offers Fully Insulated Bullet Disconnectors that provide enhanced safety by preventing accidental electric leakage and fire, along with a tool-free installation feature for easy insertion and removal from the female disconnect.

Material: 99.9% electrolytic copper / insulation options PVC, PC, Nylon
Operating Temperature: 80°C (determined by the insulation material)
Voltage Withstand: copper brass 300V
Flammability: UL-94 V0
Surface: Tin-plated
RoHS, REACH certified products

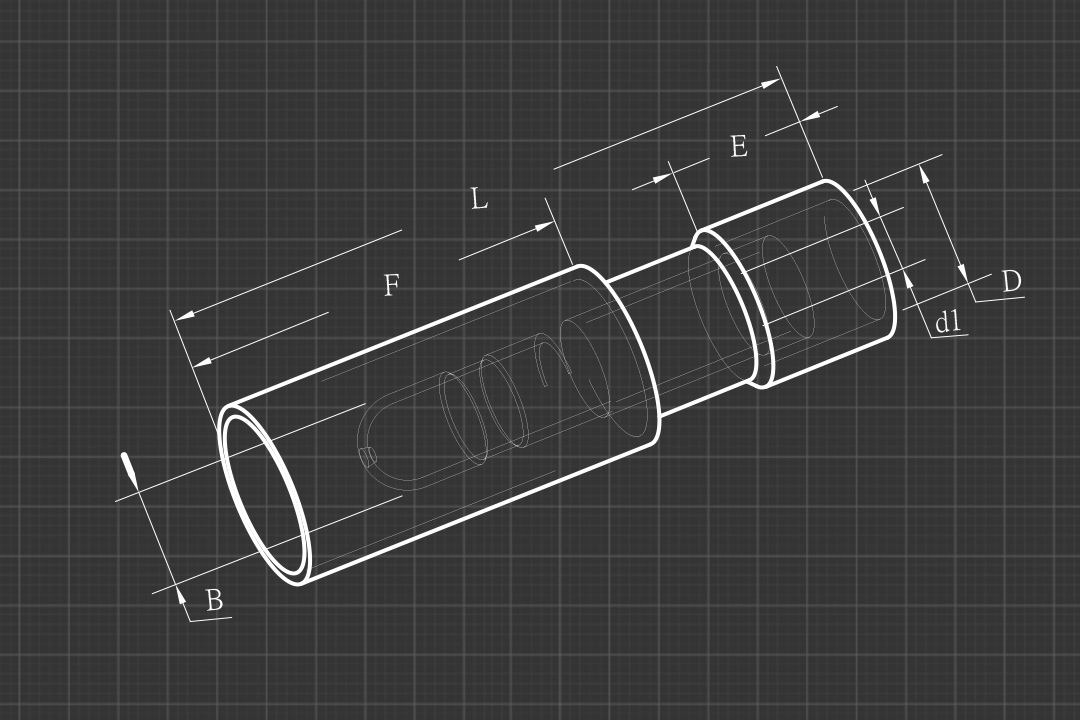

Item No. Wire Range
AWG/mm²		 b L F E D d1
LNG1-4FC 22~16 AWG
0.5~1.5mm²		 .152 (3.86) .906 (23.0) .335 (8.5) .413 (10.5) .157 (4.0) .075(1.9)
LNG1-4MC 22~16 AWG
0.5~1.5mm²		 .152(3.86) .906(23.0) .335(8.5) .413(10.5) .157(4.0) .075(1.9)
LNG2-4FC 16~14 AWG
1.5~2.5mm²		 .152 (3.86) .906 (23.0) .335 (8.5) .413 (10.5) .197(5.0) .102(2.6)
LNG2-4MC 16~14 AWG
1.5~2.5mm²		 .152(3.86) .906(23.0) .335(8.5) .413(10.5) .177(4.5) .102(2.6)
