Cord-End Terminals

Twin Type

Available in French and German color ranges. Ideal to reinforce the fine wire strands when terminating multiple cables into a connector block. Suitable for Tri-rated cables and are in accordance with DIN 46288 Part 4.

Application
Ideal to reinforce the fine wire strands when terminating multiple cables into a connector block.


Material: Tin Plated Electrolytic Copper, Halogen-Free Nylon
Service Temperature Range: -20˚C to +105˚C
Standards: DIN 46288 Part 4.
Approvals: UL Approved - E488241

Material: Copper
Plastic  : Nylon PA66
Surface: Tin plated
Flammability(UL-94): V2

Item No. Wire Range
AWG/mm²

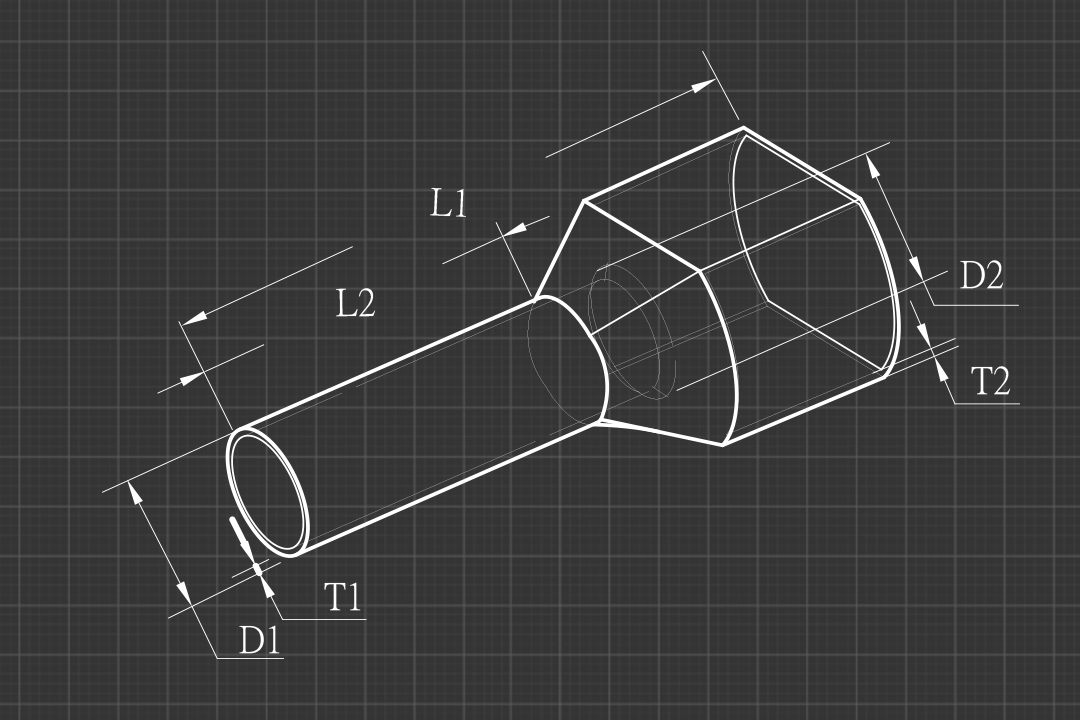

d1 d2 L1 L2 T1 T2 Color System
W T DIN
LT-005008X2 2X0.50 1.4 4.7 15 8 0.15 0.25 ORANGE WHITE WHITE
LT-007508X2 2X0.75 1.7 5 15 8 0.15 0.25 WHITE BLUE GRAY
LT-007510X2 2X0.75 1.7 5 17 10 0.15 0.25 WHITE BLUE GRAY
LT-010008X2 2X1.00 1.95 5.4 15 8 0.15 0.3 YELLOW RED RED
LT-010010X2 2X1.00 1.95 5.4 17 10 0.15 0.3 YELLOW RED RED
LT-015008X2 2X1.50 2.2 6.6 16 8 0.15 0.3 RED BLACK BLACK
LT-015012X2 2X1.50 2.2 6.6 20 12 0.15 0.3 RED BLACK BLACK
LT-025010X2 2X2.50 2.8 7.8 18.5 10 0.2 0.3 BLUE GRAY BLUE
LT-025013X2 2X2.50 2.8 7.8 21.5 13 0.2 0.3 BLUE GRAY BLUE
LT-040012X2 2X4.00 3.7 8.8 23 12 0.2 0.4 GRAY ORANGE GRAY
LT-060014X2 2X6.00 4.8 10 26 14 0.2 0.4 BLACK GREEN YELLOW
LT-100014X2 2X10.00 6.4 13 26 14 0.2 0.4 IVORY BROWN RED
LT-160014X2 2X16.00 8.2 18.4 30 14 0.2 0.4 GREEN IVORY BLUE
