Shear-Bolt Lug

All Products > Lugs > Shear-Bolt Lug > Shear-Bolt Lug

Shear-Bolt Lug

Shear-Bolt Lug
Shear-Bolt Lug
PreviousNext
123

Material: Aluminum Alloy
Surface: Tin plated

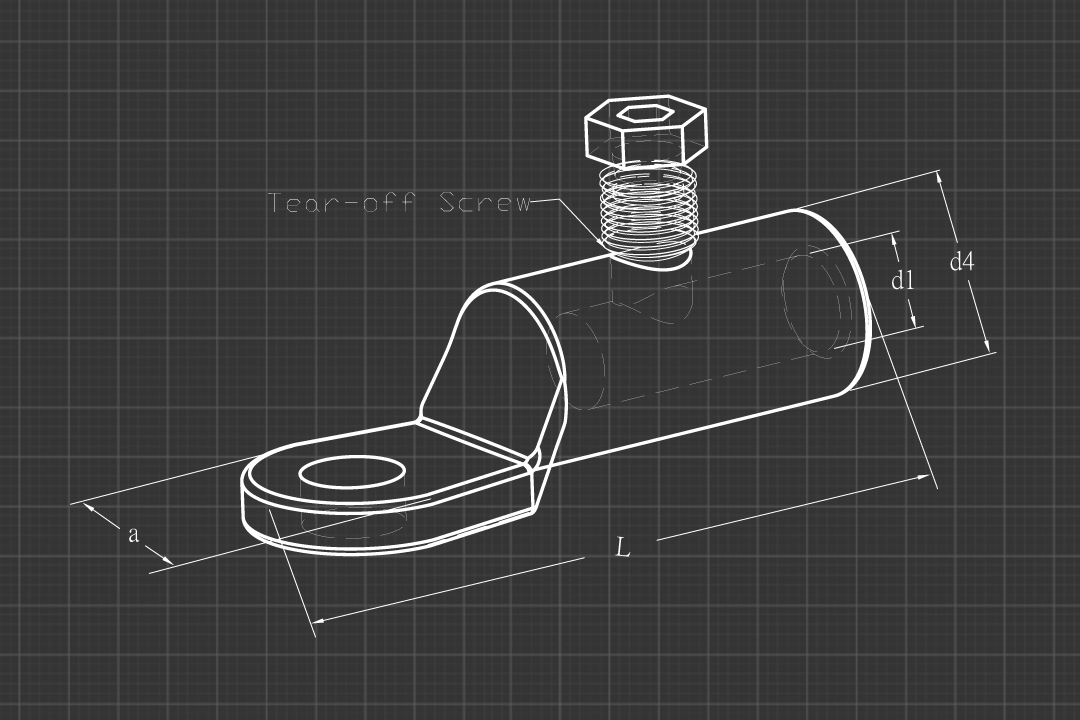

Item No. Conductor
Section		 Bolt Tear-off Screw d1 d4 a L
AL16-95-12 16-95 M12 1 12.5 24 30 60
AL50-150-12 50-150 M12 1 15.5 30 30 79
AL50-150-16 50-150 M16 2 15.5 30 30 79
AL95-240-12 95-240 M12 2 20 33 33 95
AL95-240-16 95-240 M16 2 20 33 33 95
AL120-300-12 120-300 M12 2 25 38 38 100
AL120-300-16 120-300 M16 2 25 38 38 100
AL185-400-12 185-400 M12 3 26 42 42 115
AL185-400-16 185-400 M16 3 26 42 42 115
