Cable Gland

cable gland
cable gland
PreviousNext
123

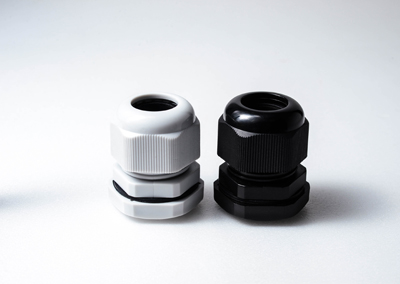

Being a Taiwan nylon cable gland manufacturer, we offer nylon glands that are used to attach and secure cables to equipment, providing strain relief and protection against dust and moisture. Our nylon cable glands are engineered for robustness and reliability, making them suitable for a wide range of industrial environments.

Features:
Material: Nylon PA
Operating Temperature: -40℃ to 100℃
Flammability(UL94): V0
Ingress Protection: IP68/IP69K (the wire/cable is in clamping range, and assemble O-Ring on the groove)
Color: grey, black

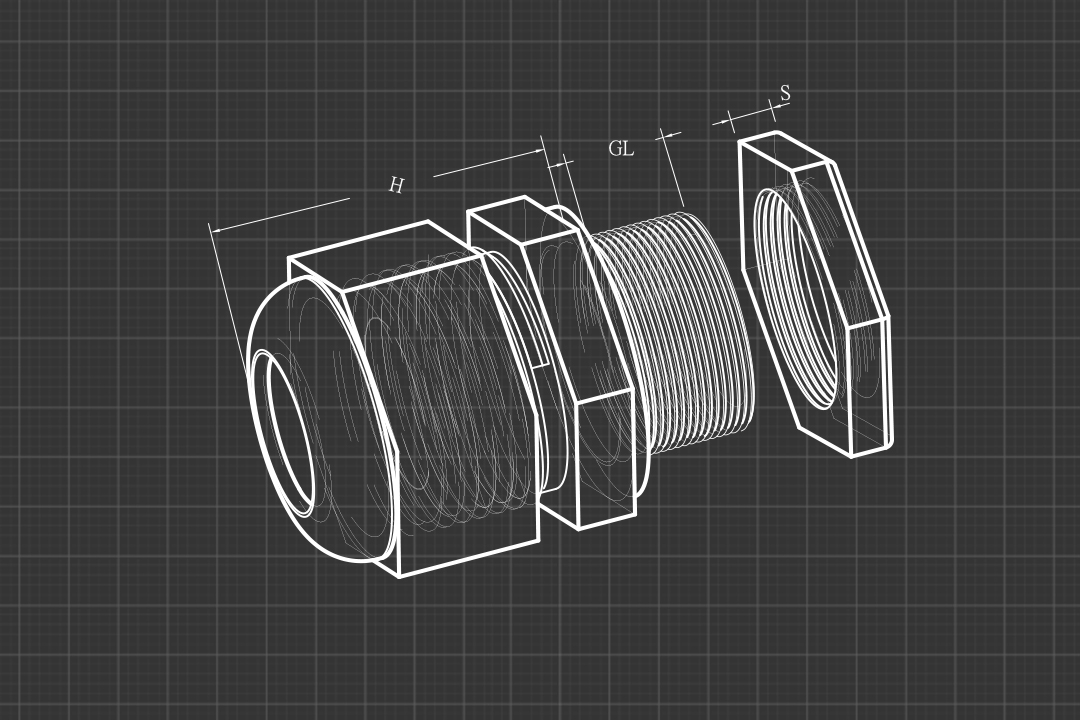

Item No. Type Cable Range GL H Wrench Standard
Packing		 Locking Nut Dimension
Part No. S D
5007 PG 7 3 - 6 8.1 21.7 15 100 6007 5.3 15
5009 PG 9 4 - 8 7.5 28.2 19 100 6009 5.6 19
5011 PG 11 4 - 8 7.9 26.2 22 100 6011 5.4 22
5013 PG 13.5 6 - 12 8.9 31.5 24 100 6013 6.4 24
5016 PG 16 8 - 14 9.3 31.7 27 100 6016 6.5 27
5021 PG 21 10 - 18 11 38.6 33 100 6021 7 33
5029 PG 29 16 - 25 11 41.5 42 50 6029 7 42
5036 PG 36 22 - 32 14 51 54 20 6036 9 54
5042 PG 42 28 - 38 14.5 54 59 20 6042 9 59
5048 PG 48 36 - 44 15.5 54 64 20 6048 9 64
Item No. Type Cable Range GL H Wrench Standard
Packing		 Locking Nut Dimension
Part No. S D
5007M M12 4 - 7 11 23.7 15 100 6007M 5.3 15
5009M M16 5 - 10 11 27.2 22 100 6009M 5.4 22
5013M M20 6 - 13 12 33.8 27 100 6013M 6.5 29
5016M M25 10 - 17 12 39.6 33 100 6016M 7 33
5018M M32 14 - 21 14 43.1 42 50 6018M 7 42
5020M M40 19 - 28 14 51 54 20 6020M 9 54
5022M M50 23 - 35 16 54 59 20 6022M 9 59
5024M M63 32 - 48 17 59 68 20 6024M 9 68
Item No. Type Cable Range GL H Wrench Standard
Packing
5009N 3/8" 4 - 8 14.5 28 22 100
5013N 1/2" 6 - 12 12.9 31.5 24 100
5021N 3/4" 13 - 18 15.1 38.7 33 100
5029N 1" 18 - 25 16 40 41 50
5036N 1 1/2" 22 - 32 15 48 52/53 20
