Pre-Insulated Terminals

All Products > Cord-End Terminals > Pre-Insulated Type

Pre-Insulated Type

Pre-Insulated Terminals, also known as Wire Ferrules or Bootlace, are designed to reinforce fine wire strands during cable termination, providing secure and reliable connections in connector blocks.

Dimensions to DIN 46228. Part 4

Materials: 99.9% electrolytic copper, Nylon PA66
Operating Temperature: -20°C to +105°C.
Flammability: UL-94 V2
UL Approved (E488241, E182951), RoHS compliant

Preinsulated

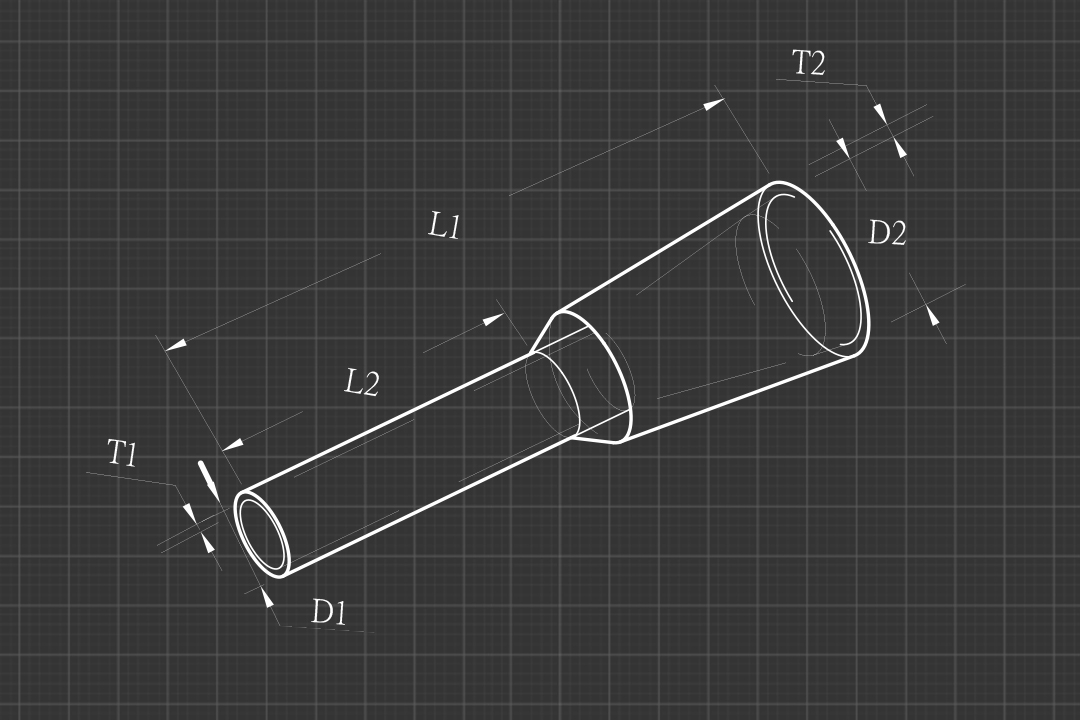

Item No.	Wire Range AWG/mm²	d1	d2	L1	L2	T1	T2	Color System
Item No.	Wire Range AWG/mm²	d1	d2	L1	L2	T1	T2	W	T	DIN
LT-001406	26AWG 0.14mm²	0.7	1.6	10	6	0.15	0.25	GRAY	GRAY
LT-001408	26AWG 0.14mm²	0.7	1.6	12	8	0.15	0.25	GRAY	GRAY
LT-002506	26AWG 0.25mm²	0.75	1.9	10	6	0.15	0.25	LIGHT BLUE	VIOLET
LT-002508	26AWG 0.25mm²	0.75	1.9	12	8	0.15	0.25	LIGHT BLUE	VIOLET
LT-003406	24AWG 0.34mm²	0.8	1.9	10	6	0.15	0.25	TURQUOISE	PINK
LT-003408	24AWG 0.34mm²	0.8	1.9	12	8	0.15	0.25	TURQUOISE	PINK
LT-005005	22AWG 0.5mm²	1	2.6	11	5	0.15	0.25	ORANGE	WHITE	WHITE
LT-005006	22AWG 0.5mm²	1	2.6	12	6	0.15	0.25	ORANGE	WHITE	WHITE
LT-005008	22AWG 0.5mm²	1	2.6	14	8	0.15	0.25	ORANGE	WHITE	WHITE
LT-005010	22AWG 0.5mm²	1	2.6	16	10	0.15	0.25	ORANGE	WHITE	WHITE
LT-007506	20AWG 0.75mm²	1.2	2.8	12	6	0.15	0.25	WHITE	BLUE	GRAY
LT-007508	20AWG 0.75mm²	1.2	2.8	14	8	0.15	0.25	WHITE	BLUE	GRAY
LT-007510	20AWG 0.75mm²	1.2	2.8	16	10	0.15	0.25	WHITE	BLUE	GRAY
LT-007512	20AWG 0.75mm²	1.2	2.8	18	12	0.15	0.25	WHITE	BLUE	GRAY
LT-010006	18AWG 1mm²	1.4	3	12	6	0.15	0.25	YELLOW	RED	RED
LT-010008	18AWG 1mm²	1.4	3	14	8	0.15	0.25	YELLOW	RED	RED
LT-010010	18AWG 1mm²	1.4	3	16	10	0.15	0.25	YELLOW	RED	RED
LT-010012	18AWG 1mm²	1.4	3	18	12	0.15	0.25	YELLOW	RED	RED
LT-015008	16AWG 1.5mm²	1.7	3.5	14	8	0.15	0.25	RED	BLACK	BLACK
LT-015010	16AWG 1.5mm²	1.7	3.5	16	10	0.15	0.25	RED	BLACK	BLACK
LT-015012	16AWG 1.5mm²	1.7	3.5	18	12	0.15	0.25	RED	BLACK	BLACK
LT-015018	16AWG 1.5mm²	1.7	3.5	24	18	0.15	0.25	RED	BLACK	BLACK
LT-025008	14AWG 2.5mm²	2.2	4.2	14	8	0.15	0.25	BLUE	GRAY	BLUE
LT-025010	14AWG 2.5mm²	2.2	4.2	16	10	0.15	0.25	BLUE	GRAY	BLUE
LT-025012	14AWG 2.5mm²	2.2	4.2	18	12	0.15	0.25	BLUE	GRAY	BLUE
LT-025018	14AWG 2.5mm²	2.2	4.2	24	18	0.15	0.25	BLUE	GRAY	BLUE
LT-040010	12AWG 4mm²	2.8	4.8	17	10	0.2	0.3	GRAY	ORANGE	GRAY
LT-040012	12AWG 4mm²	2.8	4.8	20	12	0.2	0.3	GRAY	ORANGE	GRAY
LT-040018	12AWG 4mm²	2.8	4.8	26	18	0.2	0.3	GRAY	ORANGE	GRAY
LT-060012	10AWG 6mm²	3.5	6.3	20	12	0.2	0.3	BLACK	GREEN	YELLOW
LT-060018	10AWG 6mm²	3.5	6.3	26	18	0.2	0.3	BLACK	GREEN	YELLOW
LT-100012	8AWG 10mm²	4.5	7.6	22	12	0.2	0.4	IVORY	BROWN	RED
LT-100018	8AWG 10mm²	4.5	7.6	28	18	0.2	0.4	IVORY	BROWN	RED
LT-160012	6AWG 16mm²	5.8	8.8	24	12	0.2	0.4	GREEN	IVORY	BLUE
LT-160018	6AWG 16mm²	5.8	8.8	28	18	0.2	0.4	GREEN	IVORY	BLUE
LT-250016	4AWG 25mm²	7.3	11.2	30	16	0.2	0.4	BROWN	BLACK	YELLOW
LT-250018	4AWG 25mm²	7.3	11.2	32	18	0.2	0.4	BROWN	BLACK	YELLOW
LT-250022	4AWG 25mm²	7.3	11.2	35	22	0.2	0.4	BROWN	BLACK	YELLOW
LT-350016	2AWG 35mm²	8.3	12.7	30	16	0.2	0.4	BEIGE	RED	RED
LT-350018	2AWG 35mm²	8.3	12.7	32	18	0.2	0.4	BEIGE	RED	RED
LT-350025	2AWG 35mm²	8.3	12.7	39	25	0.2	0.4	BEIGE	RED	RED
LT-500020	1/0AWG 50mm²	10.3	15	36	20	0.3	0.7	OLIVE	BLUE	BLUE
LT-500025	1/0AWG 50mm²	10.5	15	40	25	0.3	0.7	OLIVE	BLUE	BLUE
LT-700021	2/0AWGAWG 70mm²	13.5	16	37	21	0.4	0.6			YELLOW
LT-950025	3/0AWG 95mm²	14.7	18	44	25	0.4	0.6			RED
LT-120027	4/0AWG 120mm²	16.7	20	48	27	0.45	0.7			BLUE
LT-150032	150mm²	19.5	23	58	32	0.5	1			YELLOW
